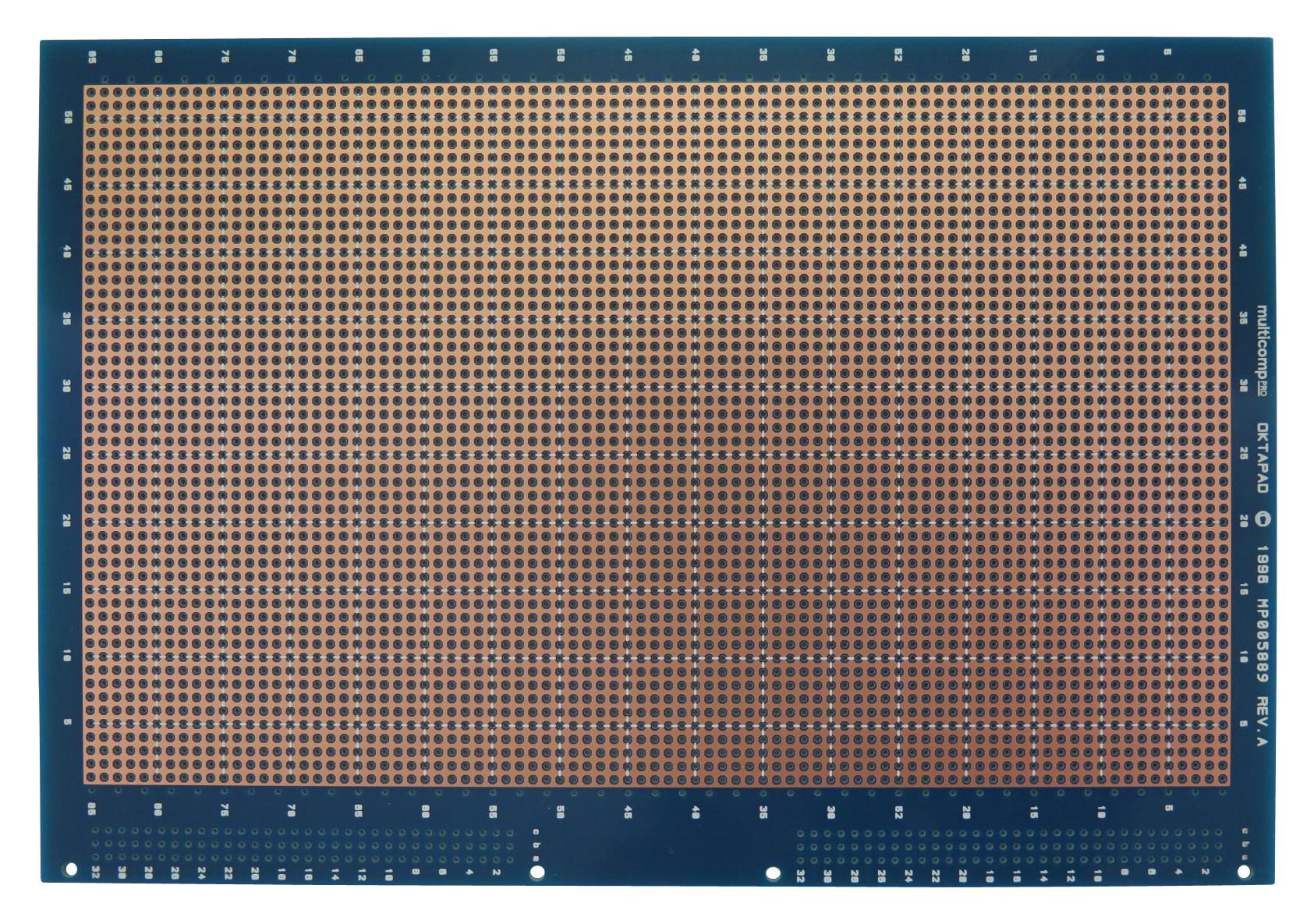

MULTICOMP PRO MP005889 Eurocard Prototyping Circuit Board
This series of general-purpose prototyping Eurocard circuit boards includes single, double-sided, and extended Eurocards, designed for flexible applications with various wiring techniques like wire wrapping or discrete components. These 6U double-sided boards feature a colander ground plane for maximum screening, octagonal pads for improved soldering, and clear silk screen references for easy component placement. Made from epoxy glass or FR4 with a copper thickness of 1 oz/ft², they support DIN 41612 connector mounting holes and have a hole matrix of 2.54mm, making them ideal for versatile prototyping and circuit development.
MULTICOMP PRO MP005889 Eurocard Prototyping Circuit Board Specifications:
- Board Size: 160mm x 223.4mm (6U Eurocard)
- Material: Epoxy glass or FR4
- Board Thickness: 1.6mm
- Copper Thickness: 1 oz/ft² (35 microns, 305 g/m²)
- Hole Matrix: 2.54mm x 2.54mm
- Hole Size: 1.02mm
- Copper Plating: Organic solderability preservatives (OSP)
- Features: Colander ground plane, octagonal pads, silk screen references
- Connector Mounting Holes: 32/64/96 way DIN 41612
- Application: General purpose prototyping, wiring or wire wrapping
Buy the Buy Multicomp Pro Eurocard Circuit Board Part Number MP005889 Online
Order the Multicomp Pro Eurocard Prototyping Circuit Board MP005889 online and enjoy exceptional flexibility and performance for your circuit development projects. Designed with a colander ground plane, octagonal pads, and DIN connector mounting holes, this double-sided 6U Eurocard provides maximum screening and easy wiring options. Its epoxy glass or FR4 material offers durability, while the copper plating ensures reliable connections. Ideal for general-purpose prototyping, it supports wire wrapping or discrete component wiring, making it the perfect choice for engineers and hobbyists alike.
Buy Multicomp Pro MP005889 now and experience versatile, high-quality prototyping with maximum screening and easy component placement.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP005889?
You can click on the BUY or RFQ button to purchase MP005889 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP005889?
You can download the MP005889 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP005889?
MULTICOMP PRO
