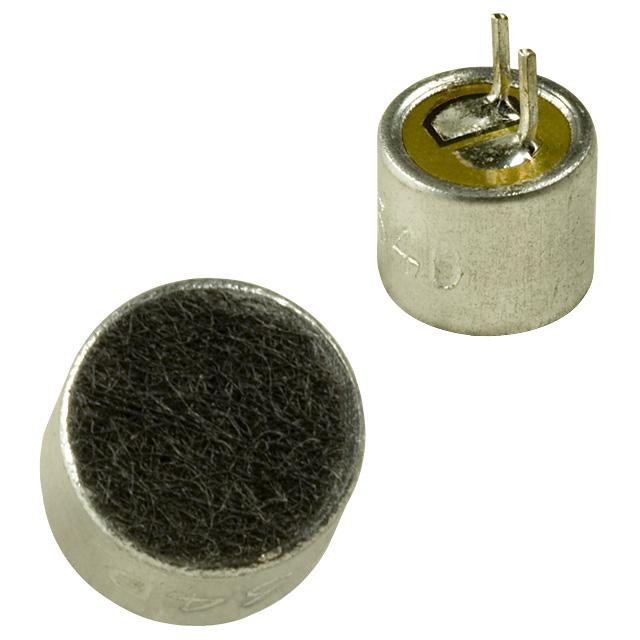

MULTICOMP PRO MCKPCM40H15P40DB4798 Omnidirectional Electret Microphone
The MCKPCM-40H15P-40DB-4798 is an omnidirectional electret microphone with a durable aluminum shell, ideal for various audio and recording applications. It offers a frequency response range of 100Hz to 16,000Hz, sensitivity of -40dB, and a high signal-to-noise ratio of over 60dB, ensuring clear sound pickup. The microphone operates efficiently within a temperature range of -25°C to +55°C, with a maximum current consumption of 0.5mA. Its compact design makes it versatile for professional and consumer audio equipment, providing consistent performance in demanding environments.
MULTICOMP PRO MCKPCM40H15P40DB4798 Omnidirectional Electret Microphone Specifications:
- Rated Voltage: 2V
- Operating Voltage: 2V to 10V
- Sensitivity: -40dB at 1kHz
- Current Consumption: 0.5mA Max.
- Frequency Range: 100Hz to 16,000Hz
- S/N Ratio: 60dB+
- Sensitivity Reduction: Within -3dB at 1.5V
- Directivity: Omnidirectional
- Shell Material/Color: Aluminum/Silver
- Operating Temperature: -25°C to +55°C
- Store Temperature: -25°C to +55°C
- Weight: 0.1g
- Type: Omnidirectional Electret Microphone
- Certifications: RoHS Compliant
Buy the Multicomp Series Microphone: MCKPCM-40H15P-40DB-4798
Purchase the Multicomp Microphone MCKPCM-40H15P-40DB-4798 online now for reliable, high-quality audio performance. Designed with an aluminum shell, this omnidirectional microphone ensures clear sound capture with a broad frequency response of 100Hz to 16,000Hz. It features a sensitivity of -40dB and a signal-to-noise ratio exceeding 60dB, making it suitable for both professional and consumer audio applications. Its compact form, RoHS compliance, and operating temperature range of -25°C to +55°C offer durability and versatility for various environments. Order now for optimal audio clarity and performance.
Get Multicomp Microphone MCKPCM-40H15P-40DB-4798 today—built for precision and long-lasting durability in professional audio setups.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCKPCM40H15P40DB4798?
You can click on the BUY or RFQ button to purchase MCKPCM40H15P40DB4798 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCKPCM40H15P40DB4798?
You can download the MCKPCM40H15P40DB4798 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCKPCM40H15P40DB4798?
MULTICOMP PRO
