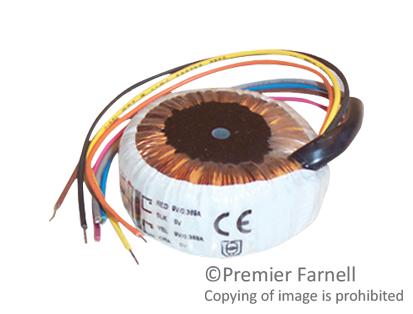

MULTICOMP PRO MCFM3215 Toroidal Transformer
The Multicomp MCFM series features miniature open-style toroidal transformers suitable for low-power electronics. With high-quality construction, they have a single primary winding tapped for 115V and 230V AC at 50/60Hz, and dual secondary windings that can be connected in series or parallel or used independently. They operate up to 40°C ambient temperature with efficiency up to 80%. The resin-filled center includes a clear M4 mounting hole, and flexible leads can be trimmed without enamel removal. These transformers are designed and tested per EN60742, EN60065, and EN60950 standards, ensuring reliable performance in power supply applications.
MULTICOMP PRO MCFM3215 Toroidal Transformer Specifications:
- Power Ratings: 1.6VA to 7.0VA
- Primary Voltage: Tapped at 115V and 230V AC
- Secondary Voltage: Varies (e.g., 7V, 9V, 12V, 15V, 18V, 22V)
- Efficiency: Up to 80%
- Ambient Temperature: Maximum 40°C
- Dimensions: Diameter varies from 42mm to 51mm, Height from 23mm to 24mm
- Lead Length: 150mm, stripped and tinned
- Construction: Resin-filled center with M4 mounting hole
- Standards: EN60742, EN60065, EN60950
- Testing: 100% electrical and flash tested
Buy the Multicomp Series Toroidal Transformer: MCFM3215
Purchase the reliable Multicomp Toroidal Transformer online today to power your electronic projects efficiently. Designed with dual secondary windings and high efficiency, this transformer provides stable voltage conversion and flexible wiring options. Its compact, open-style design features a resin-filled center with an M4 mounting hole, making installation easy. Suitable for low-power applications, it conforms to global safety standards EN60742, EN60065, and EN60950. Order now and enjoy fast delivery, secure checkout, and the peace of mind that comes with quality power components.
Order your Multicomp Series Toroidal Transformer MCFM3215 today and ensure reliable power delivery for your sensitive electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCFM3215?
You can click on the BUY or RFQ button to purchase MCFM3215 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCFM3215?
You can download the MCFM3215 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCFM3215?
MULTICOMP PRO
