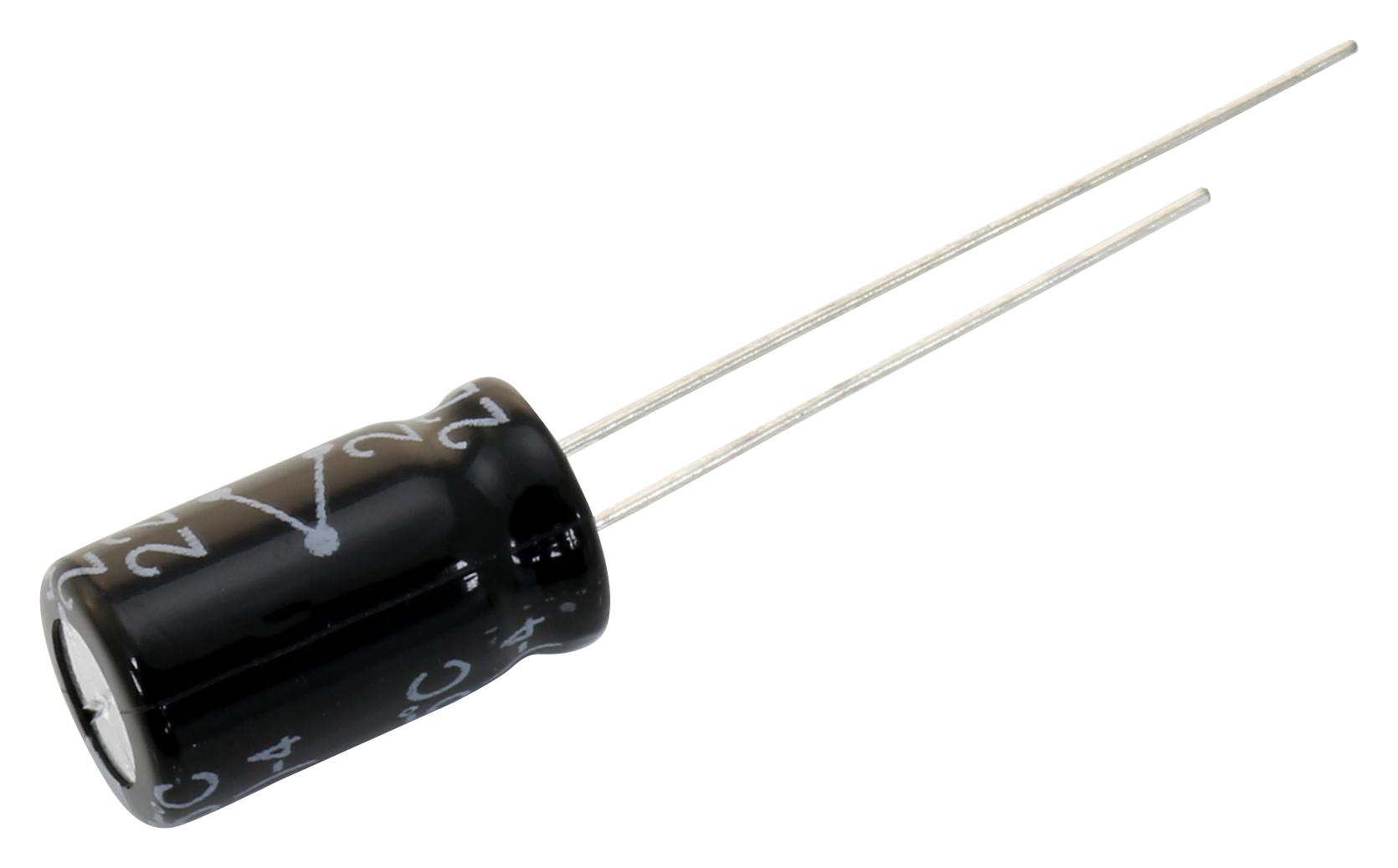

MULTICOMP PRO MCGLR35V476M63X11 Aluminum Electrolytic Capacitor
This is a 47µF, 35V radial lead aluminum electrolytic capacitor with dimensions of 6.3 x 11 mm. It offers low ESR and high reliability, making it suitable for switching power supplies and automotive electronics. Designed to operate from -55°C to +105°C, it guarantees stable performance under various conditions, with a maximum ripple current of 45mA rms at 100kHz. The capacitor endures high temperature loading, ensures a shelf life of at least 1000 hours at +105°C, and withstands circuit-board cleaning processes. Its low impedance design improves circuit efficiency and longevity, ideally suited for demanding electronic applications.
MULTICOMP PRO MCGLR35V476M63X11 Aluminum Electrolytic Capacitor Specifications:
- Material: Aluminium
- Operating Temperature Range: -55°C to +105°C
- Rated Working Voltage Range: 6.3V to 100V DC
- Nominal Capacitance Range: 0.47uF to 4,700uF
- Capacitance Tolerance: +20% (at +20°C, 120Hz)
- Leakage Current: Application of rated working voltage at +20°C
- Dissipation Factor (tan δ) max. at working voltages: 6.3V (0.18), 10V (0.12), 16V (0.1), 25V (0.08), 35V (0.07), 50V (0.06), 63V (0.05), 100V (0.05)
- Maximum Ripple Current: 45mA rms at 100kHz, +105°C
- Dimensions: 6.3 x 11 mm, radial lead
- Voltage Ratings: 35V
- Reliability: 2,000 hours at 105°C
- Special Features: Low ESR, suitable for switching power and automotive electronics, solvent proof, withstands circuit-board cleaning
Buy the ACME Series MCGLR 47uF 35V Capacitor: MCGLR35V476M63X11
Purchase the ACME Series MCGLR 47uF 35V aluminum electrolytic capacitor online today and enjoy high reliability, low ESR, and excellent performance in your electronic circuits. With a compact 6.3 x 11 mm size and operating range from -55°C to +105°C, this capacitor is ideal for switching power supplies, automotive electronics, and other demanding applications. It guarantees a long service life of 2,000 hours at 105°C, withstands circuit-board cleaning, and features a low dissipation factor, ensuring efficient energy storage, minimal heat generation, and high stability for your projects.
Order your ACME Series MCGLR 47uF 35V aluminum electrolytic capacitor today and ensure reliable power filtering for demanding electronic projects.
