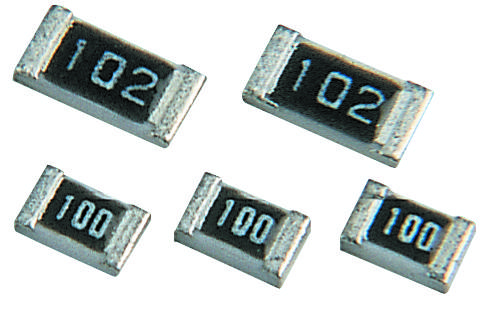

MULTICOMP PRO MCHP06W2F8200T5E Thick Film Resistor
The Multicomp Pro HP06 series are high-power surface-mount thick film resistors in the standard 1206 size. They support resistance ranges from 1 ohm up to 10 megaohms, with features suitable for both wave and reflow soldering processes. These resistors offer ±1% and ±5% tolerances, power ratings of 0.5W, and maximum working voltages of 200V. They have stable temperature coefficients of ±200 ppm/°C for low resistance and ±100 ppm/°C for higher values. Designed for reliable performance in various applications, their durable construction ensures excellent electrical stability and broad temperature operation from -55°C to +155°C.
MULTICOMP PRO MCHP06W2F8200T5E Thick Film Resistor Specifications:
- Size: 1206
- Resistance range: 1Ω to 10MΩ
- Power Rating: 0.5W
- Maximum Voltage: 200V
- Tolerance: ±1% or ±5%
- Temperature Coefficient: ±200 ppm/°C (1Ω to 10Ω), ±100 ppm/°C (11Ω to 10MΩ)
- Operating Temperature: -55°C to +155°C
- RoHS Compliant
- Soldering Method: Wave and reflow
- Material: Thick film resistive element on alumina substrate
- Terminations: Inner Ag, Middle Ni, Outer Sn
- Dimensions: Length 3.14mm, Width 1.55mm, Height 0.55mm
- Marking: Resistance value and tolerance code
- Features: RoHS compliant, high stability, wide resistance range, suitable for precision applications
Buy the Multicomp Series HP06 Thick Film Resistor: MCHP06W2F8200T5E
Enhance your electronic designs with high-quality thick film resistors from the Multicomp Pro HP06 series. These surface-mount resistors feature resistance values from 1 ohm to 10 megaohms, with ±1% and ±5% tolerances, ensuring precise performance. Rated at 0.5 watts, they support high voltage operation up to 200V and are suitable for both wave and reflow soldering. Their durable construction guarantees stability across a wide temperature range from -55°C to +155°C, making them ideal for demanding industrial, commercial, and consumer electronics applications. Purchase online today for reliable performance.
Buy Multicomp Series HP06 resistors, including MCHP06W2F8200T5E, now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCHP06W2F8200T5E?
You can click on the BUY or RFQ button to purchase MCHP06W2F8200T5E from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCHP06W2F8200T5E?
You can download the MCHP06W2F8200T5E datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCHP06W2F8200T5E?
MULTICOMP PRO
