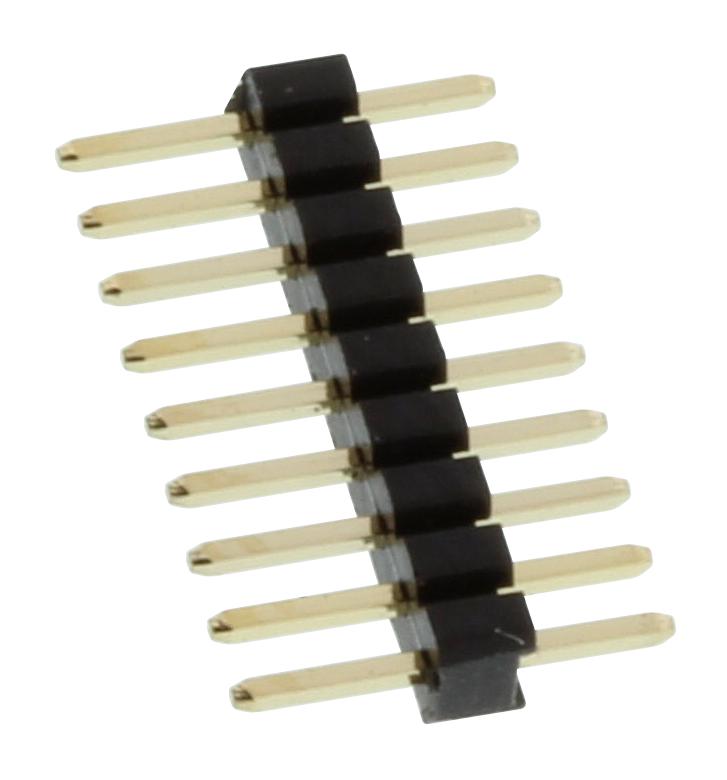

MULTICOMP PRO MCHVT1S09G Pin Header
This 1.27mm pin header features a single row, vertical through-hole design suitable for compact electronic applications. Made with high-temperature nylon (UL94V-0), it offers reliable operation with a current rating of 1A AC/DC and a voltage rating of 50V. The contact is a gold-plated copper alloy ensuring excellent conductivity and corrosion resistance. Withstanding voltage of 500V for one minute and operating temperature range from -25°C to +105°C, it is RoHS compliant and ideal for PCB connections in automation, control panels, and consumer electronics.
MULTICOMP PRO MCHVT1S09G Pin Header Specifications:
- Current Rating: 1A AC/DC
- Voltage Rating: 50V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 500V for one minute
- Operating Temperature Range: -25°C to +105°C
- Material: High-temp plastic (Nylon 9T UL94V-0)
- Insulator Colour: Black
- Contact Material: Copper Alloy
- Contact Plating: Gold Plated
- Dimensions: 1.27mm pitch, approximately 0.70mm contact width, PCB layout conforms to millimetre specifications
- RoHS Compliant
Buy the Multicomp Series 1.27mm Pin Header: MCHVT1S09G
Enhance your electronic projects with this high-quality 1.27mm pin header, featuring a vertical single row design with gold-plated contacts for optimal conductivity. Crafted from high-temperature nylon (UL94V-0), it ensures durability and reliable performance in various environments. Rated for 1A current and 50V voltage, with a withstand voltage of 500V for one minute, this RoHS-compliant connector is perfect for PCB assembly, automation, and control systems. Easy to install and highly durable, it is available now for immediate purchase online.
Get Multicomp Series 1.27mm Pin Header MCHVT1S09G today—built for precise PCB connections and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCHVT1S09G?
You can click on the BUY or RFQ button to purchase MCHVT1S09G from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCHVT1S09G?
You can download the MCHVT1S09G datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCHVT1S09G?
MULTICOMP PRO
