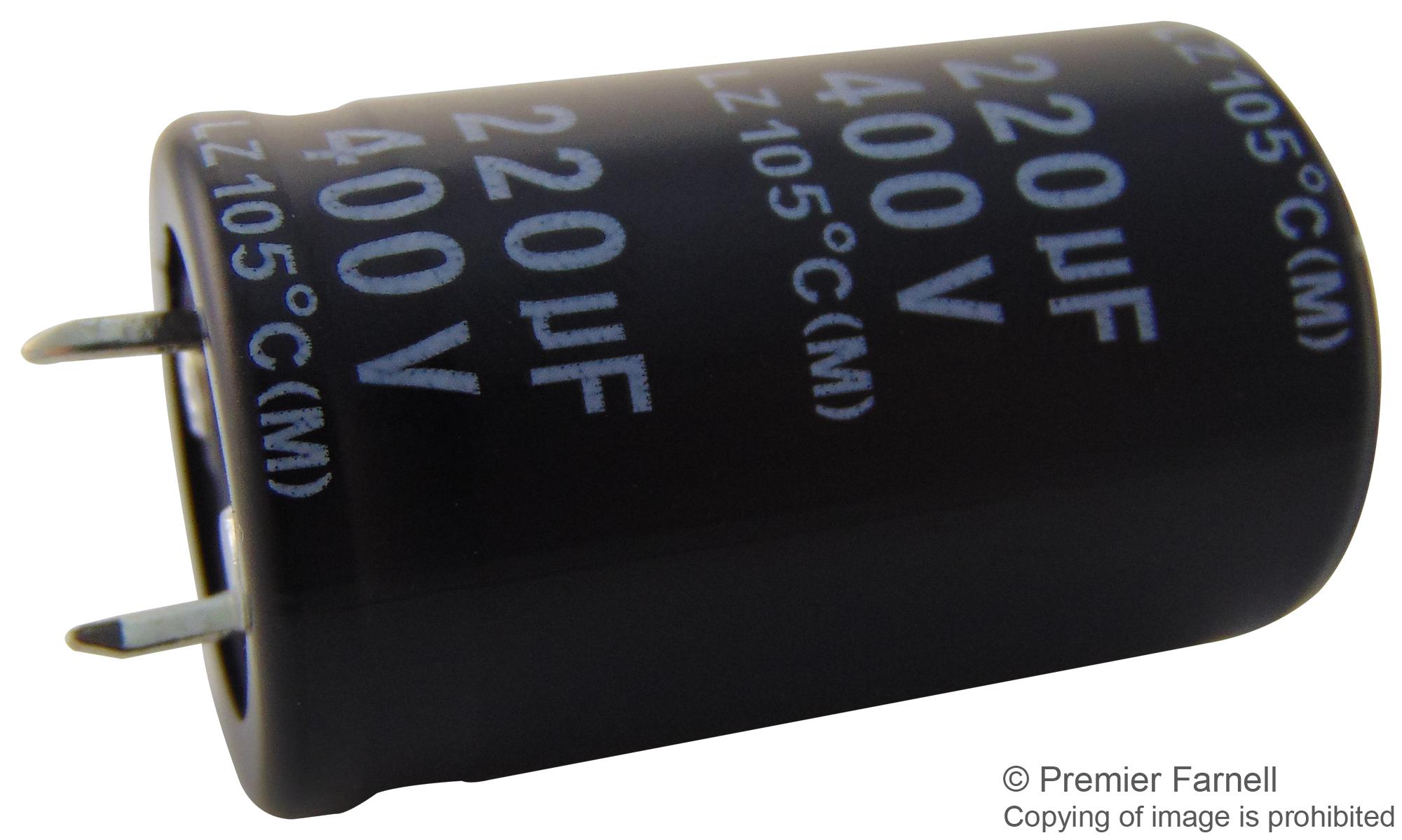

MULTICOMP-PRO MCKLZ400M221N40Y Electrolytic Capacitor
This high-temperature aluminium electrolytic capacitor is designed for reliable operation at 105°C, offering a capacitance of 220uF with +20% tolerance. It features snap-in mounting, rated voltages up to 400V, and is suitable for power filtering and industrial applications. The capacitor boasts low leakage current, excellent ripple resistance, and long shelf life, making it an ideal choice for demanding electronic equipment, providing stability and durability in power supply circuits, and electronic filters with excellent thermal stability.
MULTICOMP-PRO MCKLZ400M221N40Y Electrolytic Capacitor Specifications:
- Capacitance: 220uF
- Tolerance: +20% (120Hz, 20°C)
- Operating Temperature Range: -40°C to +105°C
- Rated Voltage Range: 400V
- Leakage Current: | = 3VCV or 3000 μA (after 5 minutes)
- Dissipation Factor: tan 8(Max) 0.45 at rated voltage, measurement frequency 120Hz
- Impedance Ratio: Z(-25°C)/Z(20°C) max 8, Z(-40°C)/Z(20°C) max 16
- Shelf Life: Capacitance change within 15% after storage at -40°C for 240 hours
- Load Life: Capacitance within 20% of initial value after 2000 hours at 105°C
- Ripple Current: Rated for high ripple environments, temperature coefficient 25 2.2
- Physical Dimensions: 22mm x 40mm
- Certification: Complies with IEC standards for electrolytic capacitors
Buy the Multicomp 400V 220uF U+2013 Reliable Electrolytic Capacitor for Industrial Applications
Order the Multicomp electrolytic capacitor with 220uF capacitance at 400V today. Built for long-lasting performance, it offers high reliability, stability at high temperatures, and excellent ripple resistance suitable for power supplies and industrial electronics. Its snap-in design simplifies installation while providing exceptional thermal stability. Perfect for demanding electronic equipment requiring durable, high-performance components, this capacitor ensures efficient operation and long service life in power filtering, signal smoothing, and filtering applications. Buy online now for quick delivery and technical support.
Get Multicomp 400V 220uF capacitor today—designed for precision, durability, and stability in power filtering and electronic circuits.
