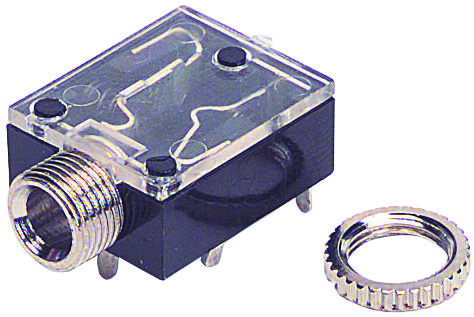

MULTICOMP PRO SPC21344 audio jack connector
The SPC21344 is a 3.5mm PCB mount RCA/phono vertical threaded audio jack with silver-plated brass contacts and a durable black PBT housing. It provides excellent electrical conductivity, low contact resistance of 30mΩ, and high insulation resistance of 100MΩ at 500V DC, ensuring reliable audio signals. Designed for robust use, it supports an operating life of 5000 cycles and withstands dielectric strength of 500V AC for 1 minute. Suitable for communication, networking, industrial, and signal processing applications, this connector guarantees dependable performance and ease of installation.
MULTICOMP PRO SPC21344 audio jack connector Specifications:
- Contact Resistance: 30mΩ maximum
- Insulation Resistance: 100MΩ minimum at 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Insertion Force: 20.3 to 2kg
- Withdrawal Force: 20.3 to 2kg
- Operating Life: 5000 Cycles
- Housing Material: PBT G15 - Black, UL94V-0
- Cover Material: PC - Transparent
- Bushing Material: Brass - Nickel Plated
- Sleeve, Ring Shunt, Tip Shunt, Ring Spring, Tip Spring: Brass - Tin Plated
- Connector Type: PCB Mount 3.5mm Audio Jack
- Dimensions: Millimetres
Buy the Multicomp 21344 – Reliable 3.5mm Audio Jack for Industrial Applications
Enhance your audio setup with the reliable multicomp 21344 3.5mm PCB mount audio jack, featuring silver-plated contacts and sturdy PBT housing. Ideal for industrial, networking, and signal processing environments, this connector ensures excellent electrical performance and long operational life. Its robust construction supports 5000 cycles and withstands high dielectric voltages, making it perfect for professional and hobbyist projects that demand dependable quality. Purchase online now for a seamless experience and premium audio connectivity tailored to your technical needs.
Buy Multicomp 21344 now and enjoy a durable 3.5mm audio connection suitable for industrial and communication projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SPC21344?
You can click on the BUY or RFQ button to purchase SPC21344 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SPC21344?
You can download the SPC21344 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SPC21344?
MULTICOMP PRO
