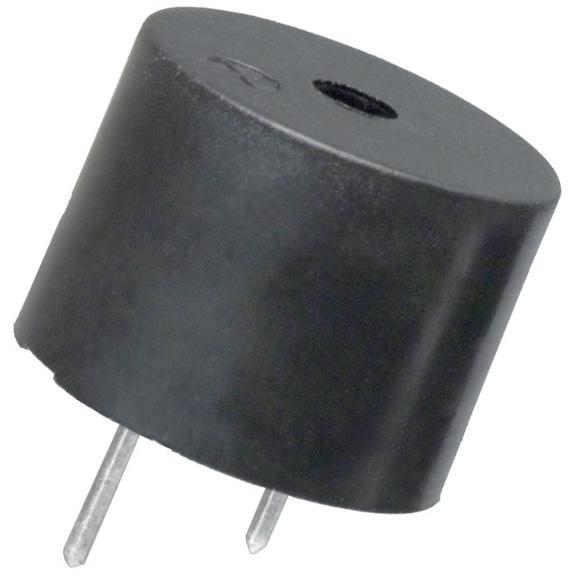

MULTICOMP PRO MCKPXG1205UBK4066 Magnetic Buzzer
This magnetic buzzer features a 5V DC rated voltage and operates between 4V to 8V DC, delivering an 85dB sound pressure level at 10cm. It has a resonant frequency of 2,300 +500Hz and a response time of 50ms, housed in a durable PBT shell colored black. It weighs 12 grams and is suitable for applications requiring reliable sound signaling, with operating temperatures from 20°C to 70°C and storage temperatures from 30°C to 80°C. Perfect for electronic signaling and alert systems in industrial and consumer electronics.
MULTICOMP PRO MCKPXG1205UBK4066 Magnetic Buzzer Specifications:
- Rated Voltage: 5V DC
- Operating Voltage: 4V DC to 8V DC
- Max. Rated Current: 30mA at 5V DC
- Min. Sound Pressure Level: 85dB at 10cm
- Resonant Frequency: 2,300 +500Hz
- Response Time: 50ms
- Shell Material / Colour: PBT / Black
- Operating Temperature: 20°C to +70°C
- Store Temperature: 30°C to +80°C
- Weight: 12g
- Dimensions: Not specified in mm
- RoHS Compliant: Yes
Buy the Multicomp Series Magnetic Buzzer: MCKPXG1205UBK4066
Enhance your electronic projects with this reliable magnetic buzzer. Designed for durability and clear sound output, it features a compact PBT shell, operates at 5V DC, and delivers 85dB sound level. Suitable for industrial, consumer, and alarm systems, it has a fast response time of 50ms and operates efficiently within temperatures from 20°C to 70°C. Easy to integrate into various applications, this RoHS-compliant buzzer is an excellent choice for signaling needs in complex electronic systems.
Get Multicomp Magnetic Buzzer MCKPXG1205UBK4066 today—built for reliable sound signaling and industrial applications.
