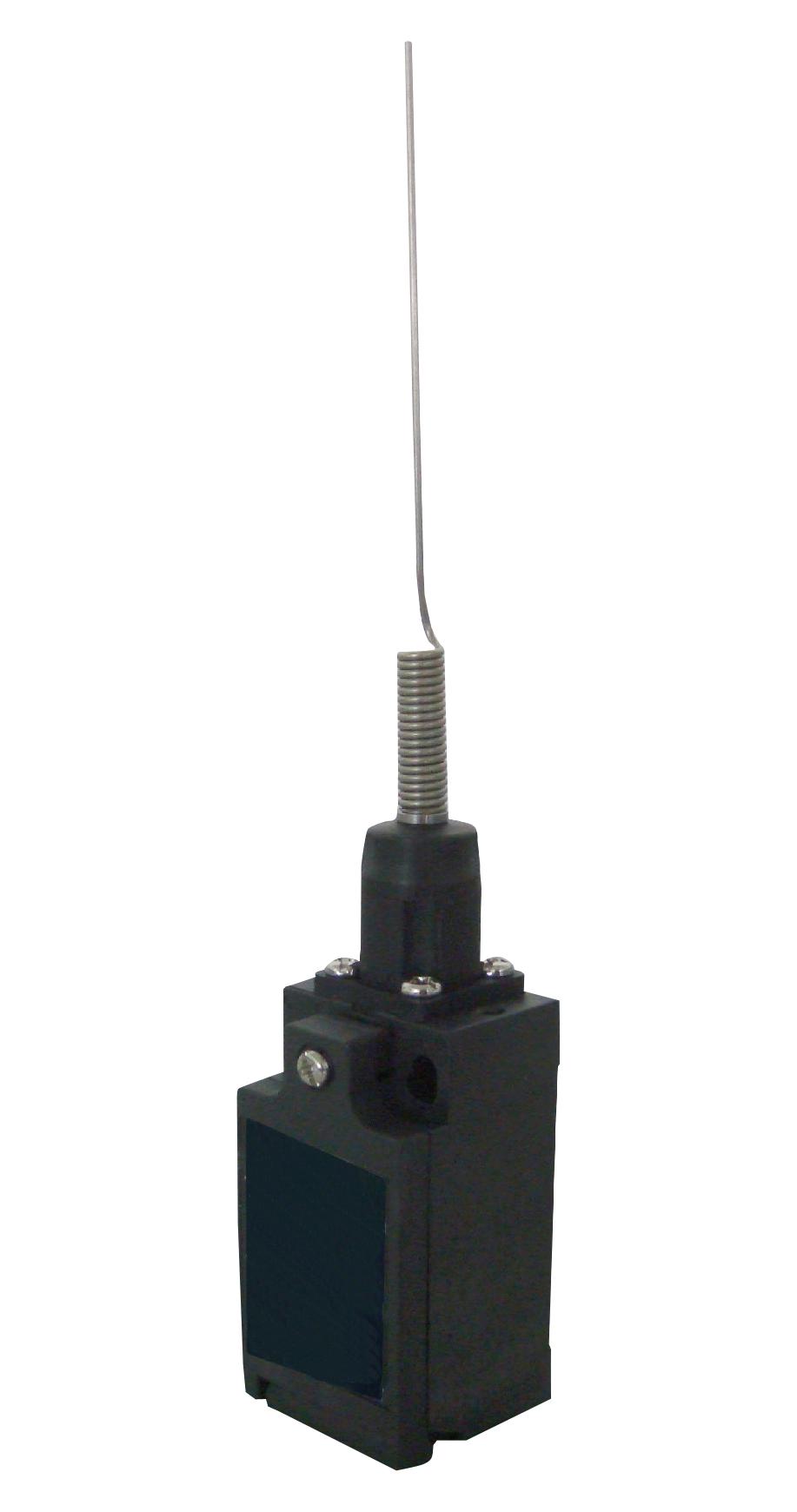

MULTICOMP PRO MC002455 Safety Limit Switch
The miniature safety limit switch is designed for precise position detection in safety applications. It conforms to EN115 and EN81-1 standards and is certified by UL, EN(TUV), and CCC. Featuring a degree of protection IP67, it supports AC-15 240V AC / 3A, and DC-13 250V DC / 10A ratings. With a mechanical durability of at least 15 million operations and electrical durability of 300,000 operations at resistive loads, it operates within 1 to 500 mm/s speed. Suitable for industrial automation, it’s built for reliability and long-term use in various environments.
MULTICOMP PRO MC002455 Safety Limit Switch Specifications:
- Degree of protection: IP67
- AC-15: 240V AC / 3A
- DC-13: 250V DC / 10A
- Mechanical durability: 15,000,000 operations min.
- Electrical durability: 300,000 operations min.
- Operating speed: 1 to 500 mm/s
- Operating frequency: 30 operations per minute max.
- Rated frequency: 50/60Hz
- Insulation resistance: 100MQ min.
- Contact resistance: 25mQ max.
- Dielectric strength: 4kV between current-carrying parts and ground
- Rated insulation voltage: 300V
- Ambient temperature: -30°C to +70°C
- Vibration resistance: 10-55Hz, 0.75mm amplitude
- Shock resistance: 300m/s² min.
- Humidity: up to 95% RH
- Weight: 71g
- Operation forces: 4.5N to 6.5N depending on model
- Travel: 2mm
- Standards: EN115, EN81-1, UL, CE, CCC
Buy the Buy Multicomp Safety Limit Switch Part Number MC002455 Online
Order the Multicomp safety limit switch MC002455 online today to ensure reliable position detection in your safety-critical applications. This high-quality switch features IP67 protection, supporting robust operation in harsh environments. Its excellent durability of over 15 million mechanical operations and 300,000 electrical cycles makes it perfect for industrial automation setups. With a compact design, it fits easily into your control panel or machinery, providing precise operation with minimal maintenance. Buy now for quality and long-term dependability at an affordable price.
Get Multicomp safety limit switch MC002455 today—designed for industrial safety and long-lasting durability in automation systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MC002455?
You can click on the BUY or RFQ button to purchase MC002455 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MC002455?
You can download the MC002455 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MC002455?
MULTICOMP PRO
