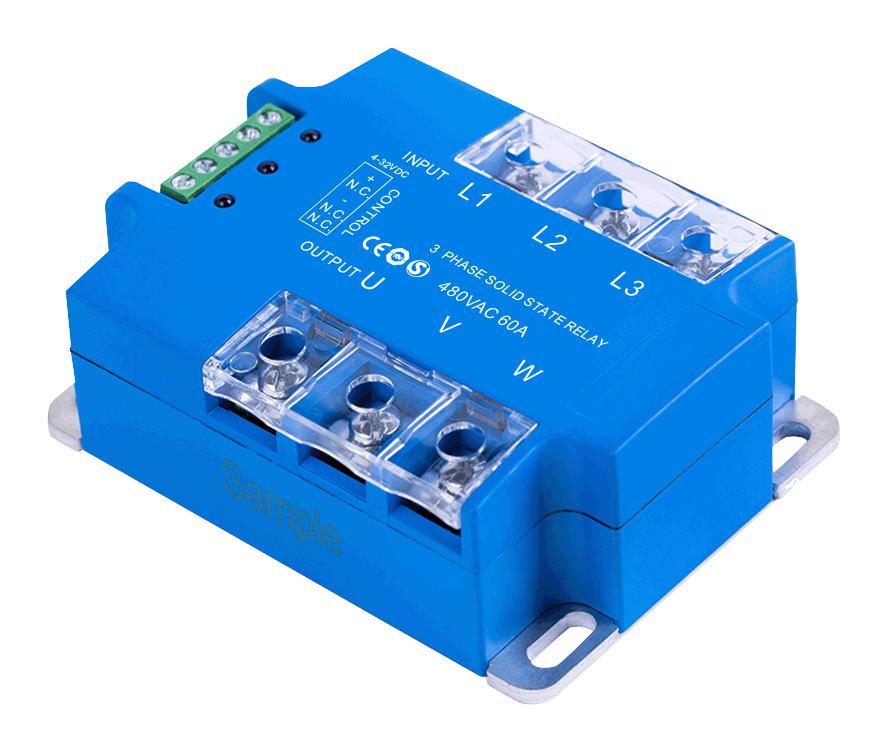

MULTICOMP-PRO MCKSQF480D60 Three-Phase AC Solid State Relay
This three-phase AC solid state relay features zero-crossing switching, SCR output, and high dielectric strength over 24,000Vrms. Control voltage is 4-32VDC, with load current ratings of 25A and 60A, and load voltage range from 124 to 530V AC. Suitable for motor control, kiln systems, and large ovens, it offers quick switching times, MOV protection, and robust insulation. Designed for reliable operation in industrial environments, it withstands temperature ranges from -30°C to +80°C and offers compact dimensions, making it ideal for demanding automation and industrial applications.
MULTICOMP-PRO MCKSQF480D60 Three-Phase AC Solid State Relay Specifications:
- Control Voltage Range: 4V DC to 32V DC
- Max. Turn-On Voltage: 4V DC
- Max. Turn-Off Voltage: 1V DC
- Max. Reverse Voltage: 32V DC
- Max. Input Current: 35mA @ 32V DC
- Load Voltage Range: 124-530V AC
- Max. Surge Current: 25A - 300A, 60A - 1000A
- Dielectric Strength: 24000Vrms (Input/Output), 22500Vrms (Input, Output/Base)
- Max. Turn-on/Off Time: 10ms
- Ambient Operating Temperature: -30°C to +80°C
- Dimensions: Refer to technical diagrams, typical weight 385g for 25A and 520g for 60A
- Transient Over Voltage: 1200Vpk
- Off-State Leakage Current: 5mA
- On-State Voltage Drop: 1.6Vrms
- Maximum dv/dt: 2500 V/s
Buy the Multicomp Solid State Relay 60A – Reliable Three-Phase Control for Industrial Applications
Purchase the Multicomp Solid State Relay 60A online today and ensure efficient, reliable control for your industrial motor, kiln, or oven systems. This relay offers quick switching, high dielectric strength, and robust insulation, making it suitable for demanding industrial environments. With a control voltage of 4-32VDC and load capacity up to 60A, it provides seamless operation in automation setups. Order now to benefit from fast delivery and expert support, ensuring your manufacturing process remains efficient and uninterrupted.
Buy Multicomp Solid State Relay 60A now and experience unmatched reliability and performance for your industrial motor and kiln control systems.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCKSQF480D60?
You can click on the BUY or RFQ button to purchase MCKSQF480D60 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCKSQF480D60?
You can download the MCKSQF480D60 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCKSQF480D60?
MULTICOMP-PRO
