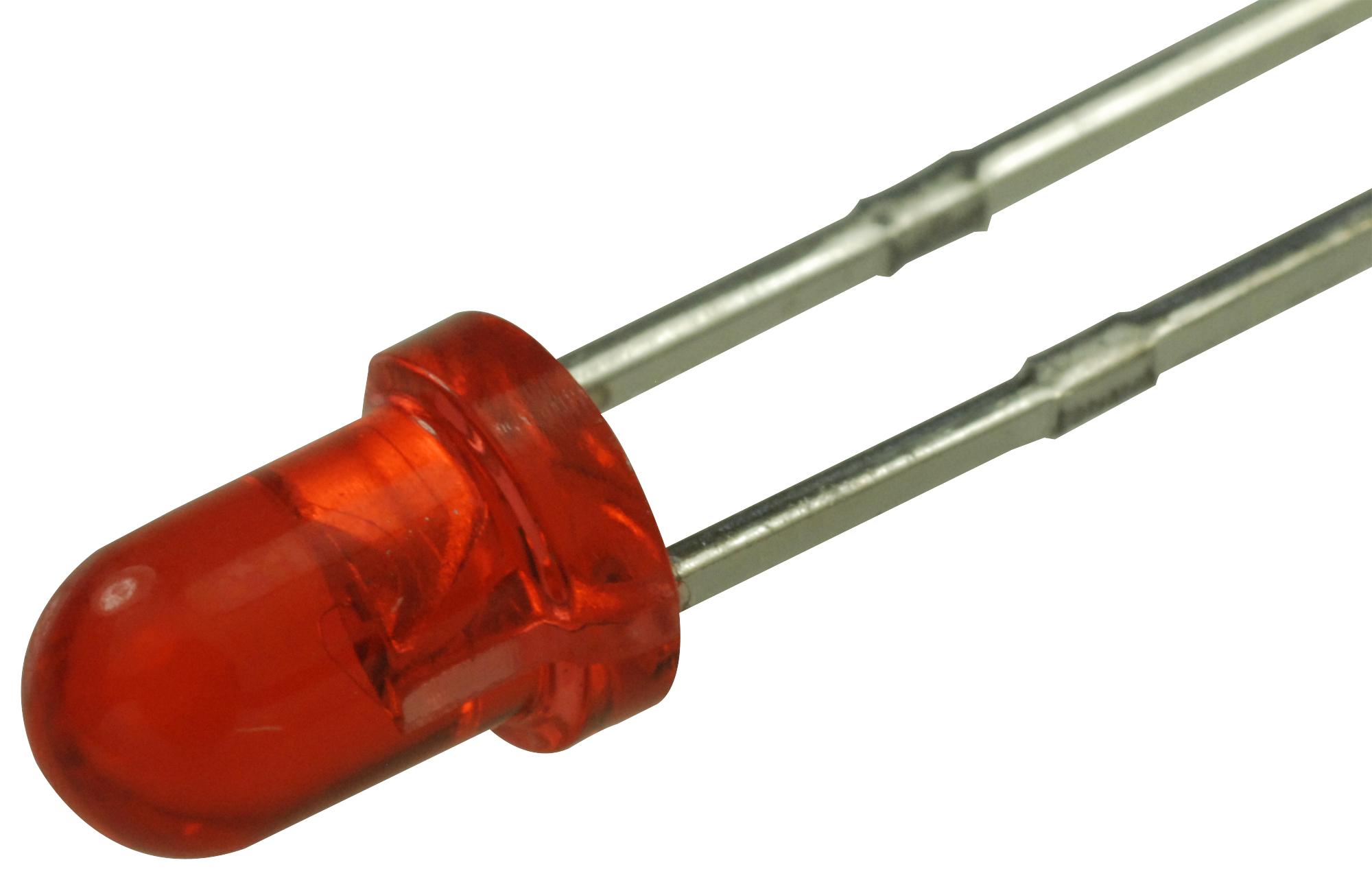

MULTICOMP PRO MCL034MT Round Red LED
The MCL034MT is a 3mm round red LED with a transparent lens, built with GaAsP on GaP dice. It operates at a peak wavelength of 635nm, viewing angle of 36°, and luminous intensity up to 60 med at 20mA. Features include a reverse voltage of 5V, reverse current of 10μA, and temperature tolerance from -40°C to 85°C for reliable industrial use. Ideal for indicator and signaling applications, offering high efficiency and durability under various environmental conditions.
MULTICOMP PRO MCL034MT Round Red LED Specifications:
- Dice Material: GaAsP on GaP
- Emitted Colour: Hi-Eff Red
- Lens Colour: Red Transparent
- Peak Wavelength: 635nm
- Viewing Angle: 36°
- Luminous Intensity: Up to 60 med at 20mA
- Reverse Voltage: 5V
- Reverse Current: 10μA at 5V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature Range: 260°C for 5 Seconds at 4.6mm from body
- Forward Voltage: 1.6V to 2.6V at 20mA
- Peak Forward Current: Up to 100mA (Duty 1/10, 1kHz)
- Power Dissipation: Up to 85mW
Buy the Buy Multicomp Pro Round LED Part Number MCL034MT Online
Purchase the Multicomp Pro Round Red LED MCL034MT online today for dependable signaling applications. This 3mm LED features high luminous intensity, a wide 36° viewing angle, and durability across -40°C to 85°C operating temperatures. Perfect for industrial, electronic, and indicator use, its GaAsP on GaP construction ensures efficiency and longevity. Guaranteed quality with quick delivery and excellent customer service, this LED enriches your projects with vibrant red illumination, making it an essential component for professional-grade electronic assemblies.
Order your Multicomp Pro Round LED MCL034MT today and enhance your signaling or indicators with reliable, high-performance lighting components.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCL034MT?
You can click on the BUY or RFQ button to purchase MCL034MT from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL034MT?
You can download the MCL034MT datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCL034MT?
MULTICOMP PRO
