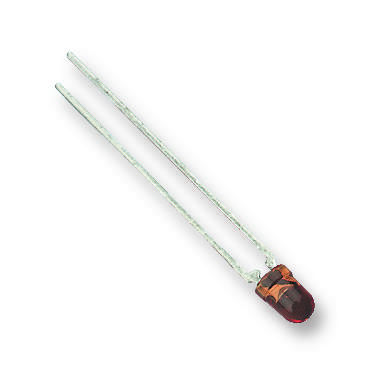

MULTICOMP PRO MCL034SAC Indicator LED
The Super Orange 3mm LED offers bright, reliable illumination with a peak wavelength of 635nm and a luminous intensity up to 2850mcd. Designed with AllnGaP material, it features a broad viewing angle of 36° and operates safely within a temperature range of -40°C to +85°C. Its compact size allows easy integration into various electronic projects, providing consistent light output and excellent performance. Ideal for indicator displays, signaling, and lighting applications, this LED adheres to RoHS compliance and supports efficient operation in diverse industrial environments.
MULTICOMP PRO MCL034SAC Indicator LED Specifications:
- Dice Material: AllnGaP
- Emitted Colour: Super Orange
- Lens Colour: Water Clear
- Peak Wavelength: 635nm
- Viewing Angle: 36°
- Luminous Intensity: 2000mcd (typical), up to 2850mcd (max)
- Reverse Voltage: 5V
- Reverse Current: 10pA at 5V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature: 260°C for 5 seconds (2-4mm from body)
Buy the Multicomp Pro MCL034SAC – Reliable Indicator LED for Industrial Applications
Enhance your electronic projects with the high-quality Super Orange LED. Featuring a 635nm peak wavelength, 36° viewing angle, and up to 2850mcd brightness, it provides clear, reliable illumination for indicators and signaling applications. Designed with AllnGaP technology, it ensures longevity and efficiency across a wide temperature range from -40°C to +85°C. Easy to solder and RoHS compliant, this compact LED is ideal for industrial, commercial, and DIY applications requiring robust performance and vibrant color output. Order now to improve your device visibility and ensure reliable operation.
Buy Multicomp Pro MCL034SAC LED with high brightness and broad viewing angle now and experience unmatched reliability and performance in your projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCL034SAC?
You can click on the BUY or RFQ button to purchase MCL034SAC from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL034SAC?
You can download the MCL034SAC datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCL034SAC?
MULTICOMP PRO
