MULTICOMP PRO MCL053GT Green LED

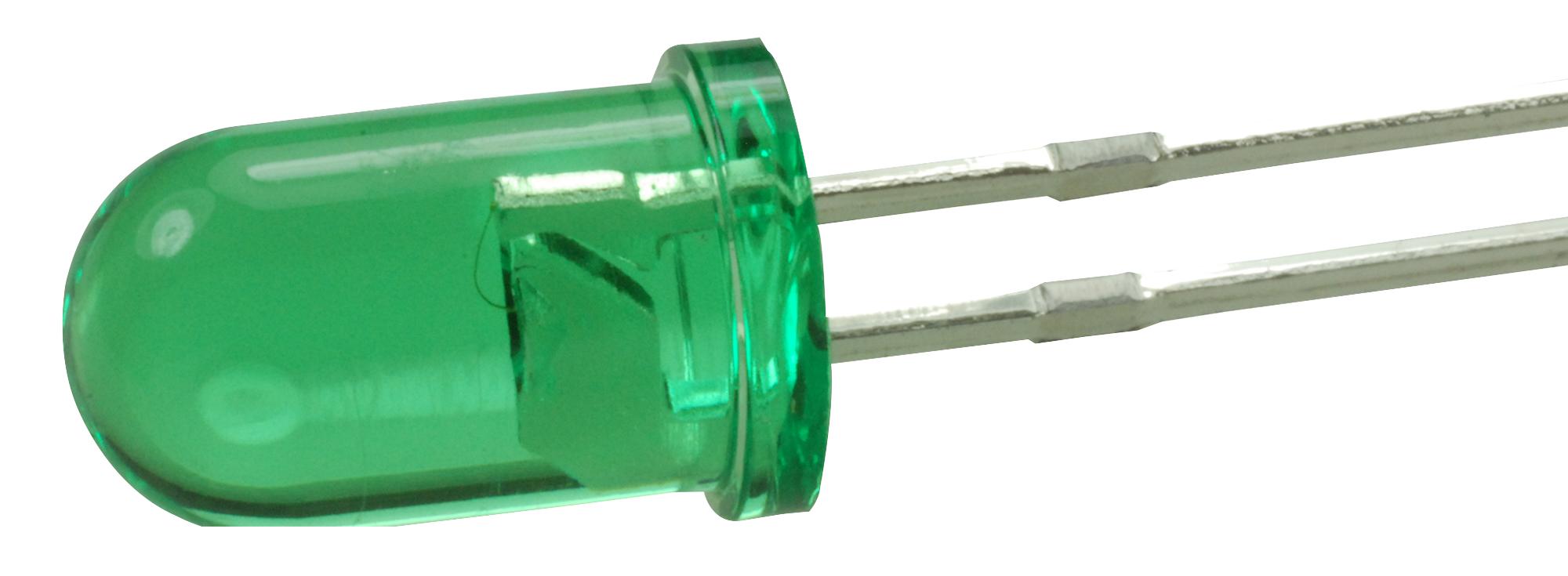

The MCL053GT is a 5mm green round LED lamp featuring a transparent green lens and gallium phosphide (GaP) material. Emitting at 568nm with a peak wavelength of 568nm, it offers a viewing angle of 16° and luminous intensity of 45mcd typical at 20mA. Fully RoHS compliant, it withstands operating temperatures from -40°C to 85°C and storage up to 100°C. Designed for reliable LED indicator and lighting applications, it is ideal for electronic circuits requiring bright green illumination with precise control and durability.
MULTICOMP PRO MCL053GT Green LED Specifications:
- Lens Colour: Green transparent
- Peak Wavelength: 568nm
- Luminous Intensity: 45mcd typical at 20mA
- Viewing Angle: 16°
- Forward Voltage: 2.1V typical at 20mA
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 100°C
- Soldering Temperature: 260°C for 5 seconds, 2.4mm from body
- RoHS Compliant
- Material: Gallium phosphide
- Reverse Voltage: 5V
- Reverse Current: 10μA at 5V
Buy the Buy Multicomp Green LED Part Number MCL053GT Online
Purchase the Multicomp Green LED MCL053GT online today for your electronic projects requiring bright, efficient green illumination. This 5mm round LED with a transparent green lens is ideal for indicator lights, displays, and signaling applications. Featuring gallium phosphide material, it emits at 568nm with a luminous intensity of 45mcd and a 16° viewing angle. Built to operate between -40°C to 85°C, it offers durability and consistent performance. Order now and enhance your electronic design with this high-quality LED model, backed by a 12-month warranty.
Get Multicomp green LED MCL053GT today—designed for reliable indicator lighting with high brightness and long-lasting performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCL053GT?
You can click on the BUY or RFQ button to purchase MCL053GT from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL053GT?
You can download the MCL053GT datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCL053GT?
MULTICOMP PRO
