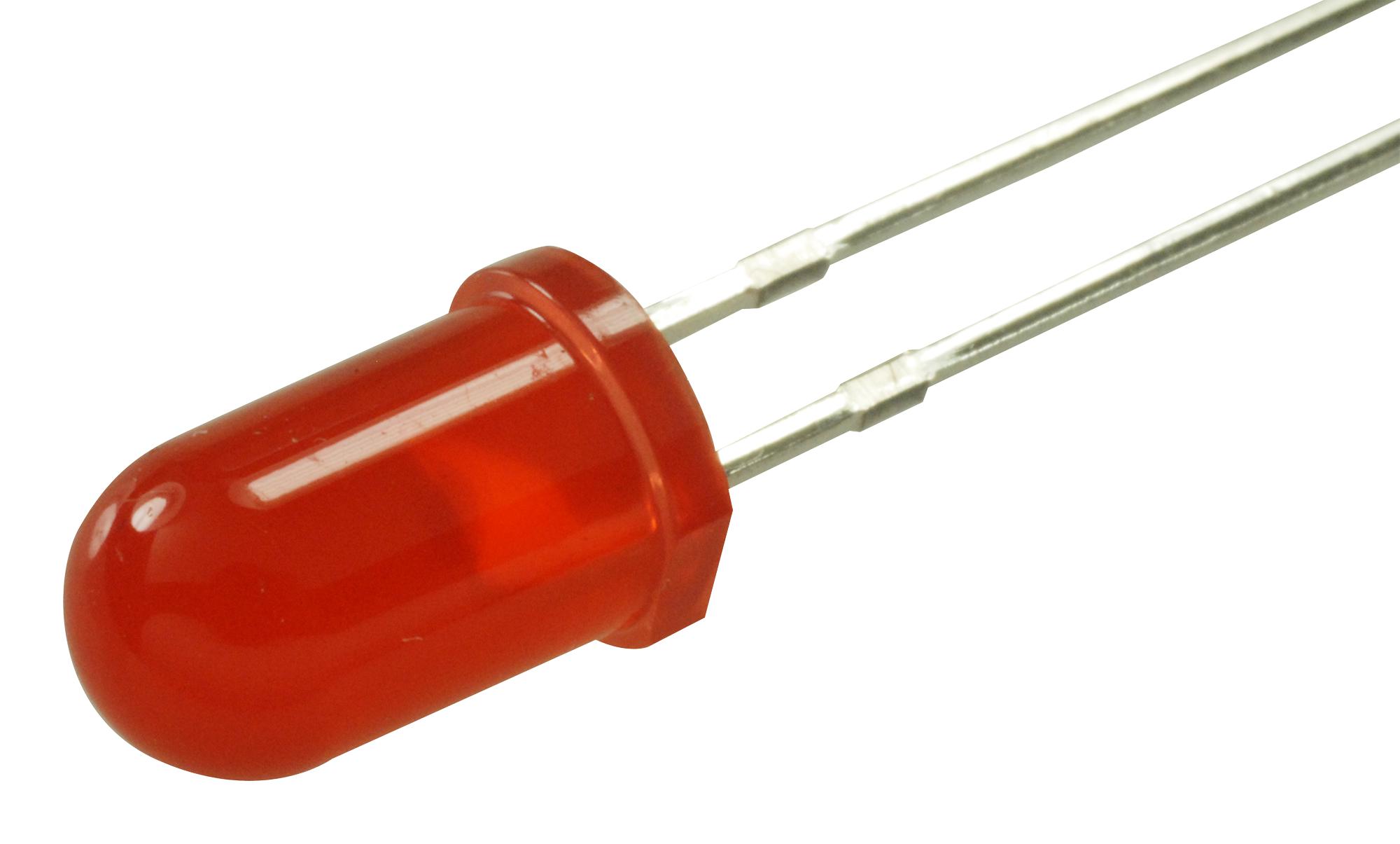

MULTICOMP PRO MCL053MD Red LED Light
The MCL053MD is a 5mm red LED lamp with a diffused lens for uniform light distribution. Made with GaAsP on GaP substrates, it offers a peak wavelength of 625nm and a luminous intensity of 15mcd. The round, through-hole design ensures easy installation in various lighting applications. It supports a power dissipation of up to 85mW and operates within a temperature range of -40°C to +85°C, making it suitable for industrial and electronic LED lighting projects. Its durable construction ensures reliability in demanding environments.
MULTICOMP PRO MCL053MD Red LED Light Specifications:
- Diameter: 5mm
- Lens Type: Diffused
- Emitted Colour: Red
- Peak Wavelength: 625nm
- Luminous Intensity: 15mcd
- Viewing Angle: 45°
- Material: GaAsP on GaP
- Power Dissipation: up to 85mW
- Forward Voltage: 1.6V to 2.6V at 20mA
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature: 260°C for 5 seconds at 4.6mm from body
Buy the Premier Multicomp Pro MCL053MD – Reliable Red LED for Industrial Applications
Purchase the reliable 5mm Red LED Light online today. Designed with a diffused lens for even light distribution, it features a peak wavelength of 625nm and luminous intensity of 15mcd. Constructed with GaAsP on GaP substrates, it ensures durability with a maximum power dissipation of 85mW and supports operation from -40°C to +85°C. Ideal for electronic and industrial lighting applications, this LED offers consistent performance, easy installation, and long-term dependability. Order now for quick delivery and seamless integration into your projects.
Get Multicomp Pro MCL053MD today—built for reliable performance and long-lasting durability in LED lighting systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCL053MD?
You can click on the BUY or RFQ button to purchase MCL053MD from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL053MD?
You can download the MCL053MD datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCL053MD?
MULTICOMP PRO
