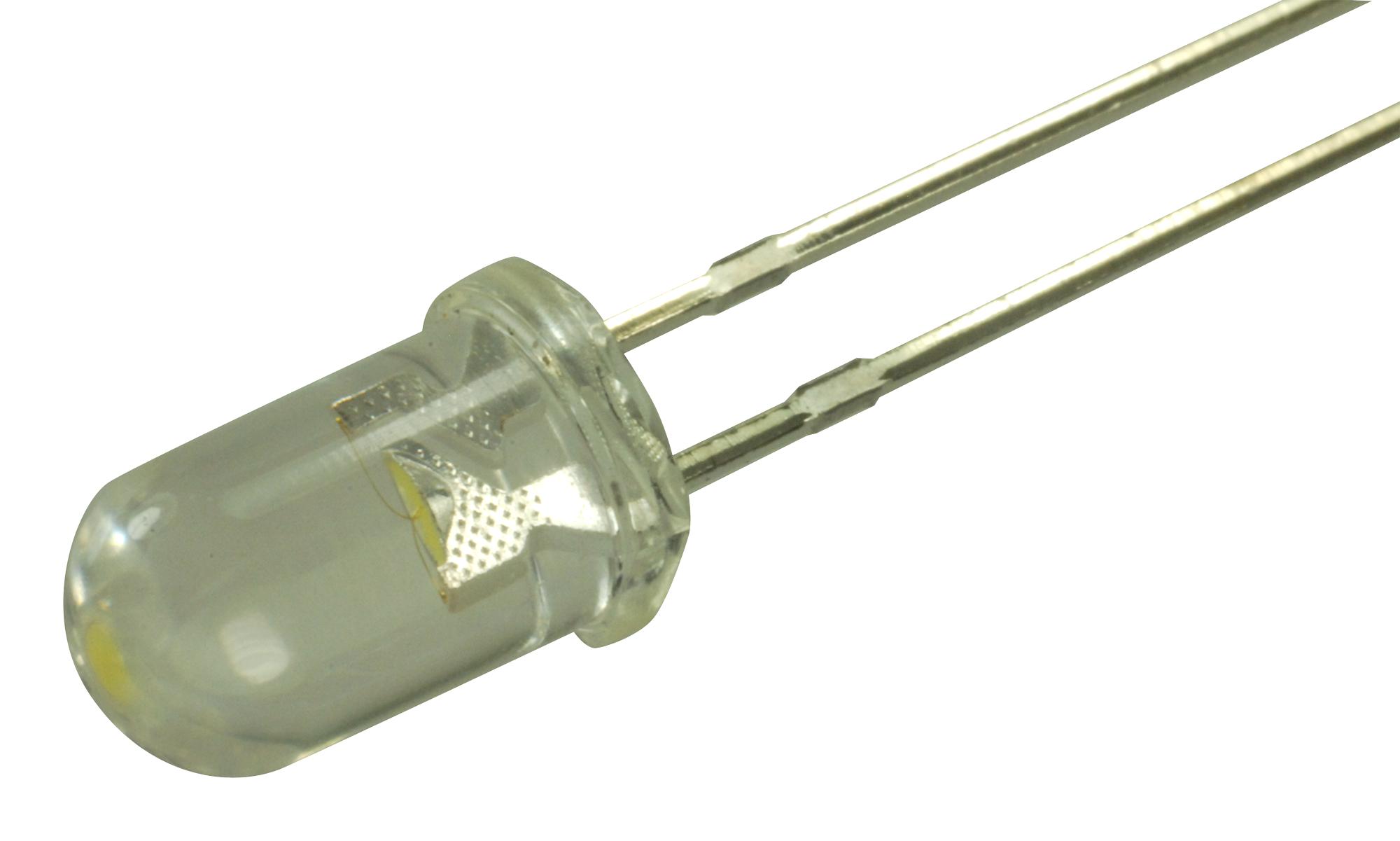

MULTICOMP PRO MCL053SWCYH1 Round LED Lamp
The MCL053SWC-YH1 is a 5mm round LED emitting warm super white light with a water-clear lens. It uses InGaN technology for bright white illumination and features a 16° viewing angle. Designed for general LED lighting and indicator applications, it offers a luminous intensity of 25,000 mcd and operates within -40°C to +85°C. The component supports a forward voltage of approximately 3.2V at 20mA and has an electrostatic discharge tolerance of 200V. Suitable for through-hole mounting, it ensures high reliability and performance for various electronic projects, with RoHS compliance for environmentally friendly use.
MULTICOMP PRO MCL053SWCYH1 Round LED Lamp Specifications:
- Dice Material: InGaN
- Emitted Colour: White
- Lens Colour: Water clear
- Peak Wavelength: 0.3 nm
- Viewing Angle: 16°
- Luminous Intensity: 25,000 mcd
- Reverse Voltage: 5V
- Reverse Current: 10 μA at VR=5V
- ESD Tolerance: 200V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature: 260°C for 5 seconds
- Forward Voltage: 3.2V at 20mA
- Power Dissipation: 85mW
- Peak Forward Current: 100mA (duty 1/10 at 1KHz)
- Recommended Operating Current: 20mA
Buy the Buy Multicomp Round LED Lamp Part Number MCL053SWCYH1 Online
Purchase the Multicomp round LED lamp in warm super white today online for high brightness and reliable operation. This 5mm LED features a water-clear lens, InGaN technology for vivid white light, and a 16° viewing angle. Support your projects with a device that offers 25,000 mcd luminous intensity, operates safely within -40°C to +85°C, and supports through-hole mounting. Its low forward voltage of 3.2V and high ESD protection ensure durability and efficiency in various electronic applications. Order now for fast delivery.
Get Multicomp MCL053SWC-YH1 today—built for bright illumination and reliable performance in LED lighting and indicator applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCL053SWCYH1?
You can click on the BUY or RFQ button to purchase MCL053SWCYH1 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL053SWCYH1?
You can download the MCL053SWCYH1 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCL053SWCYH1?
MULTICOMP PRO
