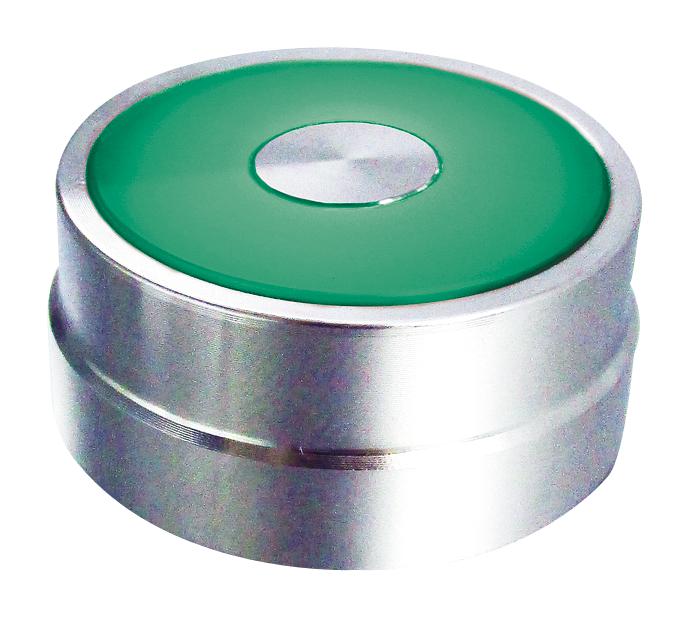

MULTICOMP PRO MC010945 Vandal Resistant Switch
The Flush Illuminated Vandal Resistant Switch features a metal bezel-ring finish with LED indicators in green, red, and blue colors. Designed for secure, flush mounting in industrial environments, it has rated voltage of 600V and a rated current of 210A. The switch is made of durable aluminum, offers IP65 protection, and withstands harsh conditions with high dielectric strength and vibration resistance. It supports various contact configurations including 1NO, 1NC, 2NO, 2NC, and more, suited for demanding safety and automation applications with long mechanical and electrical life.
MULTICOMP PRO MC010945 Vandal Resistant Switch Specifications:
- Rated Voltage: 600V
- Rated Current: 210A
- LED Voltage: 12V AC/DC
- LED Colour: Green / Red / Blue
- Material / Finish: Aluminium
- Dielectric Strength: Between live part and ground: 2,000V AC / min
- Between terminals of the same poles: 1,000V AC / min
- Contact Resistance: 50mΩ Max. (Initial value)
- Insulation Resistance: 100MQ Min. (500V DC)
- Operating Humidity: 45 to 85% RH (No condensation)
- Storage Temperature: -30°C to +80°C (No freezing)
- Operating Temperature: 1-25°C to +55°C (No freezing)
- Vibration Resistance: 5 to 55Hz, Amplitude: 0.5mm
- Shock Resistance: 1,000 m/S² damage limits, 100 m/S² operating limits
- Mechanical Life: Momentary: 1,000,000 cycles, Maintained: 100,000 cycles
- Electrical Life: 100,000 cycles
- Degree of Protection: IP65
- Terminal Style: Contact Block
Buy the MultiComp Series Vandal Resistant Switch: MC010945
Order the Vandal Resistant Switch by MultiComp online today and enhance your industrial safety and automation systems. This durable switch offers IP65 protection, multiple contact configurations, and LED indicators in green, red, and blue. Constructed from aluminum, it withstands harsh environments with a rated voltage of 600V and current of 210A, ensuring long-lasting performance. Easy to install with secure flush mounting, it is ideal for controlling machinery, safety systems, and automation setups with high dielectric strength and vibration resistance for reliable operation.
Get MultiComp MC010945 today—built for durability and reliable industrial control applications.
