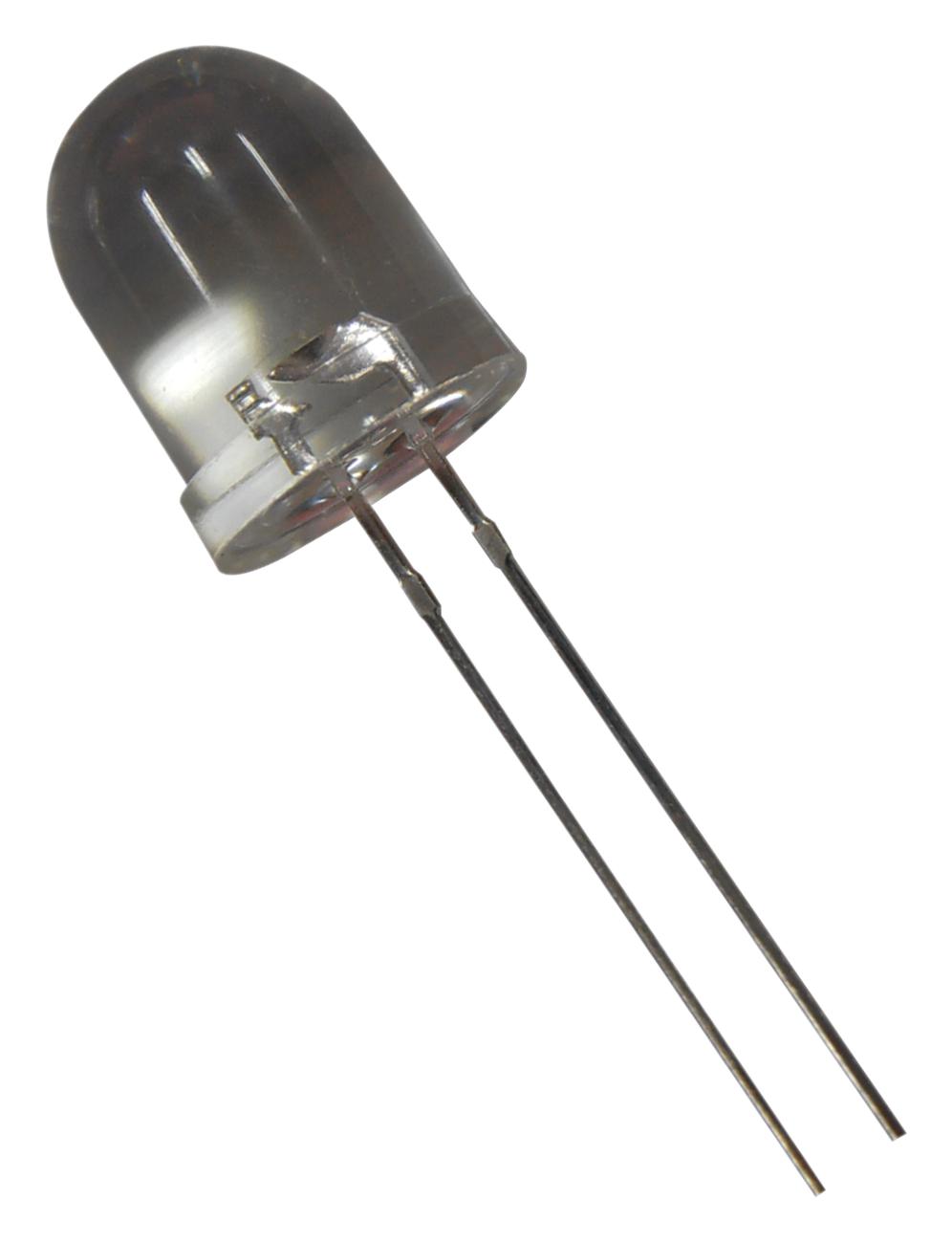

MULTICOMP-PRO MCL103RHC 10mm Red LED
This 10mm round super bright LED emits ultra red light at a peak wavelength of 655nm, with a luminous intensity of up to 8500 mcd at 20mA. It features a water-clear lens with a 20° viewing angle, making it ideal for indicator and display applications. The LED operates within a temperature range of -40°C to +85°C, has a forward voltage of approximately 2.2V, and can dissipate up to 85mW. Easy to solder and suitable for various industrial and electronic projects requiring reliable ultra red illumination.
MULTICOMP-PRO MCL103RHC 10mm Red LED Specifications:
- Diameter: 10mm
- Lens Colour: Water Clear
- Peak Wavelength: 655nm
- Luminous Intensity: 6000 to 8500 mcd
- Viewing Angle: 20°
- Forward Voltage: 2.0 to 2.2V
- Power Dissipation: Up to 85mW
- Peak forward current: 100mA (at 1/10 duty cycle)
- Recommended Operating Current: 20mA
- Reverse Voltage: 5V
- Reverse Current: 10uA
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature: 260°C for 5 seconds
Buy the Multicomp 10mm Round Super Bright Red LED – Reliable Indicator for Industrial Applications
Get the high-brightness 10mm red LED online today and enhance your electronic projects with reliable ultra red illumination. This durable LED features a water-clear lens, 20° viewing angle, and a peak wavelength of 655nm for excellent visibility in indicator and display applications. Operating efficiently up to 85mW, with a forward voltage of around 2.2V, it supports optimal performance within a temperature range of -40°C to +85°C. Perfect for industrial, commercial, and DIY electronics requiring dependable, bright red lighting.
Order your multicomp 10mm round super bright red LED today and equip your projects with dependable ultra red illumination for industrial and electronic applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCL103RHC?
You can click on the BUY or RFQ button to purchase MCL103RHC from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL103RHC?
You can download the MCL103RHC datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCL103RHC?
MULTICOMP-PRO
