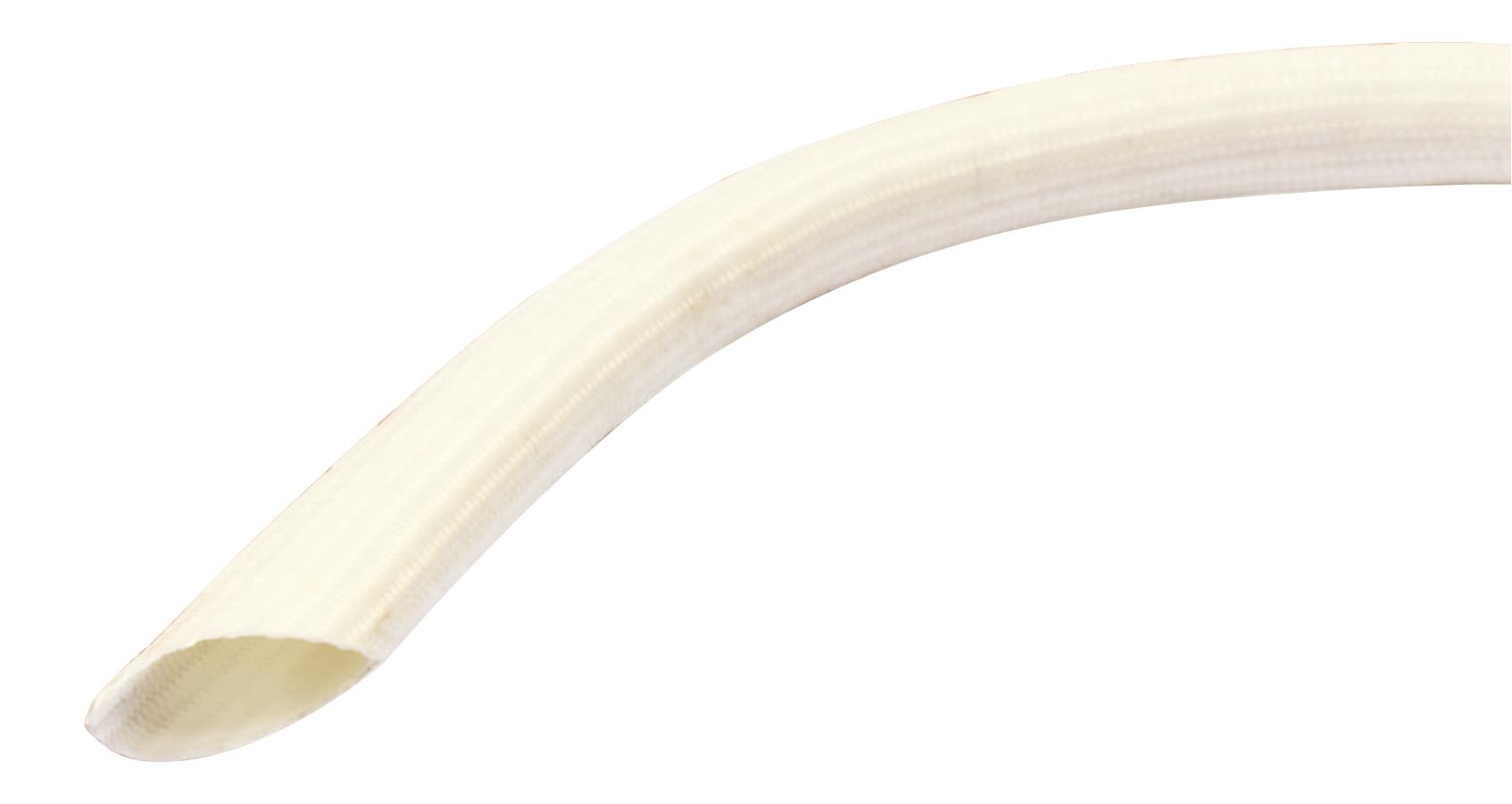

MULTICOMP-PRO PP001465 Fiberglass Sleeving
The fiber-glass sleeving is made of E-class fibreglass treated at high temperature with a silicone resin coating. It offers excellent thermal resistance up to 200°C, self-extinguishing properties, and flexibility. The sleeving is suitable for use as supplementary insulation on components such as transformers, motors, generators, and resistor leads. It can be cut to size with scissors or cutting machines. The length is 50 meters (164 feet), with an inner diameter of 13mm (plus tolerance of +0.5/-0.1mm). Wall thickness varies by voltage rating: approximately 0.5mm at 1.5KV, 0.6mm at 2.5KV, and 0.7mm at 4KV. Operating temperature ranges from -60°C to +200°C, with breakdown voltages between 1.5KV and 4KV. The material is flame-retardant (VW-1 rating), and the standard color is white.
MULTICOMP-PRO PP001465 Fiberglass Sleeving Specifications:
- Sleeving Material: Fiberglass Fiber
- Coating Material: Silicone Resin
- Operating Range: -60°C to +200°C
- Breakdown Voltage: 1.5kV to 4kV
- Flammability: VW-1
- Color: White
- Length: 50 meters
- Inner Diameter: 13mm with tolerance +0.5/-0.1mm
- Wall Thickness: Approximately 0.5mm at 1.5KV, 0.6mm at 2.5KV, 0.7mm at 4KV
- Cutting Tools: Scissors, Cutting Machine
Buy the Buy multicomp Fiberglass Sleeving Part Number PP001465 Online
Order the multicomp Fiberglass Sleeving online today and enjoy fast delivery. Made from high-quality fiberglass with silicone resin for excellent heat resistance up to 200°C, flame retardant VW-1 rated, flexible, and suitable for insulation of transformers, motors, and generators. Each package contains 50 meters of white sleeving with an inner diameter of 13mm, wall thickness around 0.6mm, suitable for cutting with scissors or machines. Perfect for electrical insulation needs requiring durability and thermal resilience.
Get multicomp PP001465 today—designed for high-temperature insulation and reliable electrical protection.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO PP001465?
You can click on the BUY or RFQ button to purchase PP001465 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part PP001465?
You can download the PP001465 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of PP001465?
MULTICOMP-PRO
