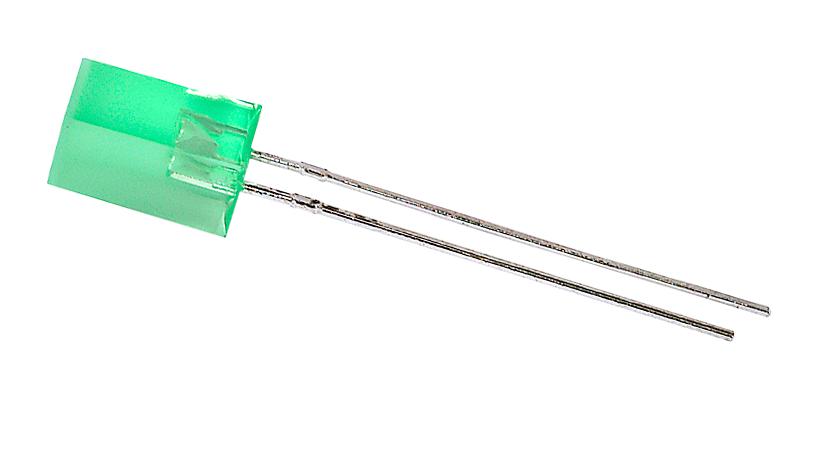

MULTICOMP-PRO MCL293GD Green Square LED
This green 5mm x 5mm square LED from the Multicomp Pro range offers high brightness and reliability, with a luminous intensity of up to 3.2 millicandelas at 20mA. Featuring GaP dice material, it emits at a peak wavelength of 568nm and has a viewing angle of 150°. Suitable for various electronic applications, it supports an operating temperature range from -40°C to 85°C and can withstand soldering at 260°C for 5 seconds. Ideal for indicator lights, signage, and display boards, it meets RoHS compliance for environmentally friendly manufacturing.
MULTICOMP-PRO MCL293GD Green Square LED Specifications:
- Dice material: GaP
- Emitted colour: Green
- Lens colour: Green Diffused
- Peak wavelength: 568nm
- Viewing angle: 150°
- Luminous intensity: 3.2mcd at 20mA
- Reverse Voltage: 5V
- Reverse Current: 10uA at 5V
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 100°C
- Soldering Temperature: 260°C for 5 seconds at 4.6mm from body
- Forward Voltage: 1.7V at 20mA
- Peak Forward Current: 100mA (duty cycle 1/10 at 1kHz)
- Recommended Operating Current: 20mA
- Dimensions: 5mm x 5mm square, lens color: Green Diffused
Buy the Buy Multicomp Pro Green LED Part Number MCL293GD Online
Purchase the Multicomp Pro Green Square LED MCL293GD online today and experience reliable performance for indicator lights, signage, and display applications. With a peak wavelength of 568nm, a viewing angle of 150°, and a luminous intensity of 3.2mcd at 20mA, this LED offers excellent brightness and efficiency. Suitable for various industrial and electronic projects, it features a durable GaP die material and supports operating temperatures from -40°C to 85°C. Affordable and RoHS compliant, it’s ideal for professional, hobbyist, and commercial use.
Get Multicomp Pro MCL293GD today—built for high brightness and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCL293GD?
You can click on the BUY or RFQ button to purchase MCL293GD from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL293GD?
You can download the MCL293GD datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCL293GD?
MULTICOMP-PRO
