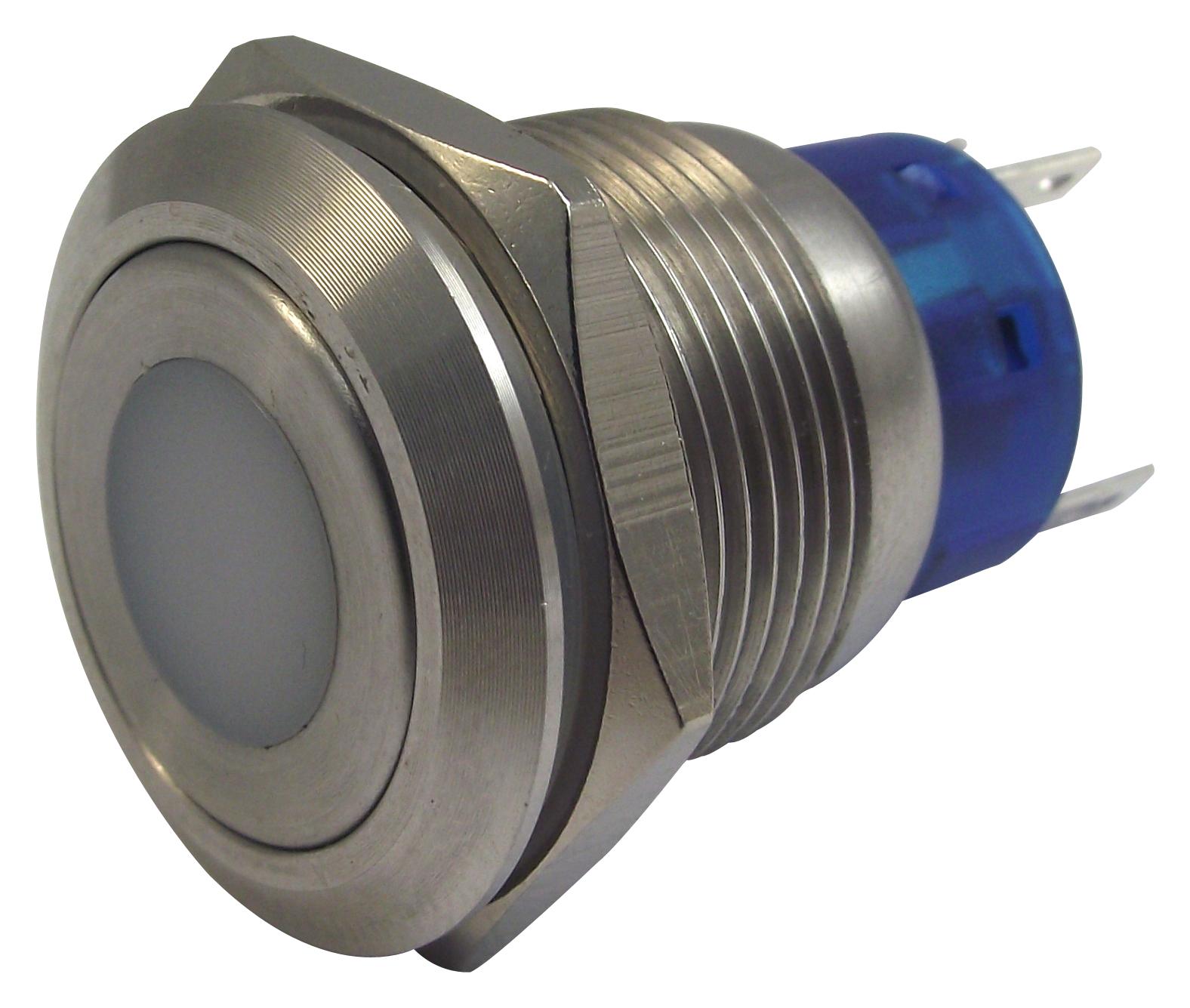

MULTICOMP PRO MPB19A0F11D112JQ Industrial Pushbutton Switch
The Metal Pushbutton Switch multicomp:ro is a robust, IP67-rated device designed for industrial applications. Constructed with stainless steel, nickel-plated brass, and high-quality plastics, it offers excellent durability and sealing. The switch features a silver contact material, resistive load capability of 3A at 250V AC, and an operating temperature range from -20°C to +55°C. With a mechanical life of 10 million cycles for momentary and 5 million for self-lock versions, it ensures reliable operation in harsh environments. Its compact design accommodates panel thicknesses up to 10mm, making it ideal for control panels needing dependable actuation solutions.
MULTICOMP PRO MPB19A0F11D112JQ Industrial Pushbutton Switch Specifications:
- Contact Material: Silver
- Rating: SA/250V AC. Resistive load 3A/250V AC
- Contact Resistance: 50mΩ Max. @ 1A 12V DC
- Insulation Resistance: 1,000MΩ Min. at 500V DC
- Dielectric Strength: 2,000V RMS @ sea level
- Operating Temperature: -20°C to +55°C
- Mechanical Life: Momentary 10,000,000 Cycles, Self-Lock 5,000,000 Cycles
- Electrical Life: 50,000 Make-and-Break Cycles at full load
- Torque: 5Nm to 14Nm
- Panel Thickness: Up to 10mm
- Ingress Protection: IP67
- Material: Bushing Stainless Steel/Nickel Plated Brass/Aluminum alloy, Base PBT, PC, Actuator PC, Stainless Steel
- Inner Assembly: POM/PA66, Spring Steel, Sealing Silicone, O-Ring Silicone
- Terminal/Contact: Copper, Silver Plated
- Hex Nut: Nickel Plated Brass
- Operation Pressure: 1.5N to 2.5N
- Travel: About 3.2mm
- Dimensions: Compatible with panel cutout for a 10mm panel thickness
Buy the Multicomp Pro MPB19A0F11D112JQ – Reliable Industrial Pushbutton Switch for Control Panels
Order the reliable industrial pushbutton switch online today. Designed for durability and high operational life, this switch features IP67 sealing, silver contacts, and a compact form factor suitable for control panels. It withstands harsh environments, provides resistive load capacity of 3A at 250V AC, and supports up to 10 million mechanical cycles. Perfect for automation systems, machinery, and control panels needing durable actuation solutions with a panel thickness compatibility of up to 10mm. Buy now for quality and dependability.
Get Multicomp Pro MPB19A0F11D112JQ today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPB19A0F11D112JQ?
You can click on the BUY or RFQ button to purchase MPB19A0F11D112JQ from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPB19A0F11D112JQ?
You can download the MPB19A0F11D112JQ datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPB19A0F11D112JQ?
MULTICOMP PRO
