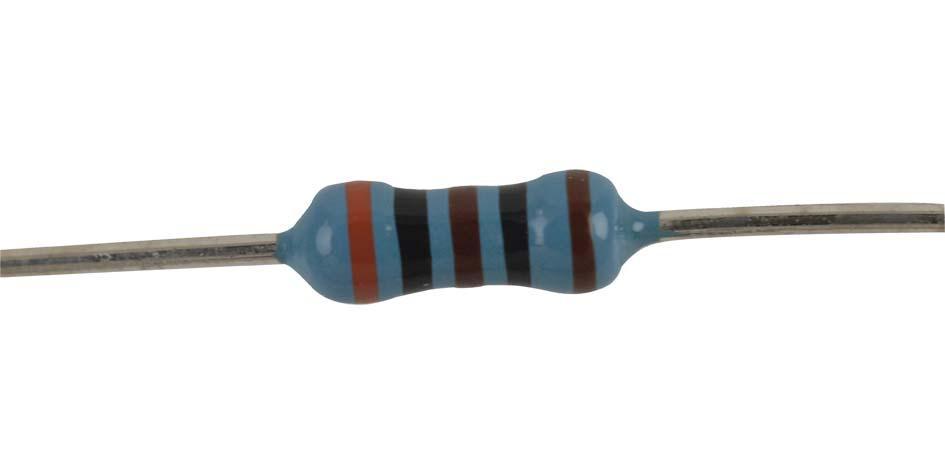

MULTICOMP PRO MCMF0W4FF3010A50 Precision Metal Resistor
The MCMF0W4 series axial-leaded precision metal film fixed resistor features epoxy coating on a vacuum-deposited metal film for moisture resistance. Employing a nichrome resistor element, it ensures stable performance across environments, complying with EIA color standards. Suitable for precise applications, it offers low noise, low voltage coefficient, and wide temperature tolerance from -55°C to +155°C. Compact and reliable, it provides options in high and low ohmic values, making it ideal for industrial and electronic device applications. Rated with a 0.25W power capacity at 70°C, it is a durable, high-performance resistor.
MULTICOMP PRO MCMF0W4FF3010A50 Precision Metal Resistor Specifications:
- Type: MCMF
- Rated Power: 0.25W at 70°C
- Max. Working Voltage: Calculated from P=0.25W, Resistance range 100 to 1MΩ
- Operating Temp. Range: -55°C to +155°C
- Resistance Tolerance: ±1% / ±2%
- Resistance Range: 100Ω to 1MΩ
- Construction: Epoxy coating, metal film, nichrome resistor element
- Material: Steel (tin-plated iron end caps), annealed copper lead wires
- Dielectric Withstanding Voltage: 400V
- Insulation Resistance: >10,000 MΩ
- Temperature Coefficient: ±50 PPM/°C
- Mechanical Test: Resistance change within ±0.5% at 2.5x RCWV for 5 sec
- Soldering Temp: 245°C ± 3°C, Dwell time: 2-3 sec
- Solderability: Minimum 95% coverage
- Vibration Resistance: 55Hz, 3 planes, 2 hrs each
- Life Test: Resistance within ±1.5% after 1000 hours at RCWV
- Dimensions: D = 2.5mm, H = 6.8mm, Lead length approx 28mm
Buy the Multicomp Series MCMF0W4 Precision Metal Resistor: Reliable Electronic Component
Purchase the Multicomp Metal Film Resistor online today for your industrial electronics needs. This high-quality resistor offers stable performance, low noise, and exceptional temperature tolerance. With a compact design, epoxy coating, and a broad resistance range, it is perfect for precision circuits requiring reliability and durability. Whether you need high or low ohmic values, buy online now to ensure your projects benefit from top-tier components that meet rigorous standards, backed by a 12-month limited warranty and trusted by professionals worldwide.
Get Multicomp Metal Film Resistor today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCMF0W4FF3010A50?
You can click on the BUY or RFQ button to purchase MCMF0W4FF3010A50 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCMF0W4FF3010A50?
You can download the MCMF0W4FF3010A50 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCMF0W4FF3010A50?
MULTICOMP PRO
