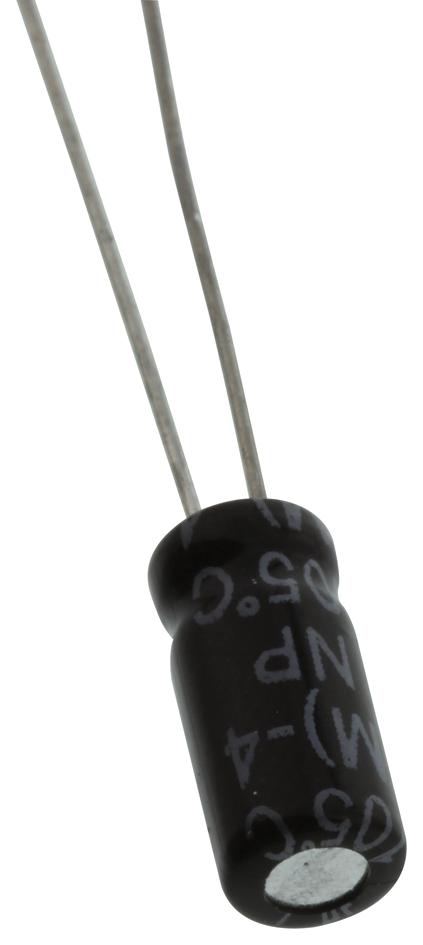

MULTICOMP PRO MCNP35V105M5X11 Non-Polarized Radial Capacitors
The Multicomp Pro MCNP series capacitors are non-polarized, radial leaded aluminum electrolytic capacitors. They offer capacitance values ranging from 0.47µF to 2200µF. These capacitors feature excellent frequency characteristics and minimal variation in capacitance. Suitable for crossover networks in high-fidelity equipment and speakers, they operate at rated voltages from 10VDC to 250VDC with a tolerance of ±20%. They are rated for an endurance of 2000 hours at 85°C, with an operating temperature range from -40°C to 85°C. Multicomp Pro products are rated 4.6 out of 5 stars, come with a 12-month limited warranty, and 96% of customers would recommend them to a friend.
MULTICOMP PRO MCNP35V105M5X11 Non-Polarized Radial Capacitors Specifications:
- Capacitance Range: 0.47µF to 2200µF
- Rated Voltage Range: 10V DC to 250V DC
- Temperature Range: -40°C to +85°C
- Capacitance Tolerance: ±20% at +20°C, 120Hz
- Leakage Current: |0.03CV or 3(�A) after five minutes
- Dissipation Factor (tanδ): Max 0.2 at 120Hz, rated voltages from 16V to 100V
- Endurance: 2000 hours at +85°C with rated voltage
- Shelf Life: 500 hours at +105°C with no voltage, same post-test limits
- Dimensions: Vary with case size, typical sizes from 6.3mm to 16mm diameter
- Operating Temperature: -40°C to +85°C
- Ripple Current: Max 30mA at 85°C, 120Hz
Buy the Buy Multicomp MCNP35V105M5X11 Non-Polarized Radial Capacitors Part Number MCNP35V105M5X11 Online
Purchase your Multicomp Pro non-polarized radial aluminum electrolytic capacitors online today to ensure optimal performance in high-fidelity audio equipment and crossover networks. With capacitance values from 0.47µF to 2200µF and rated voltages up to 250VDC, these capacitors boast excellent frequency response and stability, rated endurance of 2000 hours at 85°C, and operating temperatures from -40°C to 85°C. Ideal for audio applications, speaker systems, and electronic circuits, they guarantee reliable operation with minimal capacitance deviation. Order now for fast delivery and quality assurance.
Order your Multicomp Series capacitors today and enhance your high-fidelity and crossover network projects with dependable quality.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCNP35V105M5X11?
You can click on the BUY or RFQ button to purchase MCNP35V105M5X11 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCNP35V105M5X11?
You can download the MCNP35V105M5X11 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCNP35V105M5X11?
MULTICOMP PRO
