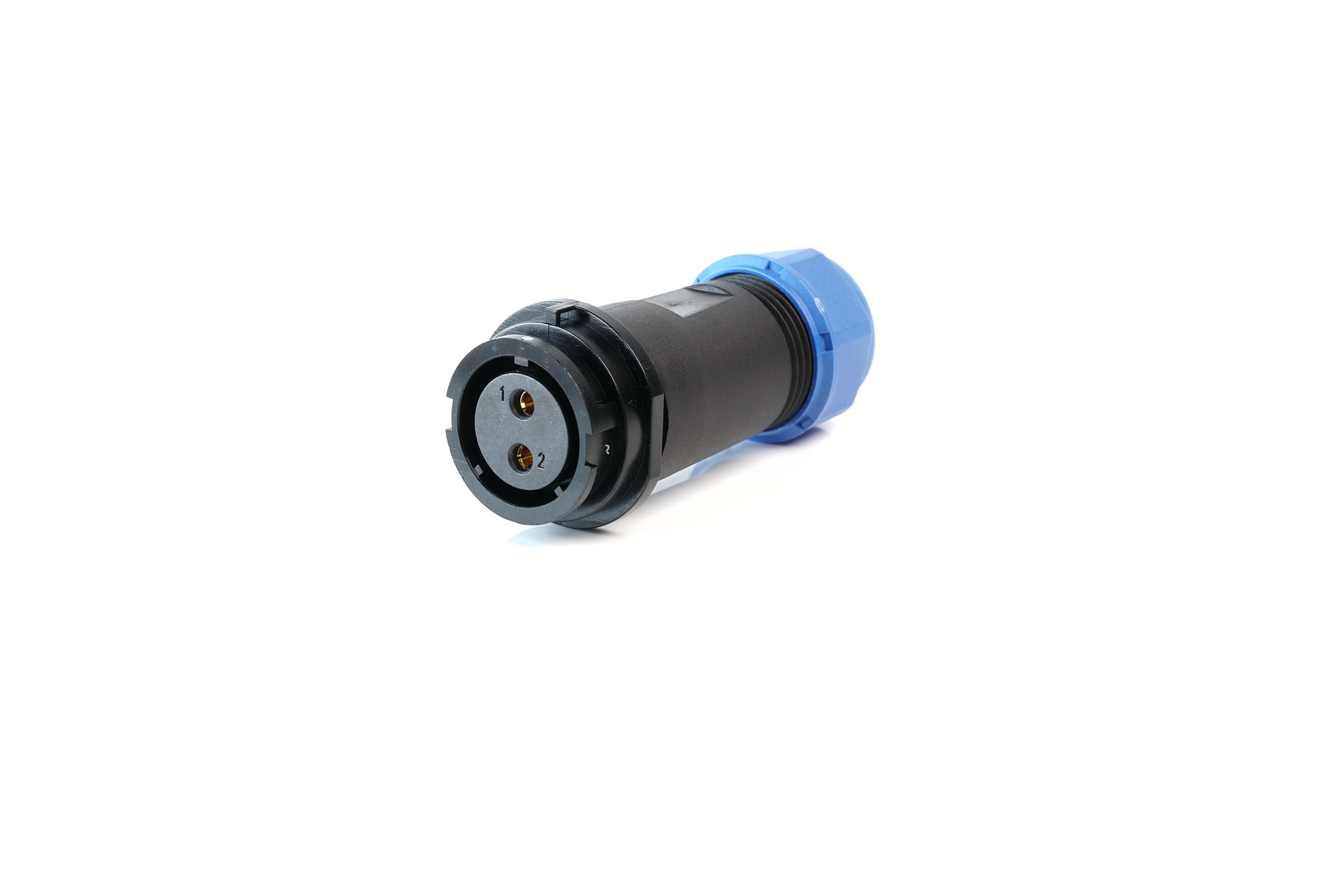

MULTICOMP PRO MP002690 IP67 Connector
The MP-T21 IP67 series offers tough, weather-resistant connectors with bayonet coupling for quick connections. Suitable for indoor and outdoor use, these connectors come in panel, cable, and inline mount options, fitting a 21mm cut-out. They support solder and screw terminations, with models available in 2, 3, 4, 5, 7, 9, and 12 poles. Designed to withstand harsh environments, they feature IP67 protection, high durability, and an optional dust cap for extra safety, making them ideal for industrial, outdoor, and rugged applications.
MULTICOMP PRO MP002690 IP67 Connector Specifications:
- Material: Nylon66 shell, PPS insert, brass contacts with gold plating
- Rating: IP67 weatherproof protection
- Coupling: Bayonet
- Temperature Range: -40°C to +80°C
- Contact Diameter: 1-3 mm (varies by model)
- Rated Current: 5-30 A depending on model
- Rated Voltage: 400-500 V AC
- Test Voltage: 1500 V AC (1 min.)
- Number of Contacts: 2, 3, 4, 5, 7, 9, or 12 poles
- Termination: Solder or screw
- Maximum Cable Outer Diameter: 12 mm
- Mating Cycle: 500 times
- Certifications: RoHS compliant
Buy the Multicomp Series T21 IP67 Connector: MP002690
Purchase the robust IP67-rated connector series designed for harsh environments. Featuring bayonet coupling, multiple configurations, and solder or screw terminations, these connectors provide secure, reliable connections for industrial, outdoor, and rugged applications. They support cable diameters up to 12 mm and are rated for high current and voltage. The series includes various models with 2, 3, 4, 5, 7, 9, and 12 poles. An optional dust cap adds extra protection, making these connectors ideal for demanding environments.
Order your Multicomp Series T21 IP67 connector today and experience reliable, rugged connections for your industrial and outdoor projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002690?
You can click on the BUY or RFQ button to purchase MP002690 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002690?
You can download the MP002690 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002690?
MULTICOMP PRO
