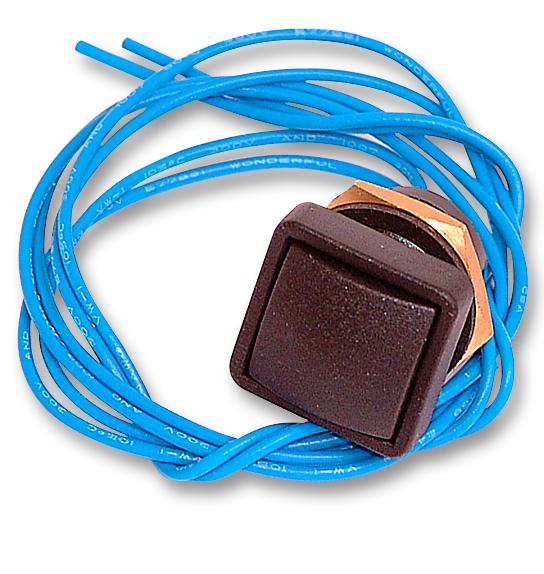

MULTICOMP-PRO MCPAS6D1M1CES25 Sub-Miniature Pushbutton Switch
The sub-miniature pushbutton switch series offers reliable, durable operation with a compact design suitable for various panel mounting applications. These SPST switches feature robust construction, high dielectric strength, and excellent electrical life performance, making them ideal for industrial and electronic control systems. Available with illumination options and multiple color configurations, they provide versatile functionality for user interfaces. Designed for easy soldering and panel mounting, these switches meet RoHS compliance and operate effectively within temperature ranges of -55°C to +85°C, ensuring durability across diverse environments.
MULTICOMP-PRO MCPAS6D1M1CES25 Sub-Miniature Pushbutton Switch Specifications:
- RoHS Compliant
- Max. Current/Voltage Rating With Resistive Load: 400mA 32V AC, 100mA 50V DC; 500mA 48V AC, 200mA 50V DC, 250V AC
- Initial Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1GΩ Min. at 500V DC
- Operating Temperature: -55°C to +85°C
- Dielectric Strength: 1,000 V AC rms; 1,500 V AC rms for metal material
- Mechanical Life: 71,000,000 Cycles
- Electrical Life at Full Load: 100,000 cycles
- Panel Thickness: 0.8 mm to 4 mm depending on model
- Total Travel: 1.5mm
- Operating Force: 2N to 5N
- Contact Bounce: 10ms
- Soldering Temperature: Max 350°C for 5 seconds
- IP67 Water Resistance
- Dimensions vary by model but generally around 12mm panel cutout with mounting hardware
Buy the Buy multicomp Series MCPA Sub-Miniature Pushbutton Switches Part Number MCPAS6D1M1CES25 Online
Get the high-quality multicomp Series MCPAS6D1-M1CES25 sub-miniature pushbutton switch online today. Designed for durability and easy mounting, this switch offers long life, RoHS compliance, and options for illumination and color customization. Perfect for industrial, electronic, and control panel applications, it ensures reliable performance in demanding environments. With excellent electrical properties, high dielectric strength, and effective sealing against water ingress, this switch is an ideal choice for enhancing device interfaces and improving user interaction. Purchase now to upgrade your control systems effortlessly.
Order your multicomp Series MCPAS6D1-M1CES25 compact pushbutton switch today and enhance your control system with high durability and reliable operation.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCPAS6D1M1CES25?
You can click on the BUY or RFQ button to purchase MCPAS6D1M1CES25 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCPAS6D1M1CES25?
You can download the MCPAS6D1M1CES25 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCPAS6D1M1CES25?
MULTICOMP-PRO
