MULTICOMP PRO MCR13448Q101 Industrial Toggle Switch

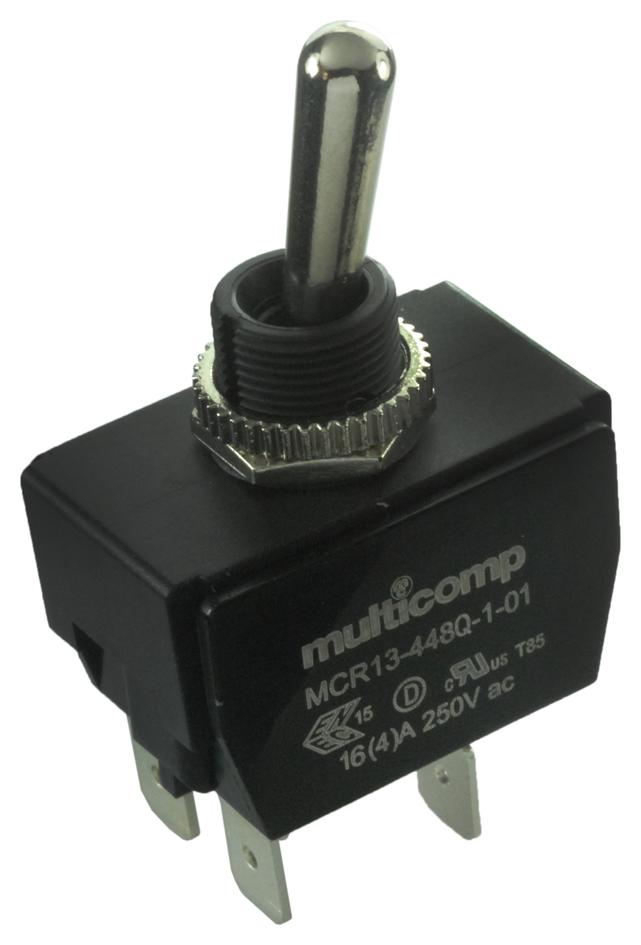

The MCR13-448Q-1-01 toggle switch is a durable double-pole single-throw (DPST) model suitable for industrial use. It features a nickel-plated metal toggle lever, quick-connect solder terminals, and a sturdy nylon frame for reliable operation. Rated for 16A at 277V AC and 20A at 277V AC, it offers excellent electrical performance with a contact resistance of 50 milliohms, insulation resistance of at least 100 megaohms at 500V DC, and dielectric strength of 1500VAC for one minute. The switch's robust design ensures longevity in demanding environments, making it ideal for control panels and automation systems.
MULTICOMP PRO MCR13448Q101 Industrial Toggle Switch Specifications:
- Rating: 16A 277V AC, 1HP; 20A 277V AC
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: DC 500V 100MΩ Min.
- Dielectric Strength: AC 1,500V for 1 minute
- Material: Metal lever, nylon frame, nylon bushing with glass fiber reinforcement, waterproof boot option available for lever #1
- Dimensions: Millimeters, with toggle lever nickel plated for corrosion resistance
- Waterproof Boot: Optional for lever #1
- Terminal Type: Quick-connect solder terminals
- Maximum Water Splash Resistance: 6 mm
Buy the multicomp Series Industrial Toggle Switch: MCR13-448Q-1-01
Purchase the multicomp Series MCR13-448Q-1-01 toggle switch online today to enhance your control systems with a robust, high-quality industrial switch. Featuring quick-connect solder terminals and a durable nylon frame, this switch delivers reliable performance with a contact resistance of just 50 milliohms, high insulation resistance, and 1500VAC dielectric strength. Its nickel-plated metal lever ensures longevity, while optional waterproof boot options make it suitable for harsh environments. Secure your project’s success with a trusted control component available for quick online ordering today.
Order your multicomp Series MCR13-448Q-1-01 industrial toggle switch today and ensure reliable performance in demanding control and automation projects.
