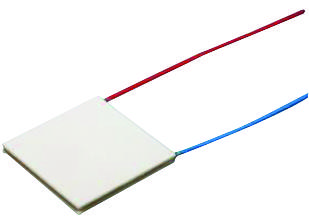

MULTICOMP PRO MCPE107106NCS Thermoelectric Cooler Module
Miniature cooling modules designed for thermal management of components such as infrared detector chips, microwave ICs, fiber-optic lasers, and detectors. Custom designs are available to meet specific requirements. All module types can be bonded using a heat sink bonder, with various finishes offered to suit different operating conditions. The standard devices accommodate a wide range of pellet geometries. Single-stage modules provide cooling capabilities from a few milliwatts up to several hundred watts. They are silicone-sealed for moisture protection. Multicomp products have a rating of 4.6 out of 5 stars, and come with a 12-month limited warranty. A high percentage of customers would recommend these products to others.
MULTICOMP PRO MCPE107106NCS Thermoelectric Cooler Module Specifications:
- Maximum Operating Voltage: 8.8 V
- Maximum Operating Current: 6 A
- Maximum Cooling Power: 29.7 W at Thot = 27°C
- Maximum Temperature Difference: 70°C at V max. and Qc max.
- Dimensions: 20 mm x 20 mm x 3.1 mm
- Internal Resistance: 1.050 Ω ±10%
- Solder Melting Point: 235°C
- Max. Compression: 1 MPa
- Operating Temperature Range: -40°C to +100°C
Buy the Buy Multicomp Peltier Cooler Part Number MCPE107106NCS Online
Discover the high-quality Multicomp thermoelectric cooler module ideal for thermal management of infrared detectors, microwave ICs, and fiber-optic lasers. This compact Peltier device offers efficient cooling with a maximum capacity of 29.7W at 27°C, a temperature difference of up to 70°C, and a robust silicone-sealed design for moisture protection. Easy to bond using heat sink bonder with various finishes, it’s suitable for sensitive electronic components. Ensure optimal performance by following handling recommendations for mechanical shock and flatness, making it perfect for precision cooling applications.
Get Multicomp Peltier Cooler MCPE107106NCS today—designed for efficient thermal management, moisture protection, and reliable cooling performance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCPE107106NCS?
You can click on the BUY or RFQ button to purchase MCPE107106NCS from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCPE107106NCS?
You can download the MCPE107106NCS datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCPE107106NCS?
MULTICOMP PRO
