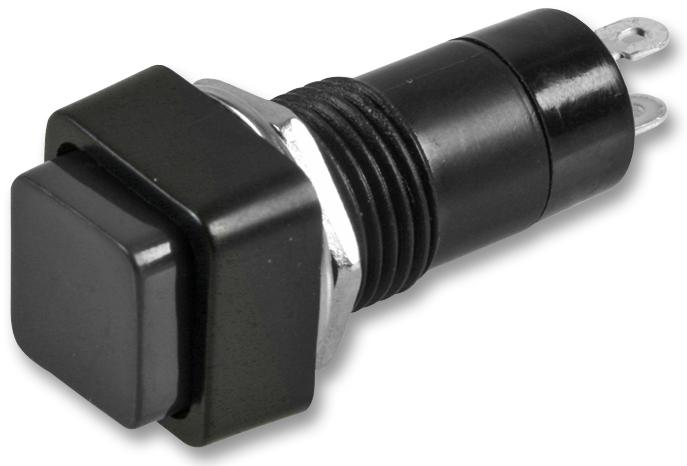

MULTICOMP-PRO MCPS23B2 Pushbutton Switch
This non-illuminated, square pushbutton switch offers reliable operation with a simple SPST contact configuration. Designed with quick connect terminals, it supports a rating of 1A at 125V AC or 250V AC. The contact resistance is a maximum of 30mΩ, with an insulation resistance of at least 100MQ at 500V DC. It features a dielectric strength of 1000V AC for one minute and is rated for at least 5,000 electrical cycles and 10,000 mechanical cycles. Made of copper alloy with silver or gold plating, it requires a push force greater than 0.3kg, making it ideal for panel applications requiring durable and straightforward switching.
MULTICOMP-PRO MCPS23B2 Pushbutton Switch Specifications:
- Contact Configuration: SPST
- Actuator: Non-illuminated, Square
- Terminal: Quick Connect Tab
- Rating: 1A at 125V AC/250V AC
- Contact Resistance: 30mΩ Max
- Insulation Resistance: 100MQ Min at 500V DC
- Dielectric Strength: 1000V AC/1 minute
- Electrical Life: 5,000 Cycles Min
- Mechanical Life: 10,000 Cycles Min
- Terminal Material: Copper Alloy with Silver or Gold Plating
- Push Force: > 0.3kg
- Dimensions: Panel mounting and actuator dimensions as per part numbers listed.
Buy the Multicomp Series Pushbutton Switch: MCPS23B2
Order the Non-Illuminated Square Pushbutton Switch from Multicomp Series today. Designed with SPST contact configuration and quick connect terminals, it supports 1A ratings at 125V or 250V AC. Built with durable copper alloy and gold or silver plating, this switch guarantees long-lasting operation with at least 5,000 electrical and 10,000 mechanical cycles. Easy to install and suitable for various control panel applications, it provides reliable, simple actuation in industrial settings.
Buy Multicomp Series MCPS23B2 now and experience unmatched reliability and performance in industrial control and panel applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCPS23B2?
You can click on the BUY or RFQ button to purchase MCPS23B2 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCPS23B2?
You can download the MCPS23B2 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCPS23B2?
MULTICOMP-PRO
