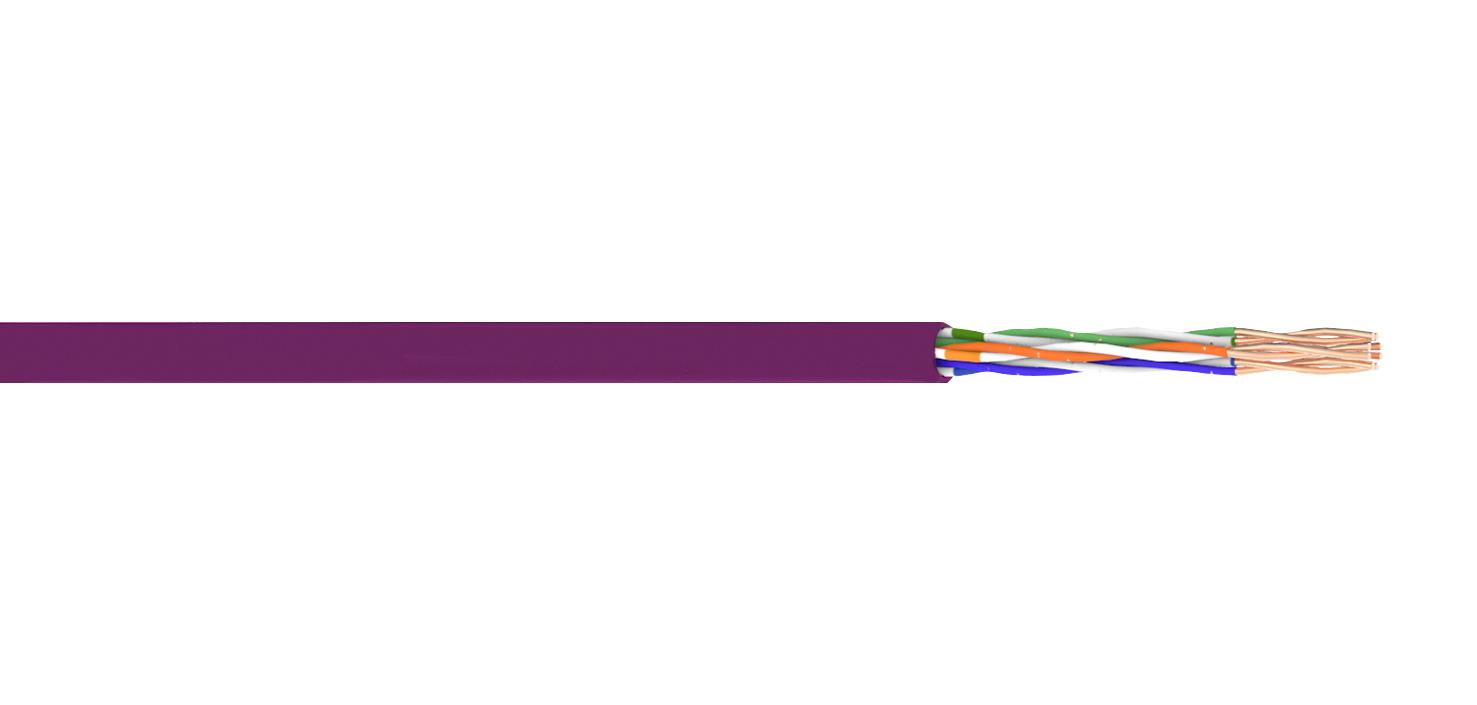

MULTICOMP PRO PP002137 Ethernet Cable
This Unscreened Cat 5e U/UTP LSZH cable is designed for high-performance data transmission, supporting speeds up to 1 gigabit per second and a frequency range of 100MHz. Made with solid copper conductors insulated with HDPE and housed in a Low Smoke Zero Halogen sheath, it ensures safety in fire-prone environments. Suitable for network installations, it features a violet sheath, four twisted pairs with color-coded cores, and robust construction for reliable Ethernet connectivity over long distances with minimal attenuation and interference.
MULTICOMP PRO PP002137 Ethernet Cable Specifications:
- Conductor: Class 1 solid copper
- Insulation: HDPE (High Density Polyethylene)
- Sheath: LSZH (Low Smoke Zero Halogen)
- Number of Pairs: 4
- Nominal Diameter: 0.88 mm
- Nominal Overall Diameter: 5 mm
- Nominal Weight: 11 kg per 305 m reel
- Core Identification: Pair 1: Blue, White/Blue; Pair 2: Orange, White/Orange; Pair 3: Green, White/Green; Pair 4: Brown, White/Brown
- Shell Color: Violet
- Temperature Rating: Fixed: -20°C to +50°C
- Minimum Bending Radius: Fixed: 5 x overall diameter, Flexed: 9 x overall diameter
- Standards: ISO/IEC 11801, TIA/EIA 568-C.2, YD/T1019
- Impedance: 100+15 Ohms
- Maximum DC Resistance: 110 Ohms at 20°C
- Attenuation at 100MHz: 22 dB
- NEXT at 100MHz: 35.3 dB
- Operating Frequency Range: 1 MHz to 100 MHz
- Phase Delay: 537.6 ns per 100 m
Buy the Buy Multicomp Unscreened Cat 5e U/UTP LSZH Cable Part Number PP002137 Online
Purchase the high-performance Ethernet cable online today and enjoy fast, secure network connections with fire-retardant LSZH insulation. This four-pair, 24 AWG U/UTP cable supports gigabit Ethernet at 100MHz frequency, perfect for demanding network environments requiring safety and durability. Its solid copper conductors and low smoke halogen-free sheath ensure safety in case of fire, while the violet color aids easy identification. Ideal for long distance data transmission, this cable combines superior insulation, minimal attenuation, and robust construction for seamless installation and reliable operation.
Buy Multicomp PP002137 now and experience reliable, fire-safe Ethernet connectivity for your network with durable performance and minimal interference.
Frequently Asked Questions
Where can I buy MULTICOMP PRO PP002137?
You can click on the BUY or RFQ button to purchase PP002137 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part PP002137?
You can download the PP002137 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of PP002137?
MULTICOMP PRO
