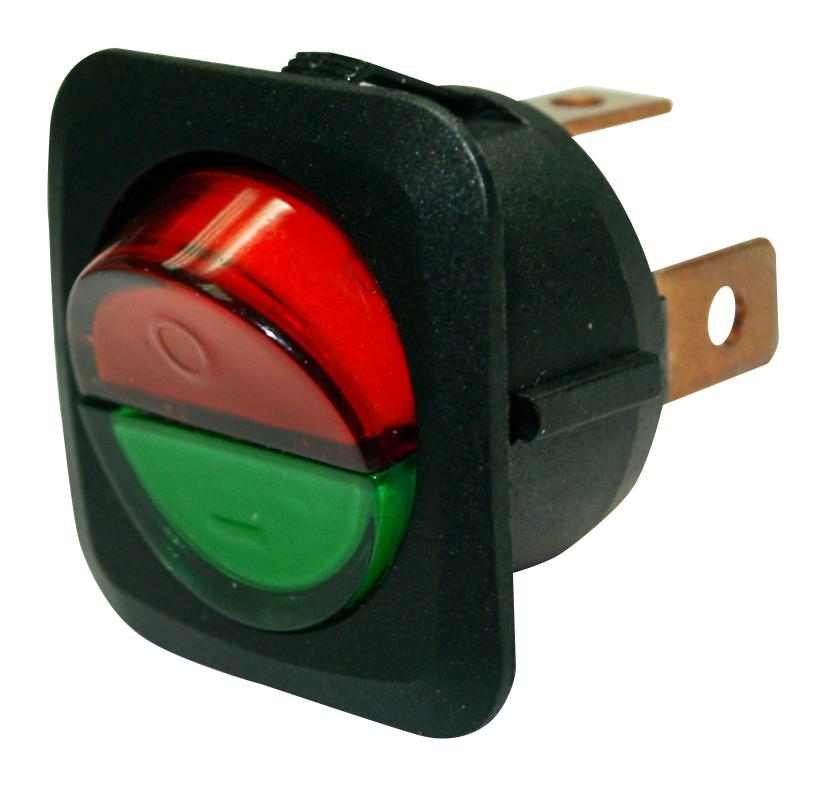

MULTICOMP PRO MCR13203AL301BGRGR1 Illuminated Rocker Switch
The illuminated round rocker switch features a 25A/12V DC rating and is designed for panel mounting. It includes green and red LEDs for indication, with a contact resistance of 50mΩ max and insulation resistance of 100MQ min at 500VDC. Made from durable Nylon 6.6 frame and PC actuators, the switch operates between -25°C and +85°C. The device provides a simple On-Off SPST function with quick connect terminals, suitable for industrial and control applications requiring reliable switching and visual status indicators.
MULTICOMP PRO MCR13203AL301BGRGR1 Illuminated Rocker Switch Specifications:
- Switch Function: 3P, SPST, On-Off (2 x LED)
- Switch Mounting: Panel
- Switch Terminal: Quick Connect
- Actuator Type: Round, | — O Marking Illuminated
- Illumination Type: LED Green/Red
- Ratings: 25A/12V DC
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 100MQ Min. @ 500VDC
- Dielectric Strength: 500V AC/1 minute
- Operating Temperature: -25°C to +85°C
- Material: Frame Nylon 6.6 (94V-2), Black; Actuator PC (94V-2), Green/Red; Terminals Copper Alloy
Buy the Multicomp 224005 – Reliable Illuminated Rocker Switch for Industrial Applications
Enhance your control systems with this illuminated round rocker switch featuring green and red LEDs for visual status indication. Rated at 25A/12V DC, it provides reliable switching for industrial applications. The switch mounts easily on panels with quick connect terminals, ensuring quick installation and durability. Made from high-quality nylon and polycarbonate, it withstands harsh environments with an operating temperature range from -25°C to +85°C. Its compact, robust design makes it ideal for a variety of manufacturing and control systems requiring dependable operation and clear indicator lights.
Buy Multicomp 224005 now and experience unmatched reliability and performance for industrial control panels and automation systems.
