MULTICOMP PRO MCRJ332768F1220HOW Crystal Resonator
The MCRJ332768F1220HOW is a 32.768 kHz crystal resonator designed for precise clock and timing applications. It features a load capacitance of 12.5 pF, shunt capacitance of 1.50 pF, and an equivalent series resistance of 25kΩ max. It operates across a temperature range of -40°C to +70°C and is RoHS compliant. This through-hole component offers stability under temperature cycling, vibrational, and mechanical stress with tested durability, making it ideal for reliable electronic timing solutions in various devices.
MULTICOMP PRO MCRJ332768F1220HOW Crystal Resonator Specifications:
- Frequency: 32.768 KHz
- Load Capacitance: 12.5 pF
- Shunt Capacitance: 1.50 pF
- Equivalent Series Resistance: 25kΩ Max.
- Operating Temperature Range: -40°C to +70°C
- Age: +2 ppm Max.
- Insulation Resistance: 500 MΩ Min.
- Frequency Tolerance (25°C): +20 ppm
- Vibration Resistance: 10-55Hz, 0.75mm amplitude
- Shock Resistance: Drop from 30cm three times
- RoHS Compliant
- Normal Life Cycle Tests: Thermal shock, humidity, mechanical stress
- Lead Bending Force: 0.9 kg for 10 sec.
- Solderability: 95% coverage at 240°C for 3.2 sec.
- Material: Ceramic resonator with metal electrodes
- Size: Through-hole standard package

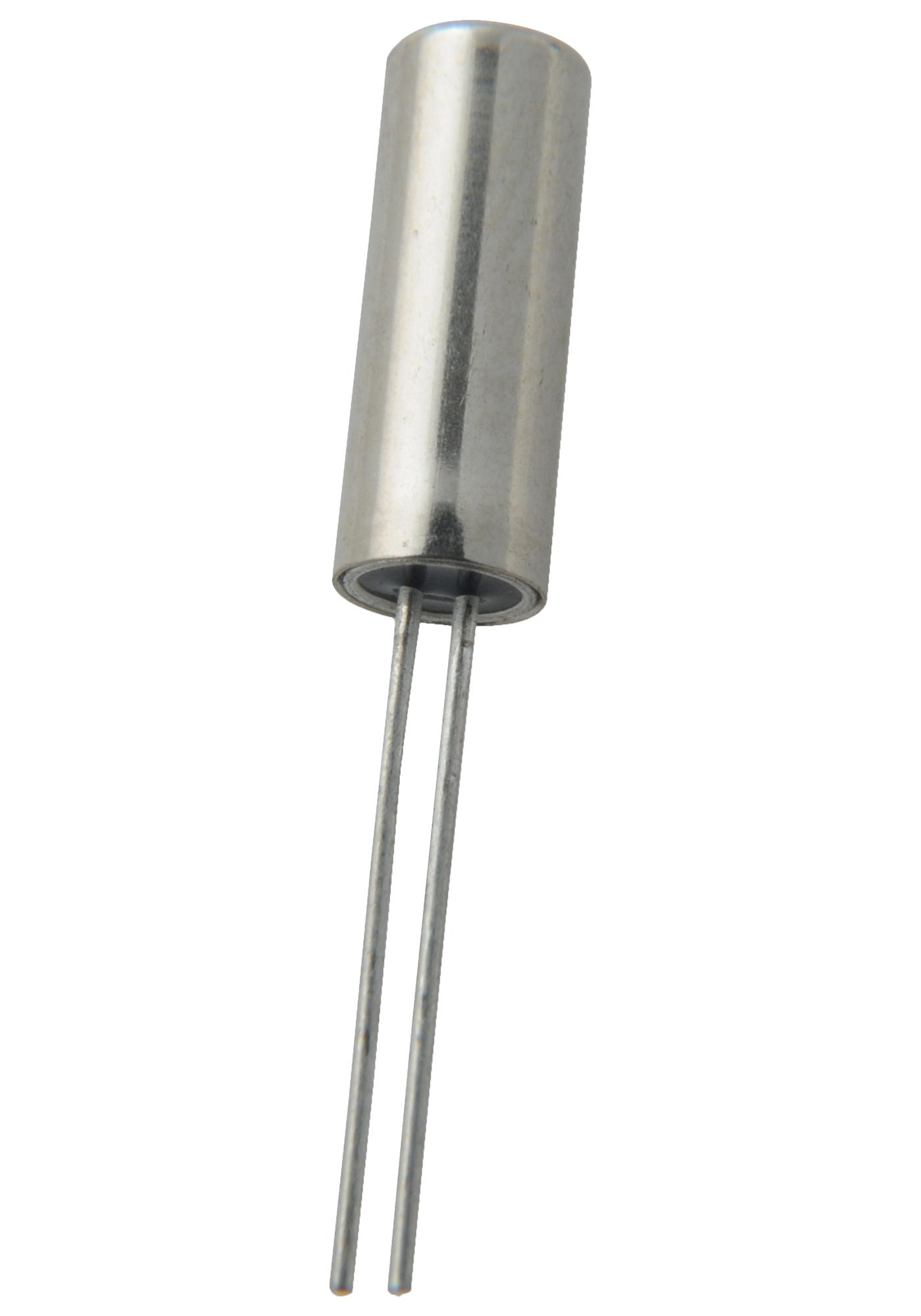

Buy the Buy SPC Crystal Resonator Part Number MCRJ332768F1220HOW Online
Purchase the SPC Series crystal resonator, model MCRJ332768F1220HOW, online today for your clock and timing needs. This high-quality component offers excellent stability across temperature variations and mechanical stresses, making it perfect for various electronic devices. It features a load capacitance of 12.5 pF, shunt capacitance of 1.50 pF, and is RoHS compliant. With proven durability, vibration resistance, and low resistance, this product guarantees reliable operation in demanding environments—order now for fast delivery and excellent performance.
Order your SPC SeriesMCRJ332768F1220HOW crystal resonator today and ensure precise timing for your electronic projects with reliable stability and endurance.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCRJ332768F1220HOW?
You can click on the BUY or RFQ button to purchase MCRJ332768F1220HOW from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCRJ332768F1220HOW?
You can download the MCRJ332768F1220HOW datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCRJ332768F1220HOW?
MULTICOMP PRO
