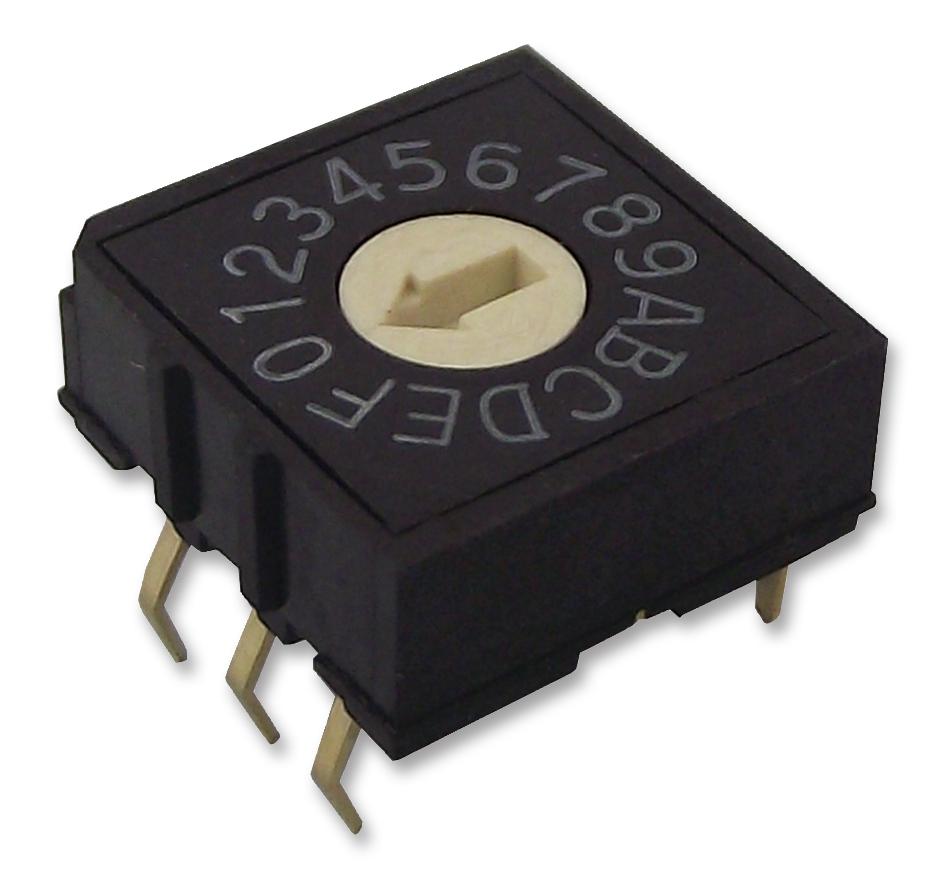

MULTICOMP PRO MCRS3AF16RVB Rotary Switch
This rotary switch provides 16 positions and features a durable high-temperature thermoplastic structure with gold-plated brass terminals for reliable electrical contact. Designed for industrial applications, it supports up to 20,000 switching cycles, with a maximum switching current of 25mA at 24V DC. The switch operates efficiently within temperature ranges of -25°C to +80°C, ensuring resilience in demanding environments. It has a compact 10x10mm footprint with options for through-hole mounting, balanced for long-lasting performance and precise control in automation and control panels.
MULTICOMP PRO MCRS3AF16RVB Rotary Switch Specifications:
- Mechanical Life: 20,000 steps
- Operating Temperature: -25°C to +80°C
- Material: UL94V-0 High-temp thermoplastic (base & cover), Brass with gold plated terminals
- Electrical Life: 20,000 cycles
- Switching Rating: 24V DC, 25mA
- Contact Resistance: 100mΩ initial, 200mΩ after test
- Insulation Resistance: 100MΩ at 250V DC
- Voltage Proof: 250V AC for 1 min
- Dimensions: 10x10mm, through-hole mounting
- Color: Black (base & cover), White (knob)
Buy the Buy Multicomp Rotary Switch Part Number MCRS3AF16RVB Online
Purchase the Multicomp Rotary Switch MCRS3AF16RVB online today and elevate your control systems with a high-quality, durable switch that offers 16 positions. Designed for industrial environments, it supports up to 20,000 switching cycles, ensuring long-term performance. Its compact size, gold-plated contacts, and high-temperature thermoplastic construction make it suitable for demanding applications. Enjoy quick, secure ordering and fast delivery, making your project more efficient and dependable with this precision control component.
Buy Multicomp MCRS3AF16RVB now and experience reliable operation with 16 control positions and long-lasting durability for industrial automation.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCRS3AF16RVB?
You can click on the BUY or RFQ button to purchase MCRS3AF16RVB from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCRS3AF16RVB?
You can download the MCRS3AF16RVB datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCRS3AF16RVB?
MULTICOMP PRO
