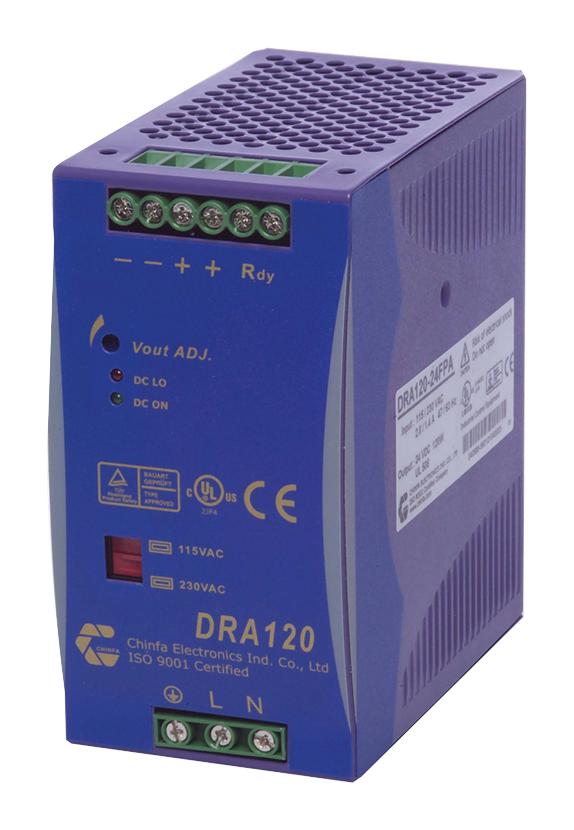

MULTICOMP PRO MPDRAN12024A Industrial Power Supply
The MPDRAN12024A is a reliable DIN rail-mounted AC-to-DC power supply that features Power Factor Correction (PFC) and SELV components for enhanced safety. It offers various output voltages of +12V, +24V, and +48V with respective current ratings, ensuring efficient power delivery for industrial applications. Designed for high efficiency up to 87%, it includes internal surge voltage protection, isolation resistance of 100MΩ at 500VDC, and a wide operating temperature range. Its metal case ensures durability, suitable for power management and automation systems, backed by a 3-year warranty and compliance with RoHS and UL standards.
MULTICOMP PRO MPDRAN12024A Industrial Power Supply Specifications:
- Input Voltage: 115/230V AC (auto select)
- Rated Input Current: 2.2/0.83A at 115/230V AC
- Input Frequency: 47-63Hz
- Output Voltage Options: +12V, +24V, +48V
- Output Currents: 10A for 12V, 5A for 24V, 2.58A for 48V
- Efficiency: Up to 87%
- Power Dissipation: 48W (at 48V, 2.58A)
- Isolation Voltage: 3,000/4,242 VAC/V DC (input-output)
- Isolation Resistance: 100MΩ at 500VDC
- Ripple & Noise: 50mV at 20MHz BW
- Operating Temperature: -35°C to +71°C
- Enclosure: Metal, IP20 rated
- Dimensions: 124.5mm x 64mm x 123.6mm
- Weight: 920g
- MTBF: 600,000 hours (48V model)
- Certification: UL 508, UL 60950-1, RoHS compliant
Buy the Multicomp MPDRAN12024A – Reliable Industrial Power Supply for Automation Systems
Purchase the Multicomp MPDRAN12024A online to ensure reliable and efficient power delivery for your industrial automation setups. This DIN rail mount power supply features high efficiency up to 87%, surge protection, and RoHS compliance, making it ideal for power management, automation, and control systems. Its robust metallic case provides durability and IP20 protection, suitable for a wide range of industrial applications. Trust in the 3-year warranty and certified safety standards to deliver consistent performance for your power solutions. Buy now for seamless integration and dependable operation.
Get Multicomp MPDRAN12024A today—built for precision, efficiency, and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MPDRAN12024A?
You can click on the BUY or RFQ button to purchase MPDRAN12024A from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MPDRAN12024A?
You can download the MPDRAN12024A datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MPDRAN12024A?
MULTICOMP PRO
