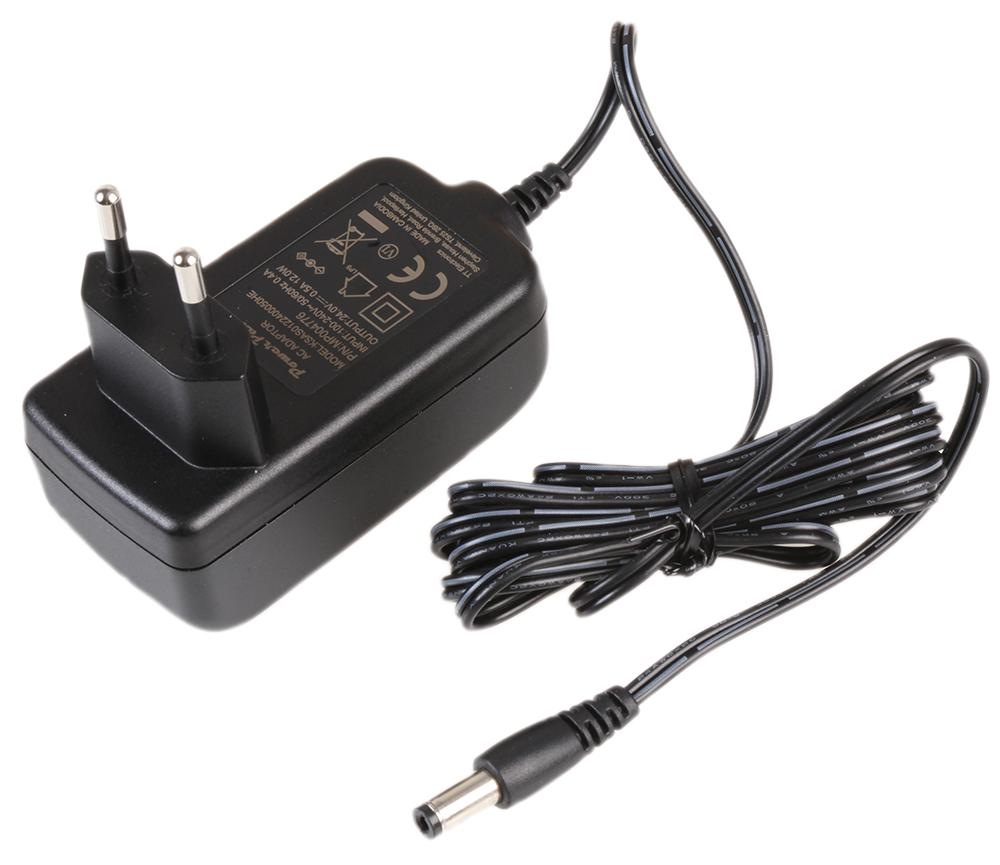

MULTICOMP PRO MP004776 Power Adapter
This compact 12-watt European wall plug adapter delivers a stable 24V DC output at 0.5A current, ideal for general power applications. It features a European fixed AC head, high efficiency of 83.26%, and complies with RoHS, CE, FCC, and safety standards. The switch-mode power supply has a size of approximately 78.98 mm in length, 41 mm in width, and 49.2 mm in height, weighing 85 grams. Designed to operate within temperature ranges of 0°C to +50°C, it offers overcurrent and short-circuit protection, making it reliable for various electronic devices and automation equipment.
MULTICOMP PRO MP004776 Power Adapter Specifications:
- Input Voltage Range: 100V AC to 240V AC
- Input Frequency Range: 47Hz to 63Hz
- Input Current Max: 0.4A
- Output Voltage Rating: 24V
- Output Current Range: 0.5A
- Output Min Current: 0.01A
- Output Connection: 2.1mm x 5.5mm x 12mm Centre Positive – Straight
- Total Output Regulation: +5%
- Line and Load Regulation: 45%
- Ripple & Noise: 240mVp-p
- Efficiency: Min 83.26%
- Over Current Protection: Yes
- Short-Circuit Protection: Yes
- Operating Temperature: 0°C to +50°C
- Storage Temperature: -20°C to +80°C
- Operating Humidity: 10% to 90%
- Storage Humidity: 10% to 90%
- Safety Standard: TUV, CE
- EMI Standard: FCC Part 15 Class B, EN55022 Class B, EN55024, EN 61000-4 series
- Leakage Current: 0.25mA max
- MTBF: 50,000 hours
- Size: Max 78.98 mm (L) x 41 mm (W) x 49.2 mm (H)
- Weight: 85g
- Regulator Type: Switched Mode Power Supply
Buy the Multicomp Series Power Adapter: 12W 24V DC 0.5A MP004776
Enhance your electronic devices with the multicomp 12W European wall plug adapter, providing a steady 24V DC output at 0.5A. Designed for efficiency and safety, it features overcurrent and short-circuit protection, high compliance with standards, and a compact size ideal for various applications. Its robust construction ensures durability in operating temperatures from 0°C to +50°C, making it suitable for industrial, automation, or general-purpose use. Easy to install, reliable, and energy-efficient, this adapter is the perfect choice for both professional and personal projects.
Buy multicomp MP004776 12W Power Adapter now and experience reliable performance and safety for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP004776?
You can click on the BUY or RFQ button to purchase MP004776 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP004776?
You can download the MP004776 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP004776?
MULTICOMP PRO
