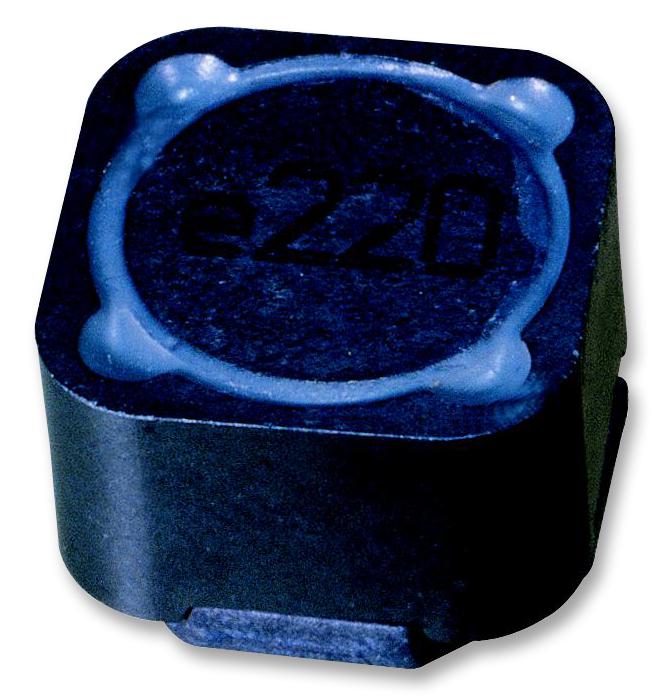

MULTICOMP PRO MCSDRH125B8R2MHF Power Inductor
The multicomp power inductors series MCSDRH73B and MCSDRH125B feature ferrite-based SMD construction designed for efficient power conversion in compact spaces. These high-current chokes are suitable for LCD drivers, DC-DC converters, notebooks, and high-density electronic boards. The MCSDRH73B series supports up to 8A with a maximum height of 3.55mm, while the MCSDRH125B series handles up to 24.2A with a maximum height of 6mm. Both series have footprints of 7.6x7.6mm and 12.5x12.5mm respectively, ensuring reliable performance with low core loss and high efficiency across temperature range -55°C to +130°C. Ideal for power line regulation and electronic device applications.
MULTICOMP PRO MCSDRH125B8R2MHF Power Inductor Specifications:
- Inductance Range: 0.82 µH to 330 µH
- Maximum Height: 3.55mm for MCSDRH73B series, 6mm for MCSDRH125B series
- Footprint: 7.6mm x 7.6mm for MCSDRH73B, 12.5mm x 12.5mm for MCSDRH125B
- Operating Temperature: -55°C to +130°C
- Core Material: Ferrite
- DCR (Max): 0.0039 Ω to 0.589 Ω depending on model
- Isat (A): Up to 24.2A for MCSDRH125B series, up to 8A for MCSDRH73B series
- Irms (A): Up to 88.9A for MCSDRH125B series, up to 6.7A for MCSDRH73B series
- Operating Frequency: 100 kHz
- Application: DC/DC converters, power line regulation, high density boards
- RoHS Compliant, Ferrite based with low core loss
- Temperature Range: -55°C to +130°C
Buy the Multicomp Series MCSDRH125B Power Inductor: MCSDRH125B8R2MHF
Enhance your electronic projects with the high-capacity multicomp power inductor MCSDRH125B8R2MHF. Designed for demanding DC-DC conversions, this low-profile inductor offers up to 24.2A current handling capacity and excellent efficiency. Its compact 12.5x12.5mm footprint makes it suitable for space-constrained high-density layouts. With robust ferrite core material and temperature tolerance up to 130°C, it provides dependable power regulation. Ideal for notebooks, LCD drivers, and complex electronic systems, this inductor guarantees durability, low DCR, and consistent performance in your applications.
Order your Multicomp Series MCSDRH125B8R2MHF power inductor today and ensure reliable high-current performance for your electronic power supplies.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCSDRH125B8R2MHF?
You can click on the BUY or RFQ button to purchase MCSDRH125B8R2MHF from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCSDRH125B8R2MHF?
You can download the MCSDRH125B8R2MHF datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCSDRH125B8R2MHF?
MULTICOMP PRO
