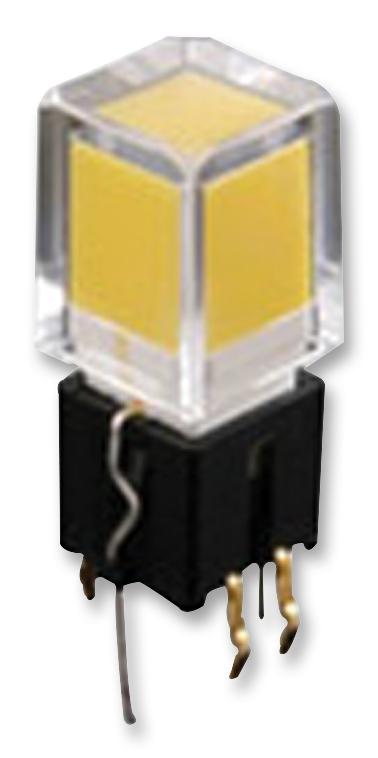

MULTICOMP PRO MCSPHN7YCA043T Tactile Noiseless Switch
The MCSPH Series is a reliable, tactile, noiseless switch with a 50mA current rating and 12V DC voltage rating, featuring a durable construction with polycarbonate and polyamide materials. Designed for industrial applications, it offers an operating temperature range from -10°C to +60°C, with a minimum life of 1,000,000 cycles. The switch incorporates brass terminals with gold plating and stainless steel action domes, ensuring long-term performance and stability. It comes in various colors with vertical and flat configurations, suitable for panel mounting and precise control functions.
MULTICOMP PRO MCSPHN7YCA043T Tactile Noiseless Switch Specifications:
- Current Rating: 50mA
- Voltage Rating: 12V DC
- Dielectric Withstanding Voltage: 250V AC for 1 minute
- Contact Resistance: 100mΩ Max. (initial)
- Insulation Resistance: 100MO Min.
- Operating Force: 230gf + 50gf (Tactile) / 60gf + 10gf (Noiseless)
- Total Travel (Tactile): 0.3mm + 0.1mm
- Total Travel (Noiseless): 1.0mm + 0.3mm
- Operating Life: 1,000,000 cycles Min.
- Solder Temperature: 260°C for 3 seconds
- Function: Momentary (SPST)
- Operating Temperature: -10°C to +60°C
- Materials: Cap – Polycarbonate, Base – Polyamide, Reflector – POM, Switch Terminal – Brass with gold plating, Action Dome – Stainless steel with silver plating, Sealing Rubber – Silicone
- Dimensions: Refer to PCB layout & circuit diagram
Buy the Multicomp Reliable Tactile Noiseless Switch for Industrial Applications
Order the Multicomp MCSPHN7YCA043T tactile noiseless switch today and enhance your control panels with a highly durable, long-lasting component. This switch supports up to 50mA current and operates smoothly with a travel distance of 1.0mm noiseless and 0.3mm tactile. Its robust polycarbonate and polyamide construction ensures great resistance to wear and environmental conditions, providing consistent performance over millions of cycles. Available in various colors for easy integration into your projects—buy online now for quick delivery and excellent service.
Buy Multicomp MCSPHN7YCA043T now and experience unmatched reliability and performance in industrial control systems.
