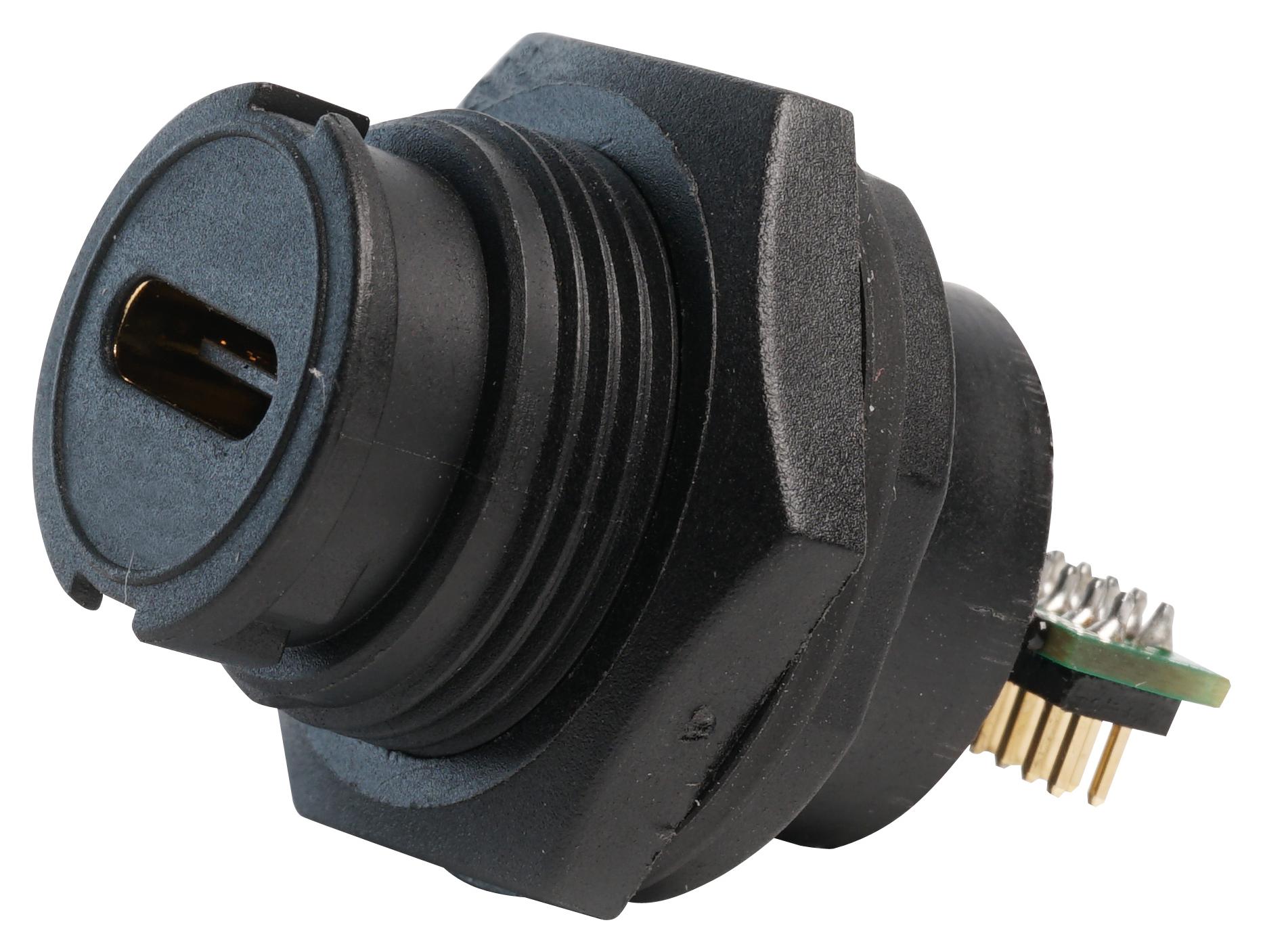

MULTICOMP PRO MP002443 USB Type C Sealed Connector
The MP USB sealed plastic connectors are robust, environmentally sealed panel-mount connectors designed for demanding applications. They meet IP67 standards for environmental protection and are fully rear potted to protect the internal components even when unmated or without the sealing cap. These connectors are available with DIP terminations or pre-wired with a USB Type C 3.1 plug or socket. Features include a 16mm cut-out fitting, bayonet mating mechanism, gold-plated contacts, and suitability for audio, automation, process control, and communication applications.
MULTICOMP PRO MP002443 USB Type C Sealed Connector Specifications:
- IP Rating: IP67
- Panel Thickness: 0.8mm to 3mm
- Recommend Torque: 9 to 10Kgf-cm
- Housing Material: Thermoplastic, Black
- Contacts Material: Copper Alloy, Au 30u" Plated
- Shell Material: Stainless Steel, Au Plated
- Cable Jacket: Black Thermoplastic (TPE), OD: 4.8mm
- Connector Type: USB Type C Male/Female Solder Type
- Pins: 30u" Gold Plated Over Nickel
- Insulator: Black Thermoplastic or LCP 94V-0 Rated
- Cable Construction: UL21572, with multiple twisted pairs
- Dimensions: Fits 16mm panel cut-out, overall length varies
- Sealed with bayonet locking mechanism for secure connection
- Suitable for audio, automation, communication, and process control applications
Buy the multicomp U+2013 Reliable USB Type C Sealed Connectors for Industrial Applications
Enhance your industrial connectivity with multicomp's sealed USB Type C connectors designed for robustness and environmental sealing. These panel-mount connectors feature gold-plated contacts and a secure bayonet locking mechanism, ensuring reliable connections in harsh conditions. Compatible with both DIP and pre-wired configurations, they suit automation, communication, and process control systems. Easy to install with a 16mm cut-out, these IP67-rated connectors provide long-lasting performance and protection against dust and water ingress. Purchase online today for superior reliability and installation convenience.
Buy multicomp USB Type C sealed connectors now and experience unmatched environmental protection and durable performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002443?
You can click on the BUY or RFQ button to purchase MP002443 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002443?
You can download the MP002443 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002443?
MULTICOMP PRO
