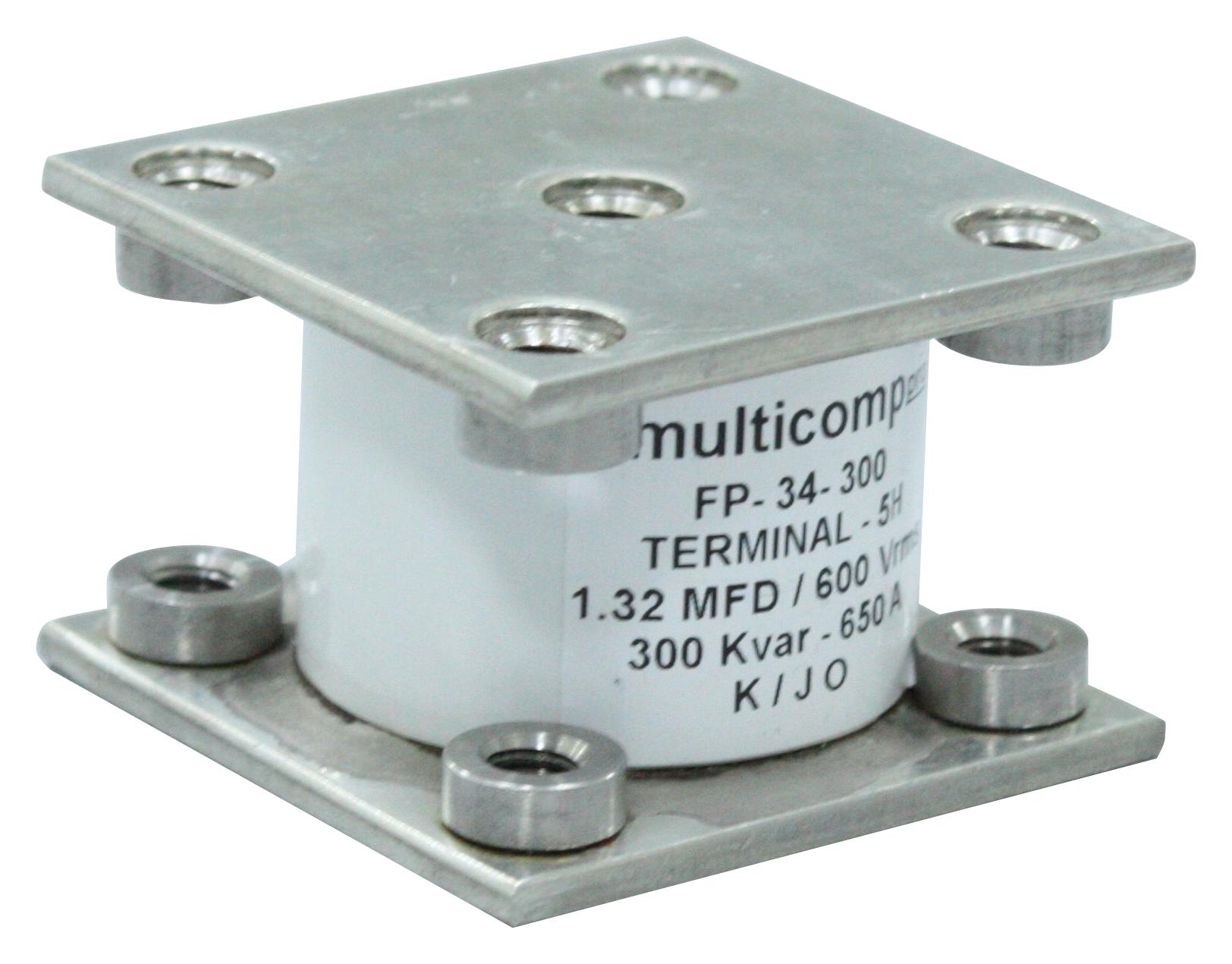

MULTICOMP PRO MP004051 Power Film Capacitor
Power film capacitors with screw and stud terminals designed for high-frequency applications up to 700kHz. Featuring polypropylene dielectric, self-healing properties, and RoHS compliance. These capacitors operate at maximum temperatures of 85°C, offer a capacitance tolerance of ±10%, and feature flame retardant UL94-V0 rated housings. Suitable for industrial power filtering, motor drive circuits, and power conditioning. Models range in voltage from 600V to 1000V RMS and capacitance from 0.33μF to 2.4μF, with different current capacities and dimensions ensuring high reliability and stability under demanding conditions.
MULTICOMP PRO MP004051 Power Film Capacitor Specifications:
- Capacitance range: 0.33μF to 2.4μF
- Voltage ratings: 600V RMS to 1000V RMS
- Maximum operating temperature: 85°C
- Capacitance tolerance: ±10%
- Dielectric Type: Polypropylene
- Feature: Self-healing
- Flame retardant: UL94-V0
- Operating frequency: up to 700kHz
- Terminal Style: Screw/Stud
- Tightening torque: 20Nm max
- Dimensions vary by model, typical sizes include lengths around 50mm, widths approximately 34mm, heights up to 187mm
- Current capacities: up to 650A
- Maximum power: up to 300KVAR
- Certified RoHS compliant
Buy the Multicomp Power Film Capacitors – Reliable Power for Industrial Applications
Discover the reliable power film capacitors suitable for industrial electronics, motor drives, and power filtering. Featuring polypropylene dielectric and UL94-V0 flame retardant housing, these capacitors operate up to 700kHz with maximum temperature 85°C. Available in varied voltage ratings from 600V to 1000V RMS and capacitance from 0.33μF to 2.4μF, they ensure high performance, durability, and stability under demanding conditions. Purchase online today and enhance your industrial power systems with trusted quality and safety standards.
Get Multicomp power film capacitors today—built for high-frequency stability and long-lasting durability.
