MULTICOMP PRO MP003982 DC Link Capacitors
These DC Link Film Capacitors with screw and stud terminals are designed for high-reliability power electronic applications such as wind and solar inverters, electric vehicle drives, and motor control systems. Constructed with metallized polypropylene film and preformed UL 94-VO plastic cases, they feature low ESR, self-inductance as low as 11nH, high thermal conductivity, and a life expectancy up to 100,000 hours. Their robust design supports voltages up to 1800 V DC, with capacitance ranging from 30µF to 265µF, making them ideal for demanding DC filtering and inverter applications.
MULTICOMP PRO MP003982 DC Link Capacitors Specifications:
- Electrode material: Metallised polypropylene film
- Winding construction: Polypropylene film, metallised polypropylene film
- Enclosure: UL 94-VO plastic case with resin fill
- Terminals: Nickel plated brass
- Capacitance range: 30UF to 265UF
- Capacity tolerance: ±10%
- Rated voltage V DC: 700V, 800V, 900V, 1000V, 1200V, 1400V, 1600V, 1800V
- Test voltage between terminals: 1.3× rated voltage for 60 seconds
- Test voltage terminal to case: KV AC at 50Hz for 60 seconds
- Dissipation factor (Tan d): 0.0015 at 100Hz
- Temperature range: 0°C to +105°C
- Insulation resistance: 000 MΩ x µF at 25°C
- Markings: Grade, capacitance in pF, rated voltage, max current, tolerance, part number
- Dimensions: Varies with voltage and capacitance, up to 85x79 mm

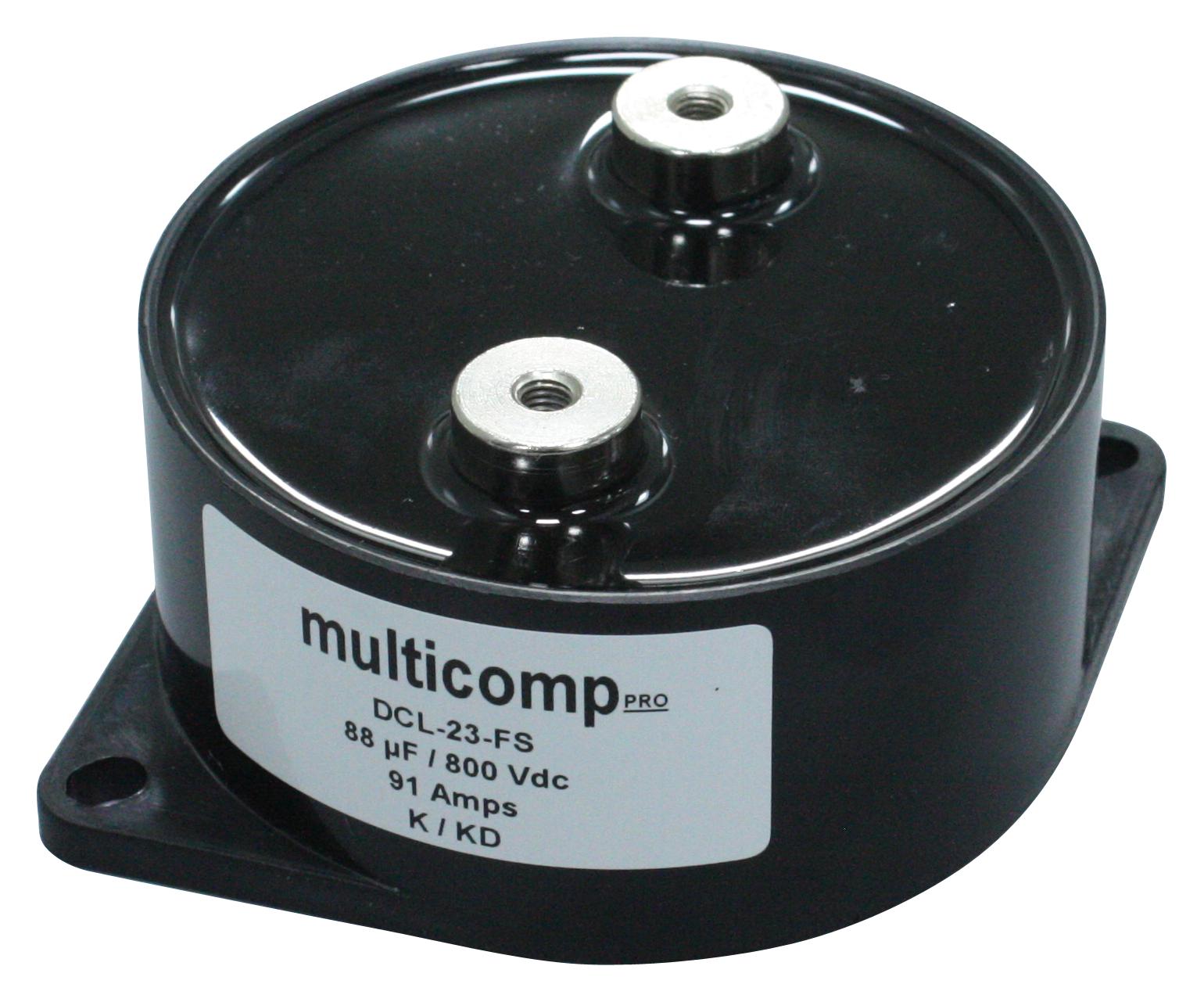

Buy the Buy multicomp DC Link Film Capacitors Part Number MP003982 Online
Order multicomp MP003982 DC Link Capacitors online today to enhance your power electronic systems. These robust capacitors offer low ESR, high thermal conductivity, and rated voltages up to 1800V DC, ensuring durability and high performance in demanding applications like inverters, electric vehicle drives, and motor control. With a life expectancy of up to 100,000 hours, they are ideal for professional electronic projects requiring reliable and long-lasting power filtering solutions. Purchase now and experience seamless integration and dependable operation.
Buy multicomp MP003982 now and ensure reliable power filtering with durable, high-voltage DC link film capacitors for inverter and motor drive applications.
