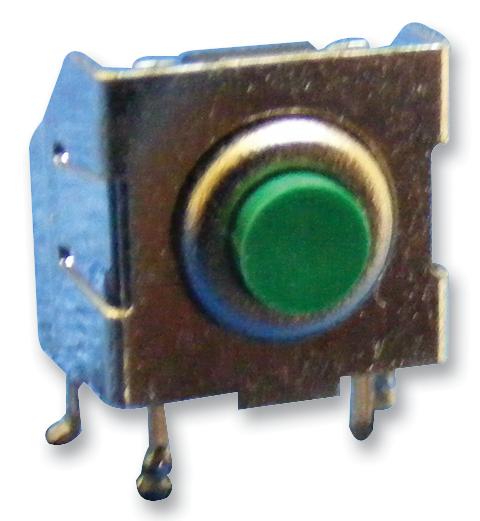

MULTICOMP PRO MCTA31R2V Right Angle Tactile Switch
This right-angle tact switch from Multicomp Pro offers reliable tactile feedback with a 2.3mm travel distance, operating force of 180 +50gf, and a rated electrical life of 200,000 cycles. Designed for applications requiring high durability, it features a nylon high-temperature thermoplastic base, silver-plated brass contacts, and silicone rubber seals for environmental resistance. Suitable for PCB mounting via soldering, it operates within -25°C to +70°C. The switch's compact size and robust construction make it ideal for industrial and consumer electronic devices needing precise, long-lasting tactile input solutions.
MULTICOMP PRO MCTA31R2V Right Angle Tactile Switch Specifications:
- Operating Force: 180 +50gf
- Minimum Stroke: 0.15mm
- Operating Temperature Range: -25°C to +70°C
- Storage Temperature Range: -30°C to +80°C
- Electrical Life: 200,000 cycles
- Rating: 1.5mA, 5V DC
- Max. Contact Resistance: 100mΩ
- Min. Insulation Resistance: 100MO at 500V DC
- Dielectric Strength: 250V AC/1 minute
- Contact Arrangement: 1 pole, 1 throw
- Cover Material: Stainless steel
- Stem Material: Nylon high-temperature thermoplastic
- Color: White (180gf), Red (260gf)
- Contact Material: Stainless with silver plating
- Seal Material: Silicone rubber
- Base Color: Black
- Terminal Process: Soldering, RoHS compliant
- Maximum Soldering Temperature: 260°C
- Soldering Method: Hand soldering using 30W soldering iron or reflow with peak temp 260°C
- Dimensions: Vary by model, e.g., 2.3mm, 2.8mm, 4.0mm, 4.35mm travel distance, detailed in datasheet
Buy the Multicomp Series R/A Tactile Switch: MCTA31R2V
Discover the durable and reliable right-angle tactile switch from Multicomp Pro, featuring a compact design and high operating force. This switch is ideal for precise input in industrial, consumer, and electronic applications. With a lifespan of 200,000 cycles, RoHS compliance, and sealed construction, it ensures consistent performance even in demanding environments. Solderable for easy PCB mounting, it operates efficiently within -25°C to +70°C. Equip your devices with this high-quality switch for longevity, durability, and excellent tactile feedback.
Order your Multicomp Series R/A tactile switch MCTA31R2V today and give your electronic projects the dependable tactile response they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTA31R2V?
You can click on the BUY or RFQ button to purchase MCTA31R2V from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTA31R2V?
You can download the MCTA31R2V datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTA31R2V?
MULTICOMP PRO
