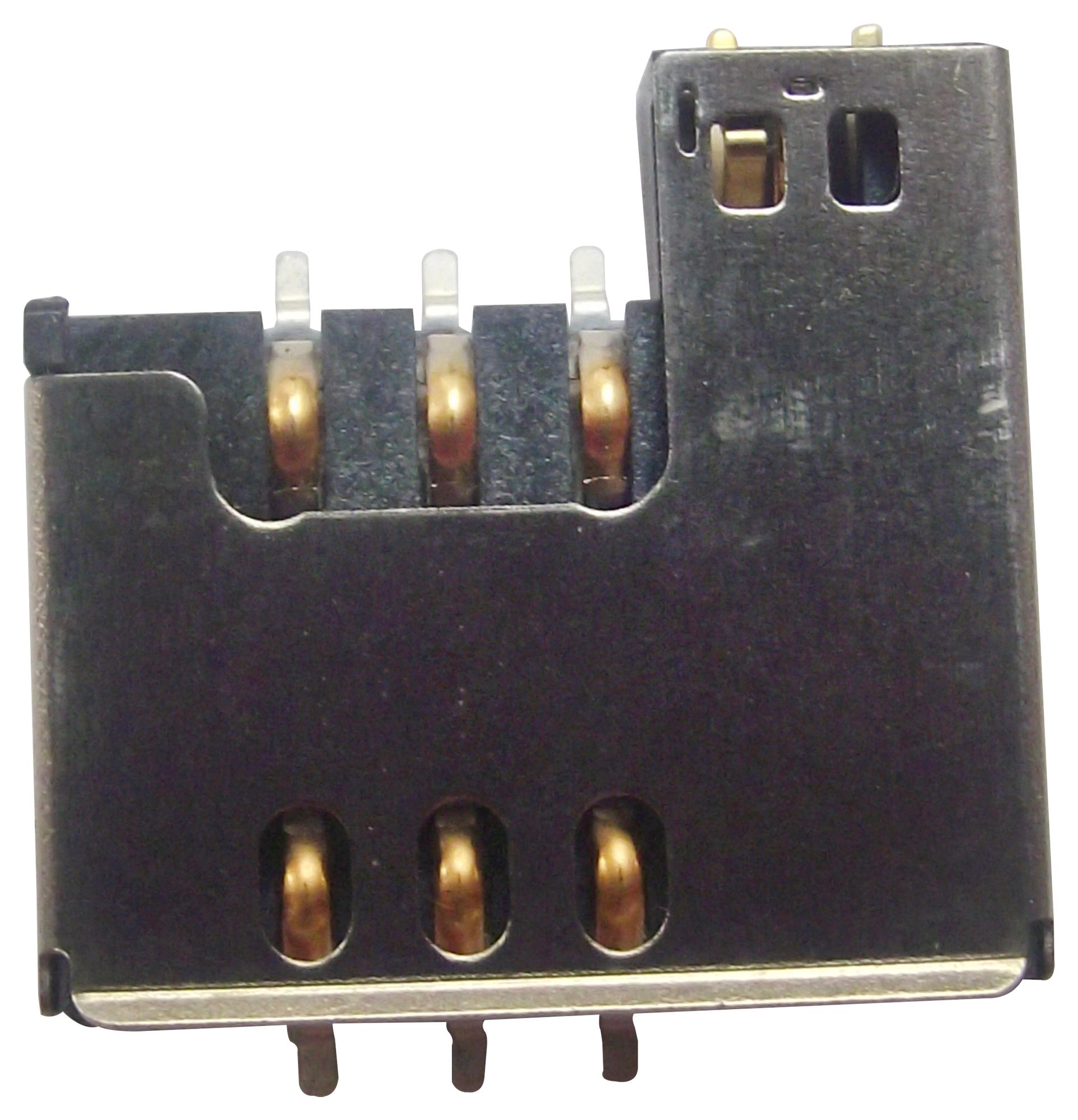

MULTICOMP PRO SIMMP00603BR09B SIM Card Connector
This 6-pin SIM card connector features a switch and durable construction with phosphor bronze contacts, gold-plated terminals, and a robust LCP housing. It offers a voltage rating of 50V AC and a current rating of 1A, with a temperature range from -40°C to +85°C. The connector withstands 100,000 cycles and is designed for reliable electronic connections in communication devices. It complies with UL94-0 flammability standards and includes a recommended PCB layout for easy integration. Ideal for SIM card applications in industrial and consumer electronics.
MULTICOMP PRO SIMMP00603BR09B SIM Card Connector Specifications:
- Material: Phosphor Bronze (C5191-H)
- Housing: LCP UL94-0 Black
- Terminal Plating: Gold fog tin, nickel in metal contact points
- Voltage Rating: 50V AC
- Current Rating: 1A
- Insulation Resistance: 1,000 MΩ Min.
- Contact Withstanding Voltage: AC 500V for 1 Minute
- Temperature Range: -40°C to +85°C
- Durability: 100,000 cycles Min.
- Finish: Tin welding points, minimal 100μm thickness
- Dimensions: Millimetres, specific layout provided
- Standards: UL94-0 flammability, RoHS compliant
- Recommended PCB layout included
- Switch integrated for functionality
- Weight and other dimensions vary per model
- Application: SIM card modules in communication and industrial electronics
Buy the Multicomp Pro SIM Card Connector – Reliable 6-pin Switch for Industrial Applications
Purchase the Multicomp Pro SIM Card Connector online today and enhance your electronic device with a durable, high-performance 6-pin interface featuring an integrated switch. This connector offers excellent electrical and mechanical reliability, with gold-plated contacts and a robust housing, suitable for industrial and communication applications. Easy to integrate with a recommended PCB layout, it withstands tough operational cycles and temperature variations. Secure your order now to ensure seamless connectivity and long-term performance in your electronic projects.
Buy Multicomp Pro SIMMP-00603BR09B now and experience unmatched reliability and performance in communication device assembly.
Frequently Asked Questions
Where can I buy MULTICOMP PRO SIMMP00603BR09B?
You can click on the BUY or RFQ button to purchase SIMMP00603BR09B from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part SIMMP00603BR09B?
You can download the SIMMP00603BR09B datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of SIMMP00603BR09B?
MULTICOMP PRO
