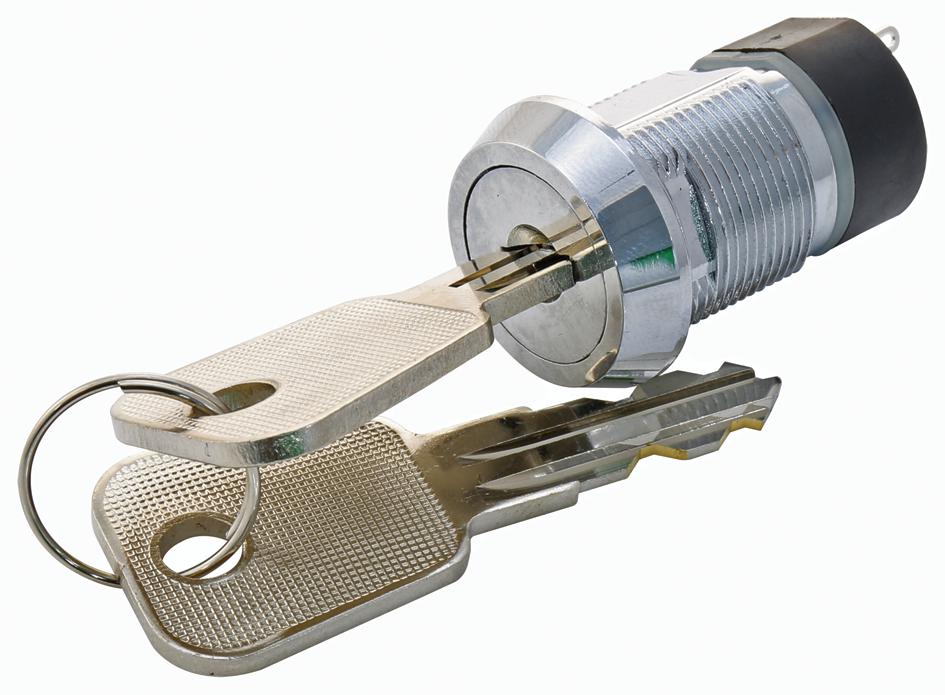

MULTICOMP PRO S286A2 Keylock Switch
The Keylock Switches are designed with a zinc alloy die cast housing that is chrome plated for durability and aesthetics. They feature a 5-disk tumblers mechanism for enhanced security and usability. The switches utilize a reversible double cut key made of nickel-plated brass, with silver-plated contacts and terminals for reliable electrical connections. These switch models are available with 150 combination options, offering various pole and terminal configurations, including 2-position and 4-position options, suitable for industrial control and electrical safety applications. The switches support a contact rating of 4A at 125V AC and 2A at 250V AC, with excellent insulation resistance and dielectric strength for safety compliance.
MULTICOMP PRO S286A2 Keylock Switch Specifications:
- Housing: zinc alloy die cast, chrome plated
- Mechanism: 5-Disk tumblers
- Key Material: Brass, nickel plated
- Contacts: Silver plated with terminals
- Number of Combinations: 150
- Contact Rating: 4A at 125V AC, 2A at 250V AC
- Max. Contact Resistance: 10mΩ
- Insulation Resistance: 500MΩ at 500V DC
- Dielectric Strength: 1,500V AC for 1 minute
- Pole Configurations: 2-position and 4-position options
- Terminal Types: 2NC, 1NC, 2NO, 2NC depending on model
- Key Pull Positions: Off-On, On-On
- Dimensions: Millimetres, various per model
Buy the Buy Multicomp Keylock Switches Part Number S286A2 Online
Secure your control systems with the high-quality Keylock Switch from Multicomp. Featuring durable zinc alloy housing, multiple pole options, and reliable contact ratings, this switch ensures safe operation in industrial applications. Its 5-disk tumblers mechanism and nickel-plated brass key provide added security. Available with 150 configurations including 2-position and 4-position models, supporting efficient electrical control. Order online now to benefit from fast delivery and ensure your safety and security with this robust, corrosion-resistant locking switch designed for demanding environments.
Buy Multicomp S286A2 lock switch now and enhance your industrial control safety with reliable locking mechanisms and secure electrical contacts.
