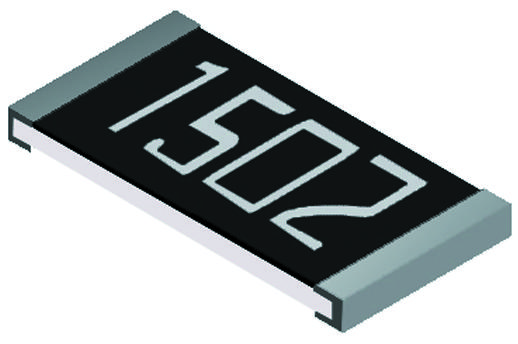

MULTICOMP PRO MCTF0805DTC1001 Thin Film Resistor
The MCTF series thin film nickel-chromium resistor offers a wide resistance range from 4.70 ohms to 1 megaohm with extremely tight tolerances down to 0.01%. Built on an alumina substrate with layered construction including Ag, Pd, NiCr, and epoxy overcoat, this 0805-sized resistor is ideal for precision electronic applications. It features stable temperature coefficients, excellent electrical performance, and passivation for enhanced durability. Suitable for high-precision measurement, communication devices, and industrial automation, its robust construction makes it a reliable choice for demanding environments.
MULTICOMP PRO MCTF0805DTC1001 Thin Film Resistor Specifications:
- Resistance Range: 4.70Ω to 1 megaohm
- Tolerance: as low as 0.01%
- Temperature Coefficient: ±5PPM/°C
- Voltage Rating: 100V Operating, 200V Overload
- Power Rating: 1/10W at 70°C
- Size: 0805 (1206 metric)
- Construction: Alumina substrate with layered resistive film
- Construction Layers: Bottom Electrode (Ag), Top Electrode (Ag-Pd), Resistor Layer (NiCr), Barrier Layer (Ni), External Electrode (Sn), Epoxy Overcoat
- Operating Temperature Range: -55°C to +155°C
- Environmental Resistance: Passivated for stability, withstands thermal shocks, damp heat, and soldering heat
- Marking: Z 4992
- Packaging: Paper tape, 5000 pcs/reel, suitable for automated pick-and-place assembly
- Compliance: RoHS compliant
Buy the Buy Multicomp Precision Thin Film Resistor Part Number MCTF0805DTC1001 Online
Order the Multicomp MCTF0805DTC1001 online today to ensure your electronics are equipped with high-precision, reliable thin film resistors. These resistors feature resistance values from 4.70 ohms to 1 megaohm with tolerances as tight as 0.01%, making them perfect for medical, communication, automation, and measurement applications. Built on a robust alumina substrate with layered construction, passivation, and stable electrical characteristics. Available in convenient tape packaging for easy automation, these resistors deliver consistent performance in challenging environments, backed by a 12-month warranty.
Buy Multicomp MCTF0805DTC1001 now and experience unmatched reliability and high precision performance in your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTF0805DTC1001?
You can click on the BUY or RFQ button to purchase MCTF0805DTC1001 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTF0805DTC1001?
You can download the MCTF0805DTC1001 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTF0805DTC1001?
MULTICOMP PRO
