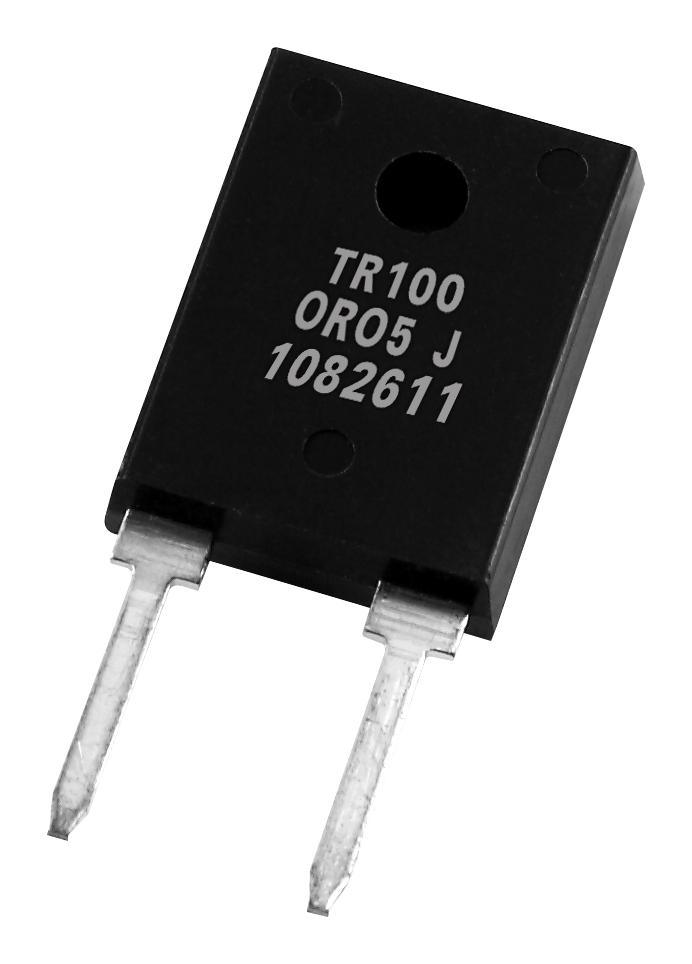

MULTICOMP PRO MCTR100JDD1001 High Power Resistor
The multicomp power resistor offers 100 watts at 25°C case temperature, housed in a TO-247 style package with an electrically isolated mold, making it suitable for high-power applications like gate resistors, snubbers, load resistors, and voltage regulation. Its non-inductive, thermally efficient design features alumina substrate construction for reliability in demanding environments, with a rated voltage of 700V max and a working temperature range of -65°C to +175°C. The resistor's environment-resistant features include withstand testing for moisture, thermal shock, and vibration, making it ideal for durable power systems.
MULTICOMP PRO MCTR100JDD1001 High Power Resistor Specifications:
- Power Rating: 100W at 25°C case temperature
- Resistance Range: 0.050-1MΩ
- Resistance Tolerance: ±5%, ±10%, ±100%
- Temperature Coefficient: ±200 PPM/°C
- Operating Voltage: Max 700V
- Dielectric Strength: 1,800V AC
- Insulation Resistance: ≥10 GΩ
- Working Temperature Range: -65°C to +175°C
- Lead Material: Tinned Copper
- Case Material: Molded ceramic with alumina substrate
- Dimensions: Length approximately 0.98 inches (25mm), width 0.55 inches (14mm), height 0.48 inches (12.2mm)
- Mounting: Single M3 screw, heat sink mounting
- Environmental Resilience: Moisture resistance, thermal shock, vibration, and overload tested
- Certifications: RoHS compliant
Buy the Multicomp Series Power Resistor: MCTR100JDD1001
Purchase the multicomp high power resistor MCTR100JDD1001 online today. Designed for demanding applications with 100W power capacity, this resistor features a compact TO-247 package, non-inductive construction, and RoHS compliance. It is ideal for power supplies, voltage regulation, snubbers, and load resistors, offering reliable performance in industrial environments. Its excellent thermal management, moisture resistance, and durability ensure long-lasting operation. Order now and enhance your power system with this robust, high-quality resistor engineered for efficiency and reliability.
Get multicomp MCTR100JDD1001 today—built for high power, reliability, and durable performance in demanding circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCTR100JDD1001?
You can click on the BUY or RFQ button to purchase MCTR100JDD1001 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCTR100JDD1001?
You can download the MCTR100JDD1001 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCTR100JDD1001?
MULTICOMP PRO
