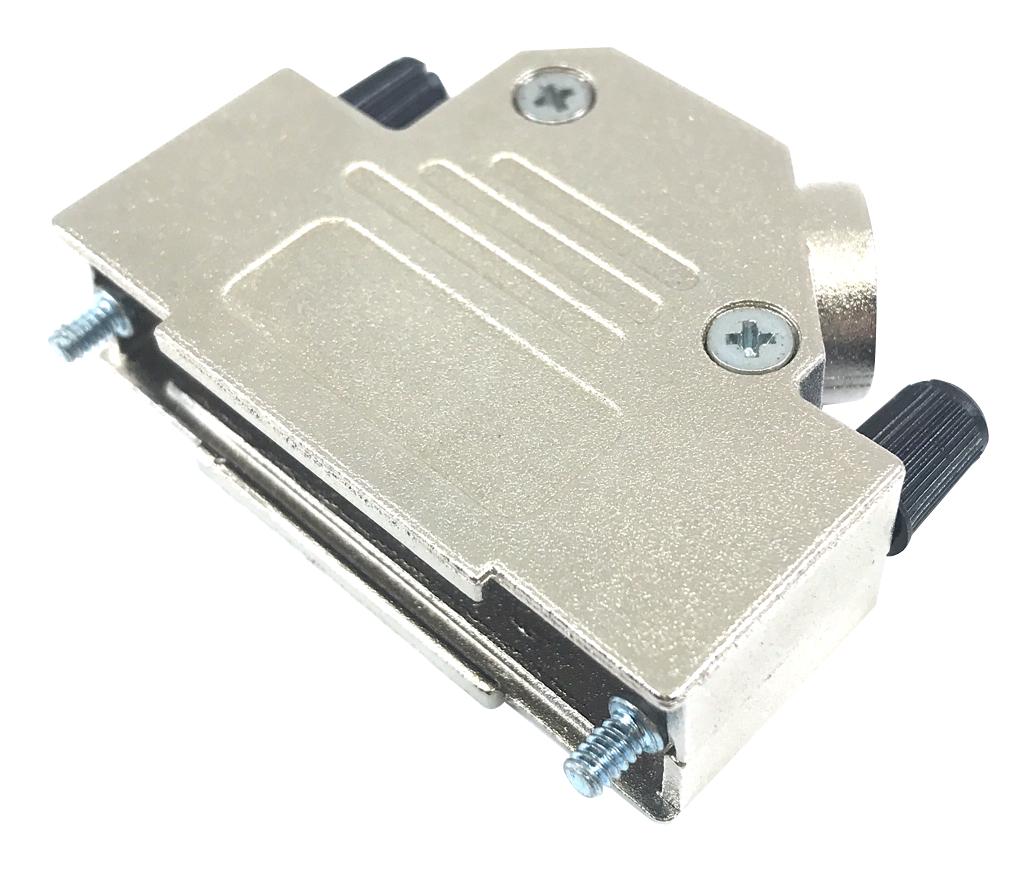

MULTICOMP PRO MP002014 D-Sub Connector with Backshell
This angled D-Sub connector with backshell is designed for reliable signal and power connections in industrial and electronic applications. Made from zinc with Nickel plating, it features a polycarbonate strain relief and steel shell with tin plating for durability. Suitable for cable diameters from 13 mm to 23 mm, it offers a high attenuation factor of over 40dB between 30 MHz and 1GHz, ensuring minimal interference. The connector supports Taptite thread forming screws, angled outlet, and operates within -55°C to +105°C, meeting UL94 V-0 flame rating and electrical standards.
MULTICOMP PRO MP002014 D-Sub Connector with Backshell Specifications:
- Material: Zinc, Ni-plated shell; PBT insulator; steel, tin-plated shell
- Temperature Range: -55°C to +105°C
- Cable Strain Relief: Polycarbonate UL94 VO
- Cable Diameter: 13 to 23 mm
- Locking Screws: Long jackscrews UNC 4-40
- Assembly Screws: Taptite thread forming
- Cable Outlet: Angled
- Attenuation Factor: > 40dB between 30 MHz and 1GHz
- Insulator Resistance: > 1000MO
- Withstand Voltage: 1kV for 1 min
- Contact Material: Copper alloy, with Gold over Nickel plating
- Operating Temp: -55°C to +105°C
Buy the Multicomp Series D-Sub Connector: MP002014
Order the Multicomp MP002014 D-Sub connector with backshell online today and enjoy seamless installation, robust metal design, and high attenuation to minimize interference. Perfect for industrial, electronics, and signal applications, this angled connector ensures secure, reliable connections. Constructed with zinc and steel components, it withstands extreme temperatures from -55°C to +105°C and meets high industry standards. With compatible cable diameters of 13 to 23 mm, it offers ease of use, durability, and excellent electrical performance, making it an ideal choice for demanding environments.
Buy Multicomp MP002014 now and experience reliable high-performance connections with excellent EMI shielding and robust construction.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MP002014?
You can click on the BUY or RFQ button to purchase MP002014 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MP002014?
You can download the MP002014 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MP002014?
MULTICOMP PRO
