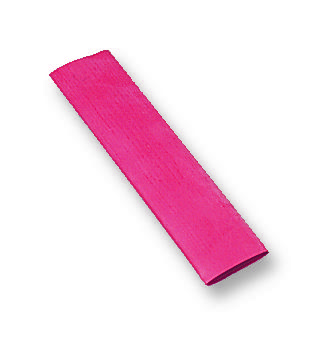

MULTICOMP PRO 13670 Heat Shrink Tubing
The heat shrink tubing offers excellent physical, chemical, and electrical properties with flame retardant and flame resistance features. Designed for general-purpose applications, it provides a 2:1 shrink ratio, ensuring reliable insulation, abrasion, and solvent resistance. Suitable for wiring and electrical insulation, the tubing operates within a temperature range of -55°C to +125°C, with a minimum shrink temperature of 70°C. It demonstrates high tensile strength, elongation, dielectric strength, and volume resistance, making it ideal for electrical, electronic, and industrial use. Available in various sizes and colors, including black, red, yellow, white, brown, and green/yellow, to suit diverse requirements.
MULTICOMP PRO 13670 Heat Shrink Tubing Specifications:
- Shrink Ratio: 2:1
- Operating Temperature Range: -55°C to +125°C
- Minimum Shrink Temperature: 70°C
- Tensile Strength: 14.8 Mpa
- Elongation: 460%
- Tensile Strength After Aging: 14.5 Mpa
- Elongation After Aging: 480%
- Dielectric Strength: 217 kV/mm
- Volume Resistance: 21 x 10750 cm
- Physical Wall Thickness: 0.22 +0.1 mm (3/64 inch), 0.28 +0.1 mm (1/16 inch), 0.35 +0.1 mm (3/32 inch), 0.4 +0.1 mm (1/8 inch), 0.5 +0.1 mm (3/16 inch), 0.55 +0.1 mm (1/4 inch), 0.6 +0.1 mm (3/8 inch), 0.8 +0.15 mm (3/4 inch), 0.9 +0.15 mm (1 inch), 1.0 +0.15 mm (1-1/4 inch), 1.4 mm (1-1/2 inch), 1.5 mm (2 inch), 2.0 mm (3 inch), 2.5 mm (4 inch), 3.0 mm (6 inch), 4.0 mm (8 inch)
Buy the Buy DrO-POWER Heat Shrink Tubing Part Number 13670 Online
Order DrO-POWER heat shrink tubing with part number 13670 online today and enjoy fast delivery. Perfect for electrical insulation, wire bundling, and protecting components. With a 2:1 shrink ratio, high electrical resistance, and flame retardant properties, this tubing ensures safety and durability in industrial and electronic applications. Choose from various sizes and colors to meet your specific needs. Shop online now and enhance your electrical projects with high-quality, flame-retardant heat shrink tubing that provides excellent chemical and physical protection while maintaining flexibility and performance.
Buy DrO-POWER 13670 heat shrink tubing now and experience reliable insulation, high temperature resistance, and excellent electrical properties in your projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 13670?
You can click on the BUY or RFQ button to purchase 13670 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 13670?
You can download the 13670 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 13670?
MULTICOMP PRO
