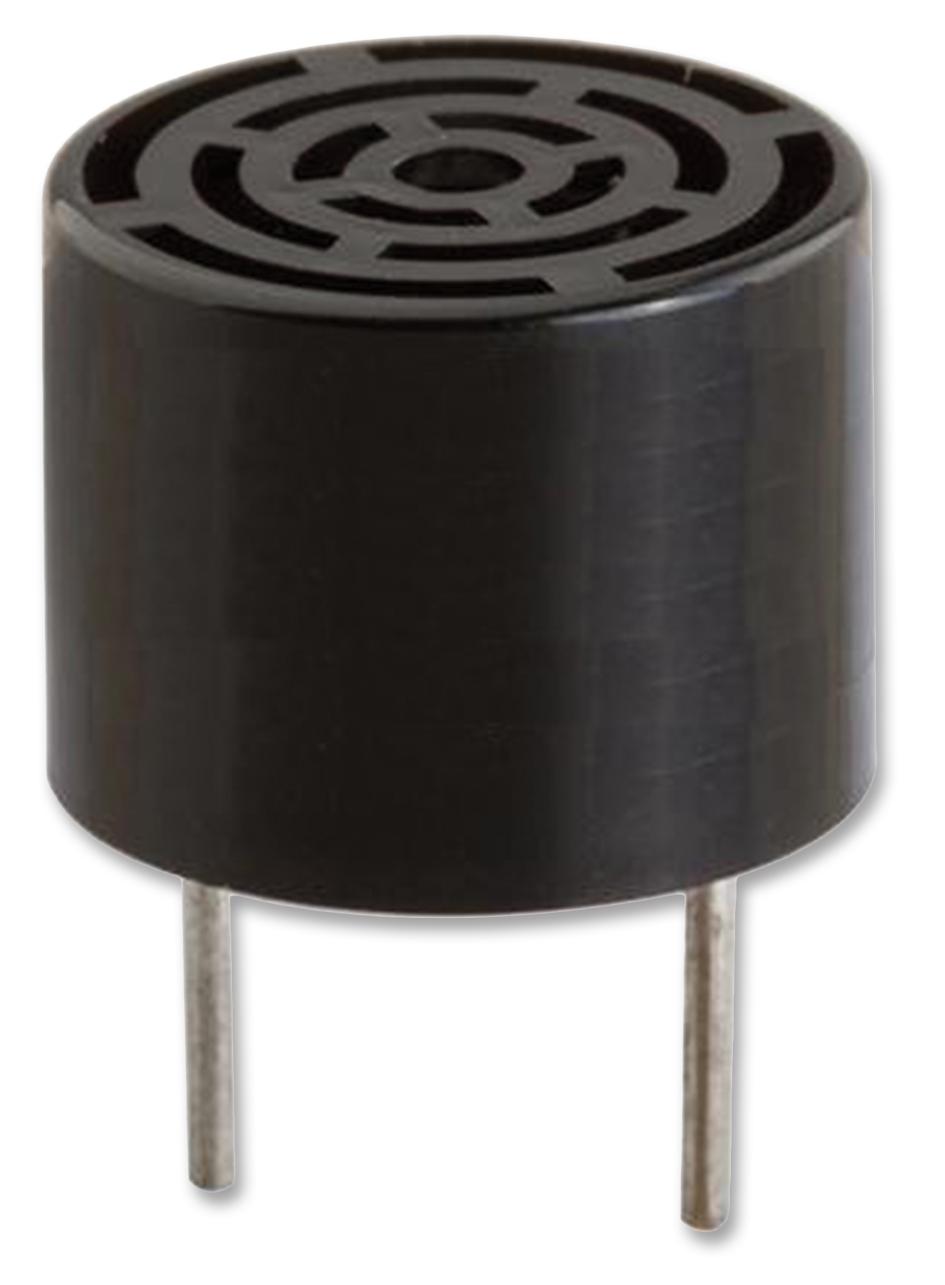

MULTICOMP PRO MCUSD16P40B12RO Ultrasonic Transceiver
The MCUSD16P40B12RO is a 40kHz ultrasonic transceiver with open structure and dual-use functionality, suitable for burglar alarms, range finders, automatic doors, and remote control systems. This compact, lightweight device offers high sensitivity with a minimum sound pressure level of 112dB at 30cm/10V rms. It operates within a temperature range of -30°C to 85°C, has a capacitance of 3,000pF at 1kHz, and features a directivity of 50°. The transceiver ensures high reliability, low power consumption, and effective signal transmission for various ultrasonic applications.
MULTICOMP PRO MCUSD16P40B12RO Ultrasonic Transceiver Specifications:
- Frequency: 40 + 1kHz
- Sound Pressure Level: min. 112dB at 30cm/10V rms
- Receive Sensitivity: min.-74dB/V/ubar
- Directivity: 50°
- Aftershock Time: max. 1.5ms
- Sensitivity Distance: 0.6m to 16m
- Capacitance: 3,000pF ±20% at 1kHz
- Operating Temperature Range: -30°C to 85°C
- Allowable Input Voltage: 120Vp-p (40kHz)
- Housing Material: Plastic
- Soldering Conditions: 350°C to 400°C
Buy the Multicomp Series Ultrasonic Transceiver: MCUSD16P40B12RO
Purchase the Multicomp Series ultrasonic transceiver MCUSD16P40B12RO online today and improve your range finding, burglar alarm, or remote control systems. This 40kHz device delivers high sensitivity with a sound pressure level of 112dB, a directivity of 50°, and operates between -30°C to 85°C. Its compact design makes it ideal for various applications, ensuring reliable performance and low power consumption. Get this ultrasonic transceiver now to enhance your automation and security projects effortlessly.
Order your Multicomp Series ultrasonic transceiver MCUSD16P40B12RO today and enhance your ultrasonic sensing applications with reliable, high-performance technology.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCUSD16P40B12RO?
You can click on the BUY or RFQ button to purchase MCUSD16P40B12RO from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCUSD16P40B12RO?
You can download the MCUSD16P40B12RO datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCUSD16P40B12RO?
MULTICOMP PRO
