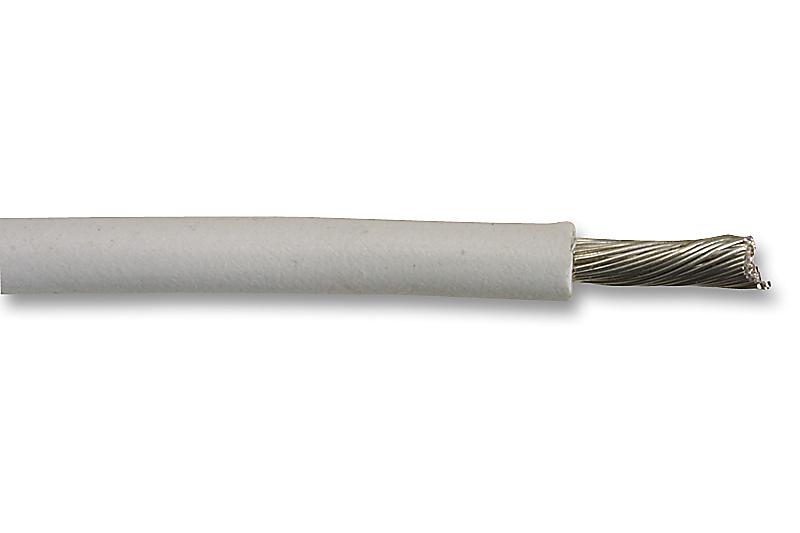

MULTICOMP PRO MP005364 Hook-up Equipment Wire
The product is a hook-up equipment wire compliant with Defence Standard 61-12 Part 6 Type 2 and BS 4808 Part 2 Class 2, suitable for internal telecommunication and electronic wiring. Featuring stranded Tinned Annealed Copper conductors insulated with hard PVC, it supports voltage up to 1000V AC, with a minimum bend radius of 10 times the outer diameter, and an operating temperature range of -15°C to +85°C. It ensures high insulation resistance and voltage testing standards for reliable electrical connections.
MULTICOMP PRO MP005364 Hook-up Equipment Wire Specifications:
- Construction: Stranded Tinned Annealed Copper Conductor
- Insulation Material: Hard PVC
- Maximum Voltage: 1000V AC (rms)
- Minimum Bend Radius: 10 x O.D. mm
- Operating Temperature Range: -15°C to +85°C
- Insulation Resistance: 50MQ.km at 20±5°C
- Spark Test: 4000V AC
- Voltage Test: 1.5kV AC
- Standard Compliance: Defence Standard 61-12 Part 6 Type 2, BS 4808 Part 2 Class 2
- Conductor Diameter: 0.2mm and 0.6mm options
- RoHS Compliant
- Suitable for internal wiring of electronics and telecommunication equipment
Buy the Buy Multicomp Equipment Wire Part Number MP005364 Online
Discover the high-performance multicomp equipment wire, perfect for telecommunications and electronics. Featuring tinned copper conductors with PVC insulation, it offers excellent electrical properties, high insulation resistance, and compliance with industry standards. Available in various colors and lengths, it ensures durability and safety for internal wiring. Buy online today to benefit from fast delivery and quality assurance. Ideal for technicians and engineers seeking reliable wiring solutions in electronic applications.
Get Multicomp Equipment Wire MP005364 today—designed for reliable electronic and telecom wiring, with durable PVC insulation and high current capacity.
