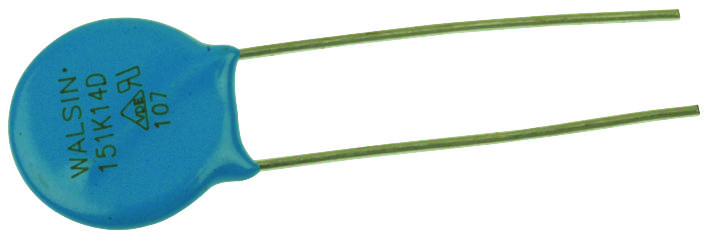

MULTICOMP PRO MCV151K14DS Metal Oxide Varistor
The MCV151K14DS is a Metal Oxide Varistor designed for high-performance transient voltage suppression and surge current withstand capability. It is typically used to protect electronic devices from voltage spikes caused by lightning strikes, switching inductive loads such as transformers and relays, and for safeguarding semiconductor components like diodes, SCRs, and transistors. The device exhibits excellent clamping characteristics, quick response to surge events, low standby power dissipation, and high reliability. Suitable applications include consumer electronics, industrial equipment, communications and networking systems, and test and measurement devices. It features a test current of 1mA DC for classification and can be applied continuously at the maximum system voltage between its terminals.
MULTICOMP PRO MCV151K14DS Metal Oxide Varistor Specifications:
- Maximum continuous system voltage: 112V AC/DC
- Varistor voltage at 1mA DC: 150V
- Peak surge current at 8/20 us waveform: 165A
- Maximum clamp voltage: 185V
- Energy rating: 10 Joules
- Capacitance: 66pF at 1KHz
- Response time: < 15ns
- Maximum energy at 2ms pulse: 10 Joules
- Operating ambient temperature: -55°C to +85°C
- Storage temperature: -55°C to +125°C
- Epoxy rating: UL 94V-0
- Material: Zinc oxide ceramic with bismuth trioxide additive
- Insulation resistance: 71,000 MΩ
- Lead type: Straight leads
- Dimensions: Diameter 14 mm, height approximately 10 mm
Buy the Metal Oxide Varistor Series 20D Surge Protection: 150V
Order the multicomp Metal Oxide Varistor for reliable surge protection in consumer, industrial, and communication electronics. With high surge current capacity and fast response time, it ensures your devices are protected against voltage spikes and transient surges. Easy to install and suitable for various applications, this varistor provides excellent clamping characteristics and high reliability. Buy online now to safeguard your electronic systems with premium-quality surge suppression components designed for durability and performance.
Get multicomp Metal Oxide Varistor 150V today—built for precision and long-lasting durability in surge protection applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCV151K14DS?
You can click on the BUY or RFQ button to purchase MCV151K14DS from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCV151K14DS?
You can download the MCV151K14DS datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCV151K14DS?
MULTICOMP PRO
