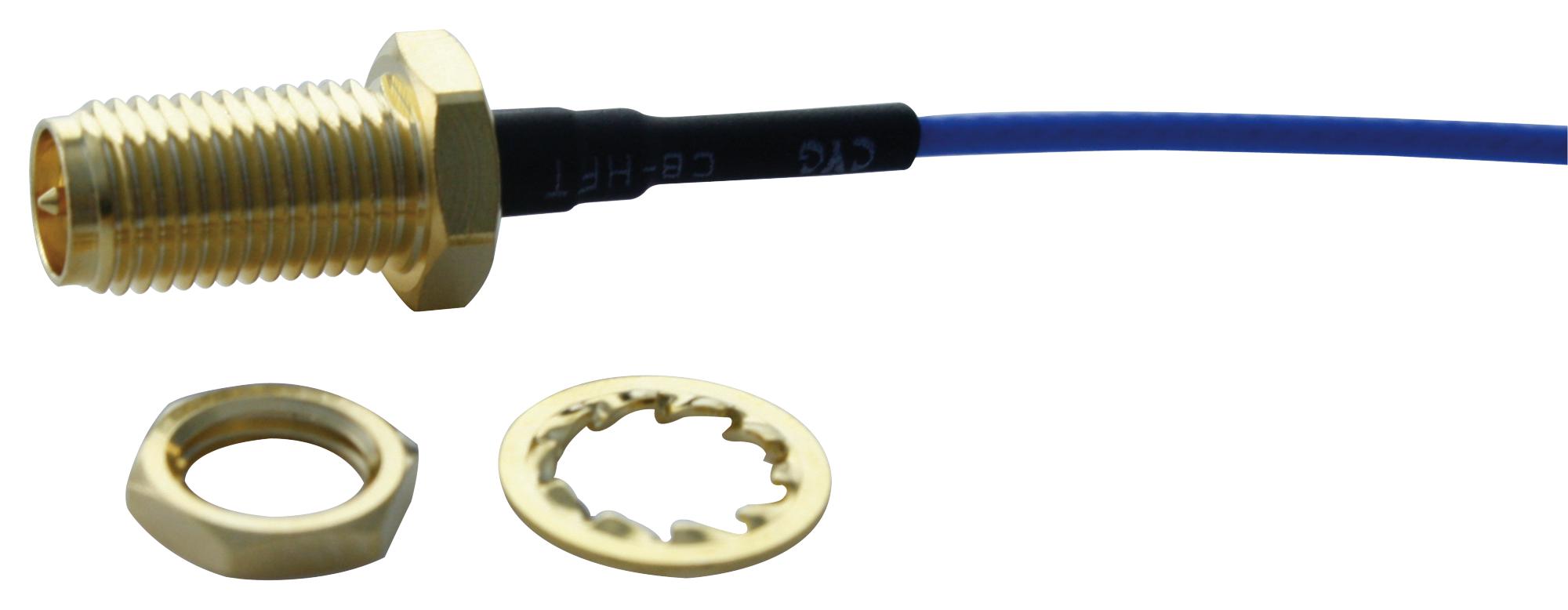

MULTICOMP-PRO MC001493 RF Connector
This RF connector combines a bulkhead RPSMA jack with a UFL connector, supporting DC to 6 GHz frequency range. It features impedance of 50 ohms, a maximum working voltage of 60 Vrms, dielectric withstand voltage of 200 Vrms, and an insulator resistance of 500MO. The assembly includes a 150mm blue cable with a 1.37mm diameter, mounted through a 1/4-36 UNS-2A thread. It offers low insertion loss of -1.2 dB, and VSWR of 1.65:1 max, making it suitable for high-frequency applications, ensuring reliable RF performance.
MULTICOMP-PRO MC001493 RF Connector Specifications:
- Impedance: 50 ohms
- Frequency Range: DC to 6 GHz
- Working Voltage: 60 Vrms Max.
- Dielectric Withstanding Voltage: 200 Vrms Max.
- Insulator Resistance: 500MO Min.
- VSWR: 1.65:1 Max.
- Insertion Loss: -1.2 dB Max.
- Cable Diameter: 1.37mm
- Cable Length: 150mm
- Connector Type: RPSMA bulkhead jack to UFL
- Mounting Hole: 1/4-36 UNS-2A thread
- Material: Copper with plastic insulator
- RoHS Compliant
Buy the Multicomp Series RF Connector: RPSMA Bulkhead Jack to UFL MC001493
Secure your RF connection needs by purchasing the Multicomp Series RPSMA Bulkhead Jack to UFL connector MC001493 online today. Designed for high-frequency applications supporting up to 6 GHz, this connector offers low insertion loss and excellent impedance matching. Its durable construction and precise mounting options ensure reliable signal integrity in your projects. Compatible with 1.37mm cables and featuring a 150mm length, this product is ideal for RF, wireless, and telecommunications systems. Get your reliable RF connector now with simple online ordering, fast delivery, and exceptional performance assurance.
Order your Multicomp Series RF connector MC001493 today and ensure high-quality RF performance for your projects with reliable connection standards.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MC001493?
You can click on the BUY or RFQ button to purchase MC001493 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MC001493?
You can download the MC001493 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MC001493?
MULTICOMP-PRO
